E 225 (CMXGRAM203301) (33CCA7ZS793) - Craftsman Rear-Engine Riding Mower, Electric (2021) Deck Parts Diagram

Rear-Engine Riding Mower, Electric

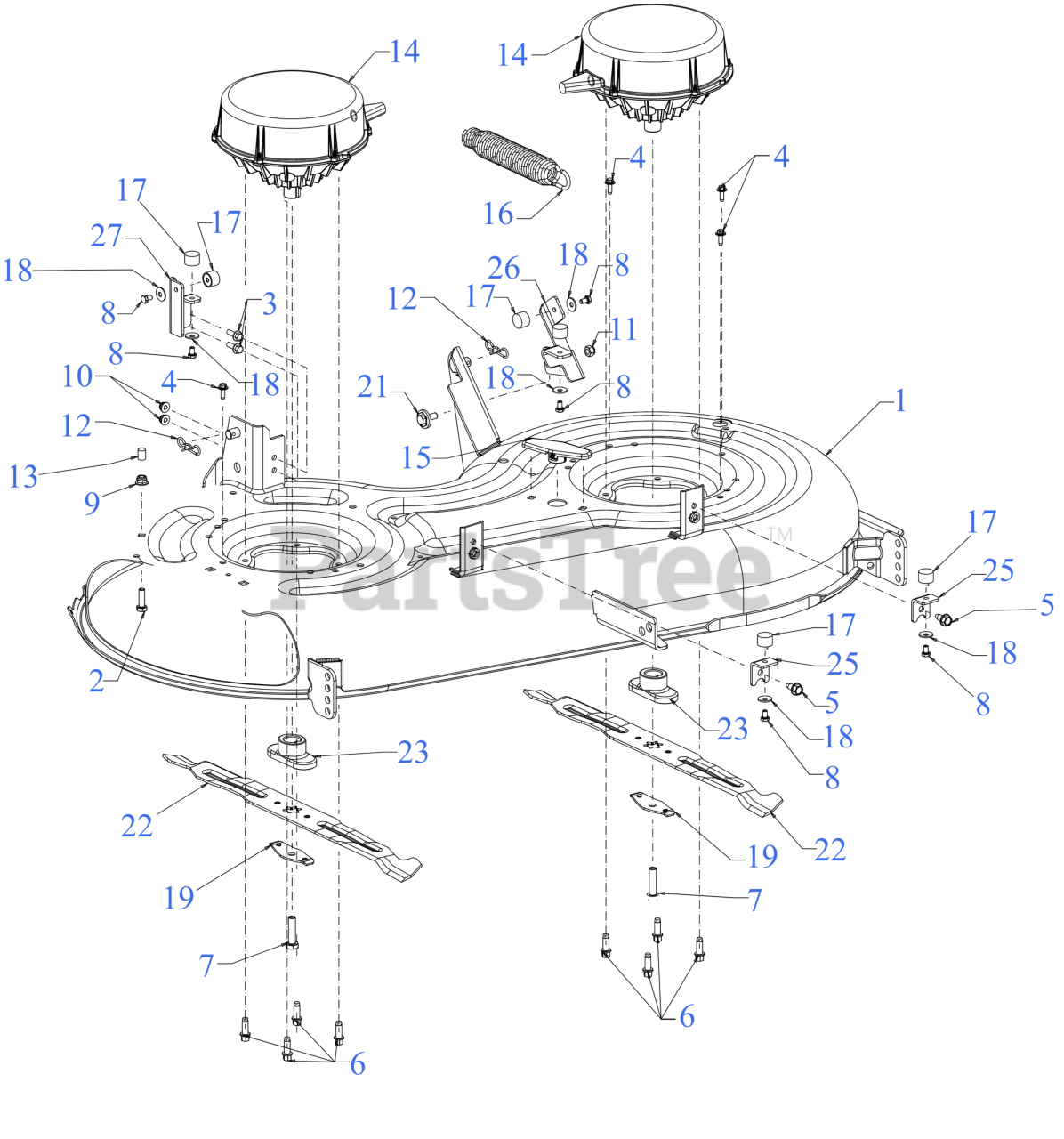

Deck Parts Diagram

  • Title

1

MTD 683-06214

42" DECK

Note: *CHOOSE COLOR WHEN ORDERING*

$350.99

$

Usually ships in 3-6 days

0

2

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

3

MTD 710-04666

SCREW 1/4-20 x .75 GR5

$6.99

$

In Stock, only 3 left!

0

4

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

5

MTD 710-06256

SCREW M8-1.25 x .750

$3.49

$

In Stock, Qty 20+

0

6

MTD 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, only 1 left!

0

7

MTD 710-1044

SCREW 3/8-24 x 1.50 GR8

$3.99

$

In Stock, only 1 left!

0

8

MTD 710-3209

SCREW M6-1.0X10MM GR8.8

$8.49

$

In Stock, Qty 13

0

9

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

10

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-0411

HEX NUT

$4.49

$

In Stock, Qty 20+

0

12

MTD 714-05005

BOW TIE COTTER PIN

$4.99

$

Usually ships in 3-6 days

0

13

MTD 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

14

MTD 724P04969

48V ELECTRIC DECK MOTOR

$625.99

$

Usually ships in 3-6 days

0

15

MTD 731-26430

DECK PLUG

$10.99

$

Usually ships in 3-6 days

0

16

MTD 732-05241A

LIFT ASSIST SPRING (SMALL)

$20.99

$

Usually ships in 3-6 days

0

17

MTD 735-04121

BUMPER

$3.99

$

Usually ships in 3-6 days

0

18

MTD 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

19

MTD 736-0524B

BLADE BELL SUPPORT
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

21

MTD 738-04439

SHOULDER SCREW

$3.99

$

In Stock, Qty 6

0

22

MTD 742P05003

21.18" MULCH BLADE

$35.99

$

Usually ships in 3-6 days

0

22

MTD 490-110-C207

Cub Cadet 42" BLADE SET

Note: Retail Package Part

$67.99

$

In Stock, Qty 12

0

25

MTD 783-09774

UPSTOP BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$5.99

$

Usually ships in 3-6 days

0

26

MTD 783-10048

UPSTOP BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$18.99

$

Usually ships in 3-6 days

0

27

MTD 783-10049

UPSTOP BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$13.99

$

Usually ships in 3-6 days

0
