E 20SPWM48K (80093156-00) - Snapper 48V 20" Self-propelled Walk-Behind Mower Walkmower Parts Diagram

48V 20" Self-propelled Walk-Behind Mower

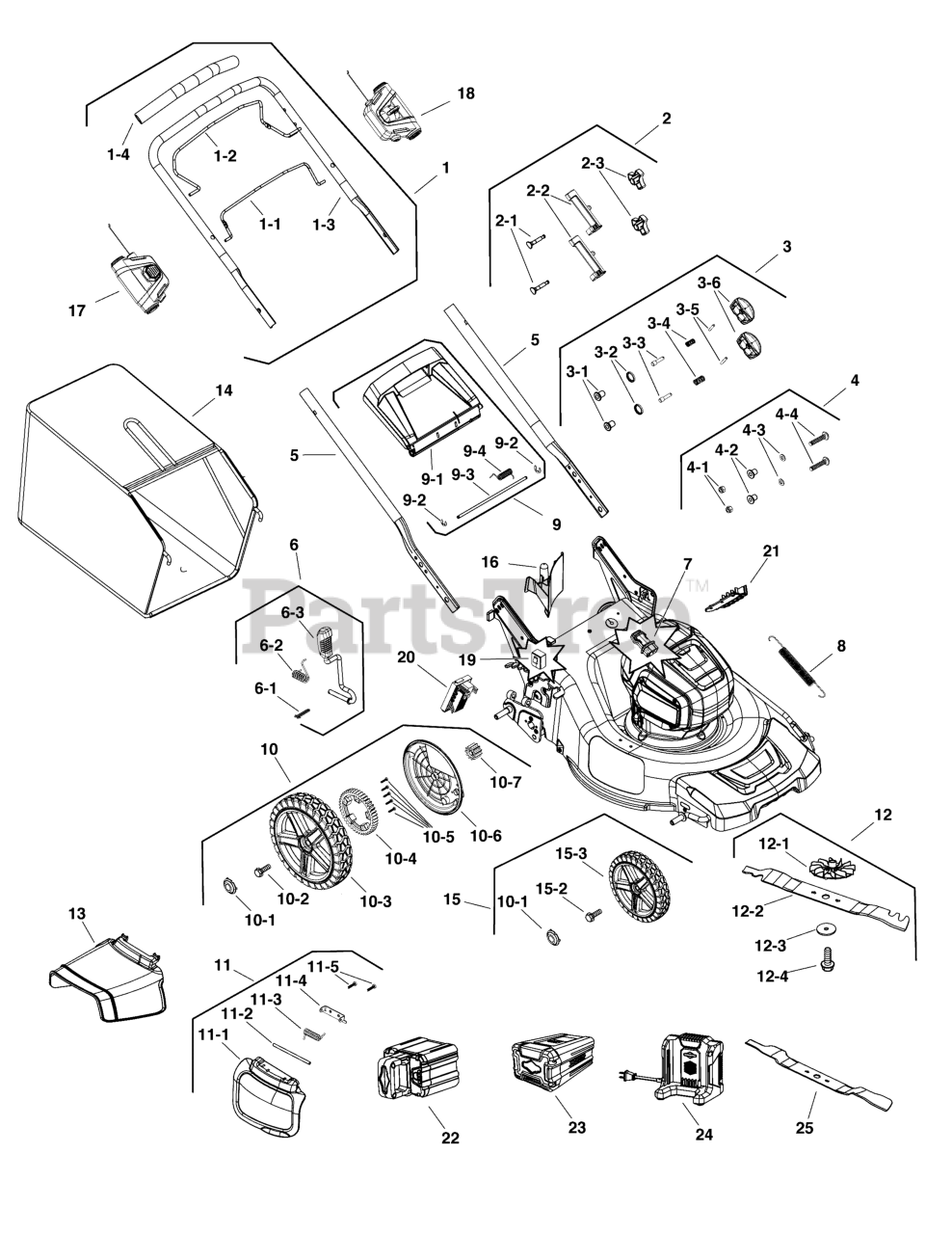

Walkmower Parts Diagram

  • Title

1

Snapper 84001927

KIT, Upper Handle

Note: Contains Ref Nos 1-1 through 1-4)

$133.99

$

Usually ships in 2-12 days

0

1-1

Snapper 84006261

BAIL ASSEMBLY

$

$

Currently unavailable

1-2

LEVER, Self-Propelled

$

$

Not available

1-3

HANDLE, Upper

$

$

Not available

1-4

GRIP, foam

$

$

Not available

2

Snapper 84001954

KIT, Mounting Hardware

Note: Contains Ref Nos 2-1 through 2-3)

$16.99

$

In Stock, only 1 left!

0

2-1

BOLT

$

$

Not available

2-2

SLEEVE

$

$

Not available

2-3

KNOB, M8

$

$

Not available

3

Snapper 84001929

KIT, Knob, Lower Handle

Note: Contains Ref Nos 3-1 through 3-6)

$19.99

$

Usually ships in 2-12 days

0

3-1

INSERT

$

$

Not available

3-2

GASKET

$

$

Not available

3-3

POST

$

$

Not available

3-4

SPRING

$

$

Not available

3-5

PIN

$

$

Not available

3-6

KNOB, Handle

$

$

Not available

4

Snapper 84001930

KIT, Hardware, Lower Handle

Note: Contains Ref Nos 4-1 through 4-4)

$9.99

$

Usually ships in 2-12 days

0

4-1

NUT, M8

$

$

Not available

4-2

INSERT

$

$

Not available

4-3

WASHER, Flat

$

$

Not available

4-4

BOLT

$

$

Not available

5

Snapper 84001931

KIT, Lower Handle

$34.99

$

Usually ships in 2-12 days

0

6

Snapper 84001956

KIT, Height Adjust

Note: Contains Ref Nos 6-1 through 6-3)

$20.99

$

Usually ships in 2-12 days

0

6-1

PIN, Cotter

$

$

Not available

6-2

SPRING

$

$

Not available

6-3

HANDLE, Height Adjust

$

$

Not available

7

Snapper 596798

KEY, Safety

$5.49

$

Usually ships in 2-12 days

0

8

Snapper 84002267

SPRING, Tension, Lift

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 84001937

KIT, Rear Cover

Note: Contains Ref Nos 9-1 through 9-4)

$62.99

$

Usually ships in 2-12 days

0

9-1

COVER, Rear

$

$

Not available

9-2

WASHER, Split

$

$

Not available

9-3

ROD, Rear Cover

$

$

Not available

9-4

SPRING

$

$

Not available

10

Snapper 84001928

KIT, Rear Wheel, 10"

Note: Contains Ref Nos 10-1 through 10-7)

$52.99

$

Usually ships in 2-12 days

0

10-1

Snapper 84006264

HUBCAP

$

$

Currently unavailable

10-2

BOLT, Hex Flange, M8 x 16

$

$

Not available

10-3

WHEEL, Rear, 10"

$

$

Not available

10-4

Snapper 84006265

GEAR, Drive

$

$

Currently unavailable

10-5

SCREW, Socket Head, ST4.2 x 20

$

$

Not available

10-6

COVER, Dust

$

$

Not available

10-7

GEAR, Drive

$

$

Not available

11

Snapper 84001938

KIT, Cover, Side Discharge

Note: Contains Ref Nos 11-1 through 11-5)

$21.99

$

Usually ships in 2-12 days

0

11-1

COVER, Side Discharge

$

$

Not available

11-2

ROD, Side Discharge

$

$

Not available

11-3

SPRING, Torsion

$

$

Not available

11-4

BRACKET

$

$

Not available

11-5

BOLT, Hex Flange, M6 X 12

$

$

Not available

12

Snapper 84001939

KIT, Mower Blade, 20"

Note: Contains Ref Nos 12-1 through 12-4)

$53.99

$

Usually ships in 2-12 days

0

12-1

Snapper 84006266

FAN

$

$

Currently unavailable

12-2

BLADE, Mower, 20"

$

$

Not available

12-3

WASHER

$

$

Not available

12-4

Snapper 84006267

BOLT, Flange

$

$

Currently unavailable

13

Snapper 84001940

DEFLECTOR, Side Discharge

$20.99

$

Usually ships in 2-12 days

0

14

Snapper 84001942

GRASS CATCHER ASSEMBLY

$204.99

$

Usually ships in 2-12 days

0

15

Snapper 84001943

KIT, Front Wheel, 8"

Note: Contains Ref Nos 10-1, 15-2 & 15-3)

$37.99

$

Usually ships in 2-12 days

0

10-1

Snapper 84006264

HUBCAP

$

$

Currently unavailable

15-2

BOLT, Hex Flange, M8 x 16

$

$

Not available

15-3

WHEEL, 8"

$

$

Not available

16

Snapper 84001944

PLUG, Mulching

$32.99

$

Usually ships in 2-12 days

0

17

Snapper 84001945

CONTROL PANEL ASSEMBLY

$69.99

$

In Stock, only 1 left!

0

18

Snapper 84001950

SPEED CONTROL ASSEMBLY

$82.99

$

Usually ships in 2-12 days

0

19

Snapper 84001946

SWITCH, Safety

$14.99

$

Usually ships in 2-12 days

0

20

Snapper 84006269

BOARD, Circuit

$

$

Currently unavailable

21

Snapper 84006268

TERMINAL, Battery

$

$

Currently unavailable

22

Snapper 1697337

* BATTERY, 2.0, 48V

Note: (Optional)

$

$

Currently unavailable

23

Snapper 1697338

* BATTERY, 5.0, 48V

Note: (Optional)

$

$

Currently unavailable

24

Snapper 1697339

* BATTERY CHARGER, 48V

Note: (Optional)

$

$

Currently unavailable

25

Snapper 84004272

MOWER BLADE, Mulching

Note: (Optional)

$

$

Currently unavailable
