E 200 (UT-22088-A) - Homelite Edger Engine Internals Parts Diagram

Edger

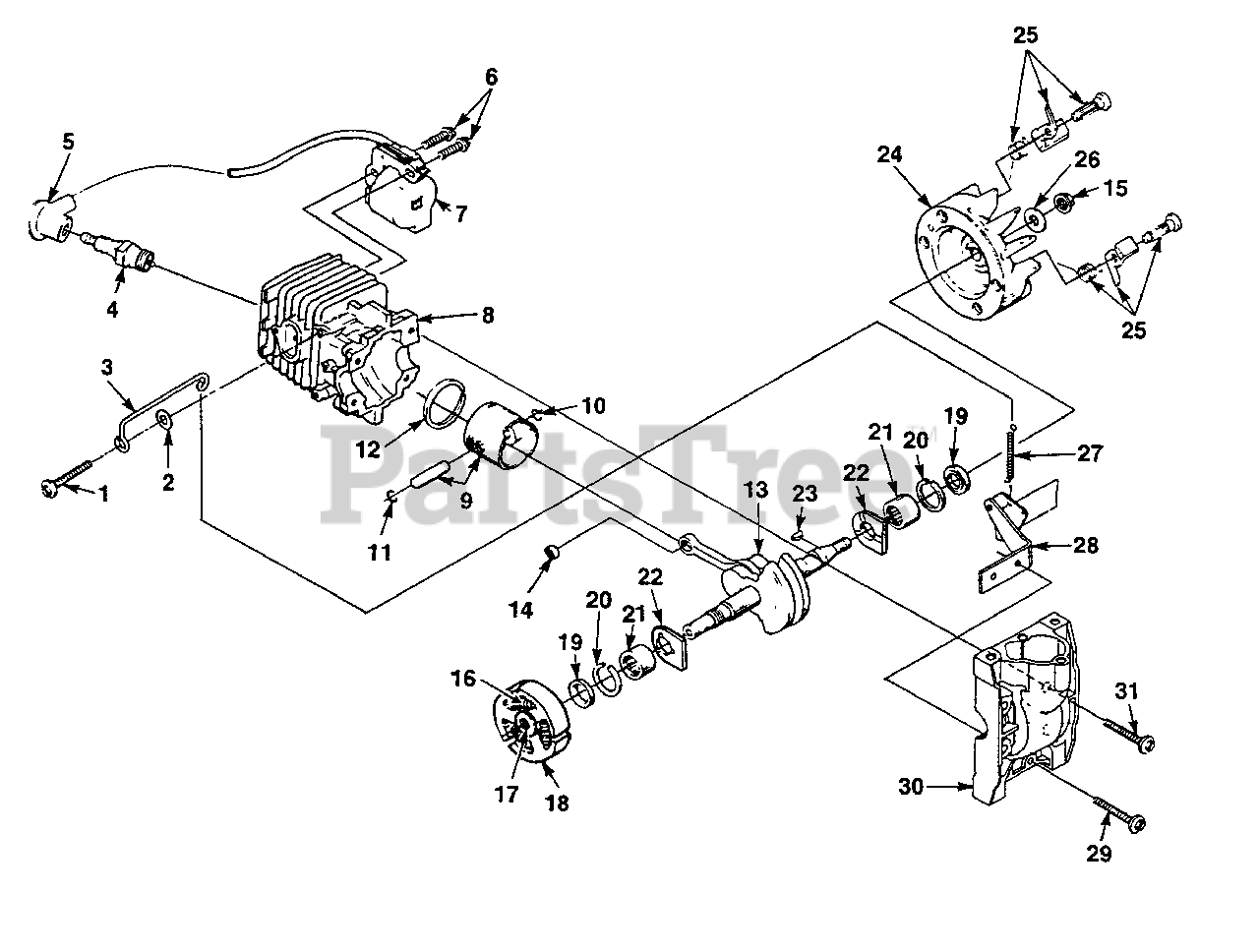

Engine Internals Parts Diagram

  • Title
1

Homelite 82459

SCREW-Hex Washer Hd. (10-24 x 1/2")

$

$

Not available

2

Homelite 04462

WASHER-Flat

$7.49

$

Usually ships in 3-7 days

0

3

Homelite 03856

BRACKET-Spring

$

$

Not available

4

Homelite 79252

SPARK PLUG (RDJ-7Y)
(Superseded to UP03883)

$5.49

$

In Stock, only 3 left!

0

5

Homelite A33055

TERMINAL-Spark Plug

$

$

Not available

6

Homelite 82540

SCREW-Thd. Form (8-32 x 1)

$2.49

$

Usually ships in 3-7 days

0

7

Homelite 94711CS

MODULE-Ignition

$

$

Not available

8

Homelite 024854

CYLINDER

$

$

Not available

9

Homelite A98967A

PISTON & PIN ASSEMBLY
(Superseded to UP07037)

Note: Includes Item Nos. 10-12.

$

$

Not available

10

Homelite 65261

RING-Retaining

$

$

Not available

11

Homelite 98096

RING-Retaining

$

$

Not available

12

Homelite 93165

RING-Piston

$

$

Not available

13

Homelite A01574

CRANKSHAFT

$

$

Currently unavailable

14

Homelite 02035

BEARING-Needle

$

$

Not available

15

Homelite 81229

NUT-Lock
(Superseded to 81229A)

$4.99

$

Usually ships in 3-7 days

0

16

Homelite 03891

SPRING-Clutch

$

$

Not available

17

Homelite 79221

SPIDER-Clutch

$30.99

$

Usually ships in 3-7 days

0

18

Homelite 792221

SHOE-Clutch
(Superseded to 04904)

$

$

Not available

19

Homelite 94638

SEAL-Shaft
(Superseded to 09108)

$

$

Not available

20

Homelite 69407

SPACER-Seal
(Superseded to 09108)

$

$

Not available

21

Homelite 12530

BEARING-Needle

$

$

Not available

22

Homelite 02464

WASHER-Thrust

$

$

Not available

23

Homelite 69250

KEY-Woodruff

$

$

Not available

24

Homelite A04347

ROTOR & PAWL ASSEMBLY

Note: Includes Item #25.

$

$

Currently unavailable

25

Homelite A70285E

STARTER PAWL KIT

$101.99

$

Usually ships in 3-7 days

0

26

Homelite 84065

WASHER-Flat
(Superseded to UP04241)

$

$

Not available

27

Homelite 03854

SPRING-Governor

$

$

Not available

28

Homelite A04348

AIR VANE & BRACKET ASSY.

$

$

Currently unavailable

29

Homelite 82474

SCREW-Thd. Rolling

$

$

Not available

30

Homelite 037261

CRANKCASE

$

$

Not available

31

Homelite 82567

SCREW-Truss Hd. (10-24)

$

$

Not available
