E 200 (UT-22088-A) - Homelite Edger Carburetor Parts Diagram

Edger

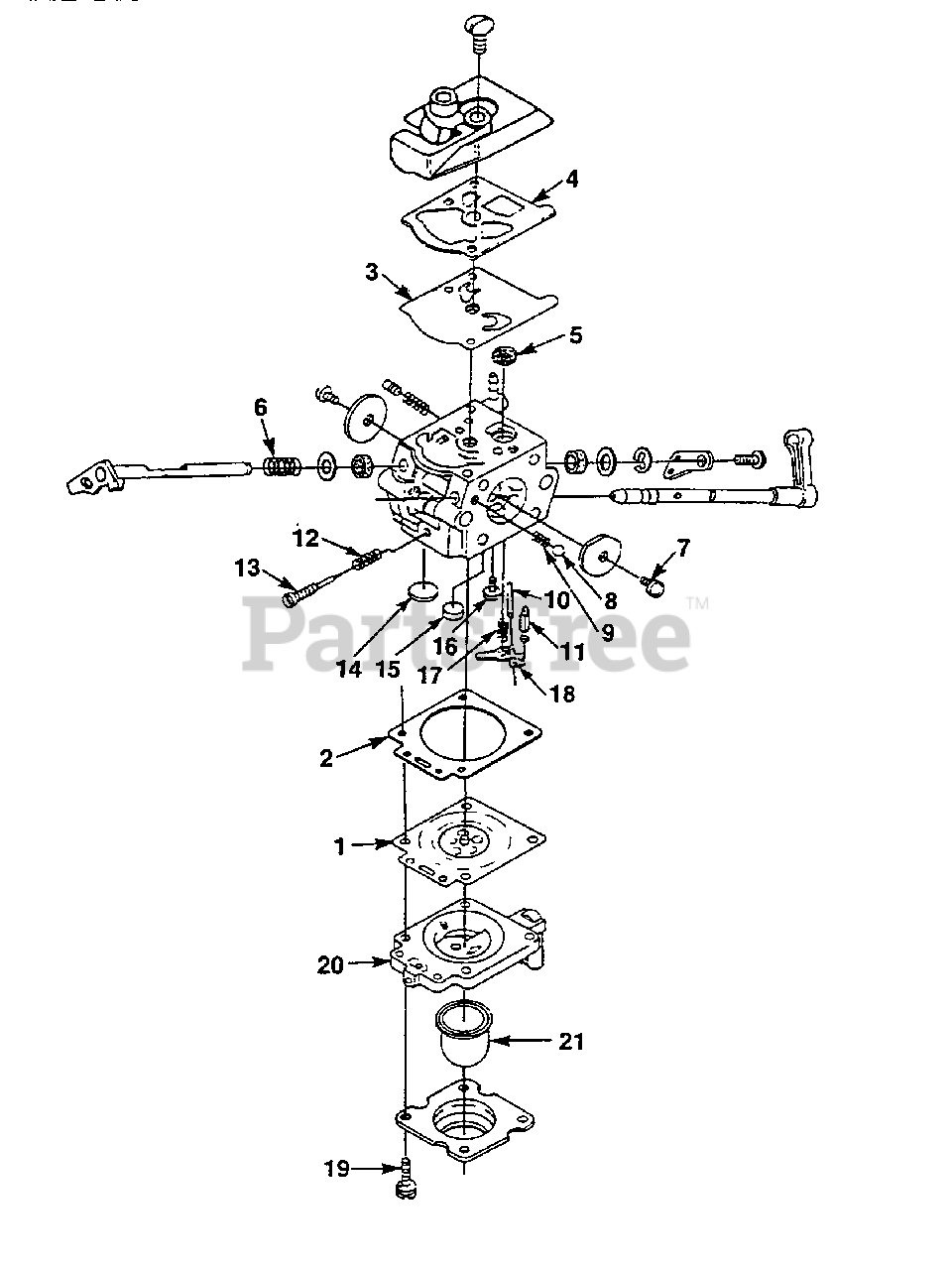

Carburetor Parts Diagram

  • Title

Homelite A04657

WALBRO

$

$

Not available

1

Homelite A04656

Repair Kit

$

$

Not available

1

Homelite A00285A

Gasket/Diaphragm Kit

$

$

Not available

2

Homelite A04656

Repair Kit

$

$

Not available

2

Homelite A00285A

Gasket/Diaphragm Kit

$

$

Not available

3

Homelite A04656

Repair Kit

$

$

Not available

3

Homelite A00285A

Gasket/Diaphragm Kit

$

$

Not available

4

Homelite A04656

Repair Kit

$

$

Not available

4

Homelite A00285A

Gasket/Diaphragm Kit

$

$

Not available

5

Homelite A04656

Repair Kit

$

$

Not available

6

Homelite A04656

Repair Kit

$

$

Not available

7

Homelite A04656

Repair Kit

$

$

Not available

8

Homelite A04656

Repair Kit

$

$

Not available

9

Homelite A04656

Repair Kit

$

$

Not available

10

Homelite A04656

Repair Kit

$

$

Not available

11

Homelite A04656

Repair Kit

$

$

Not available

12

Homelite A04656

Repair Kit

$

$

Not available

13

Homelite A04656

Repair Kit

$

$

Not available

14

Homelite A04656

Repair Kit

$

$

Not available

15

Homelite A04656

Repair Kit

$

$

Not available

16

Homelite A04656

Repair Kit

$

$

Not available

17

Homelite A04656

Repair Kit

$

$

Not available

18

Homelite A04656

Repair Kit

$

$

Not available

19

Homelite A04656

Repair Kit

$

$

Not available

20

Homelite A01199A

Primer Base

$18.99

$

In Stock, only 1 left!

0

21

Homelite 01201

Primer Bulb
(Superseded to UP04802)

$8.49

$

In Stock, only 4 left!

0
