E 1502 (UT-22085-1) - Homelite Edger Edger Parts Diagram

Edger

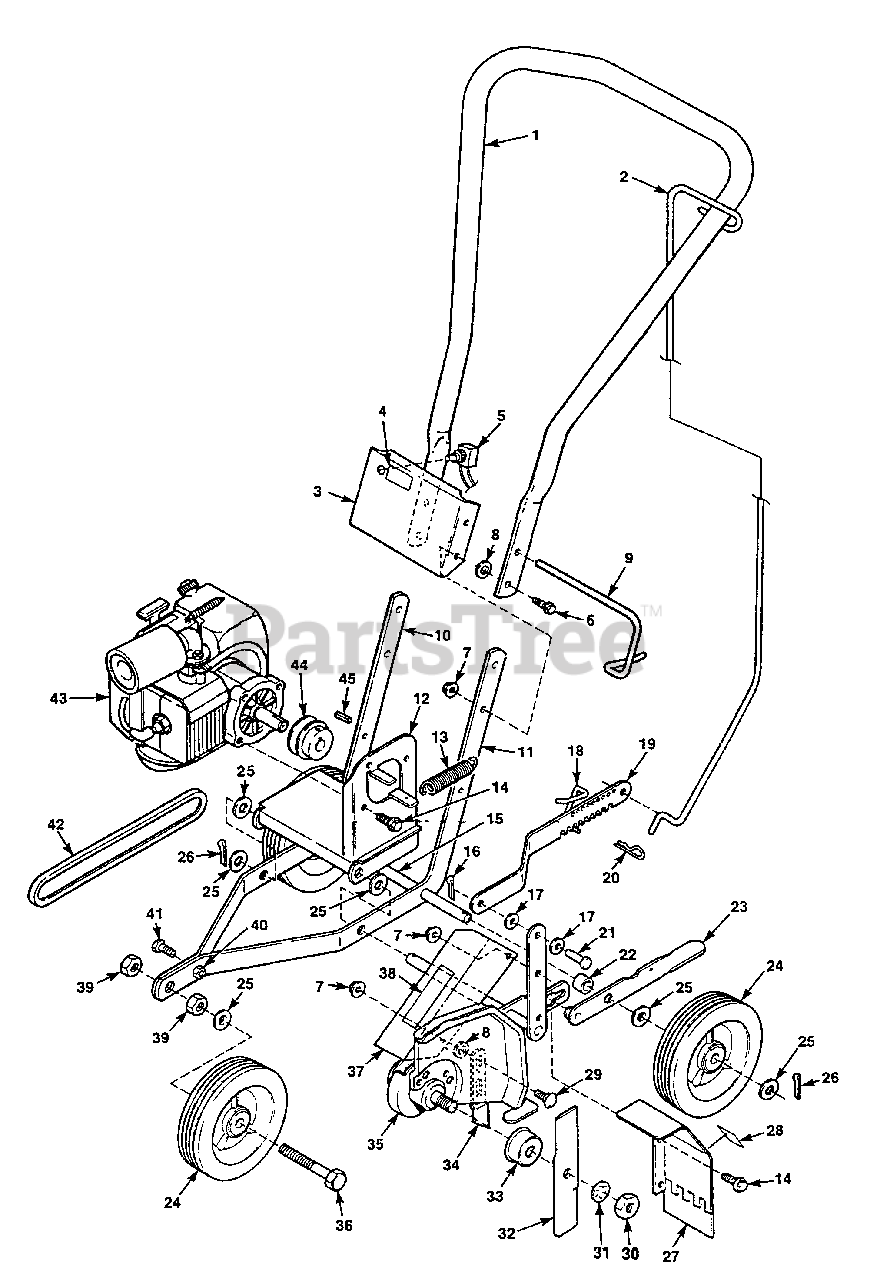

Edger Parts Diagram

  • Title

1

Homelite 012391

HANDLE- Edger

$

$

Currently unavailable

2

Homelite 01244

CONTROL- Depth

$

$

Not available

3

Homelite A0126017

COVER- Handle

Note: Includes Item #4

$

$

Currently unavailable

4

Homelite 98180

DECAL- Stop

$

$

Not available

5

Homelite 0126007

SWITCH- Off

$

$

Not available

6

Homelite 88078

BOLT- (1/4-20 x 1")

$

$

Not available

7

Homelite JA445768

NUT- Flange (1/4-20)

$

$

Not available

8

Homelite 84004

WASHER- Flat (1/4")
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

9

Homelite 0126001

HANDLE- Quick Release

$

$

Currently unavailable

10

Homelite 0126013

FRAME- R.H. Side

$

$

Currently unavailable

11

Homelite 0126012

FRAME- L.H. Side

$

$

Not available

12

Homelite 0126015

BRACKET- Engine mounting

$

$

Not available

13

Homelite 0126016

SPRING- Belt

$

$

Currently unavailable

14

Homelite 82335

BOLT- Sems hd. (1/4-20 x 5/8")
(Superseded to UP06708)

$4.49

$

Usually ships in 3-7 days

0

15

Homelite 0126014

AXLE- Rear

$

$

Currently unavailable

16

Homelite JA460024

PIN- Cotter

$

$

Currently unavailable

17

Homelite 840011

WASHER- Flat (5/16")
(Superseded to UP07173)

$

$

Not available

18

Homelite 0126004

RETAINER- Ratchet

$

$

Currently unavailable

19

Homelite 0126003

CONTROL- Ratchet Depth

$

$

Not available

20

Homelite JA460312

PIN- Hair

$

$

Not available

21

Homelite 0126005

PIN- Clevis

$

$

Not available

22

Homelite 0125908

SPACER- Axle

$

$

Currently unavailable

23

Homelite 0126002

PEDAL- Depth Control

$

$

Not available

24

Homelite 01251

WHEEL

$

$

Not available

25

Homelite 84091

WASHER

$

$

Not available

26

Homelite JA460014

PIN- Cotter

$

$

Not available

27

Homelite A0125919

FLAP- Debris

Note: Includes Item #28

$

$

Not available

28

Homelite 01255

DECAL- Safety

$

$

Not available

29

Homelite JA441664

BOLT- Corr. (1/4-20 x 5/8")

$

$

Currently unavailable

30

Homelite JA443828

NUT- Jam (5/8-18)

$

$

Currently unavailable

31

Homelite 83095

WASHER- Int. tooth (5/8")

$

$

Currently unavailable

32

Homelite 01246

BLADE- Edger

$

$

Not available

33

Homelite 0126006

WASHER- Dust Shield

$

$

Not available

34

Homelite 0126008

FINGER- Guide

$

$

Currently unavailable

35

Homelite 0126009

HEAD- Cutter

$

$

Currently unavailable

36

Homelite JA400418

BOLT- (1/2-13 x 3")

$

$

Currently unavailable

37

Homelite A0126010

GUARD- Pulley

Note: Includes Item #38

$

$

Not available

38

Homelite 01249

DECAL- Warning

$

$

Not available

39

Homelite JA444758

NUT- Lock (1/2-13)

$

$

Currently unavailable

40

Homelite JA444718

NUT- Lock (5/16-18)

$

$

Not available

41

Homelite 80083

BOLT- (5/16-18 x 3/4")

$

$

Not available

42

Homelite 01248

BELT- Drive

$

$

Not available

43

ENGINE

$

$

Not available

44

Homelite 0126011

PULLEY- Engine

$

$

Not available

45

Homelite 76412

KEY- Square

$

$

Not available
