E 150 (CMXGRAM1130049) (33BA27JD793) - Craftsman Rear-Engine Riding Mower, Electric (2021) Seat Parts Diagram

Rear-Engine Riding Mower, Electric

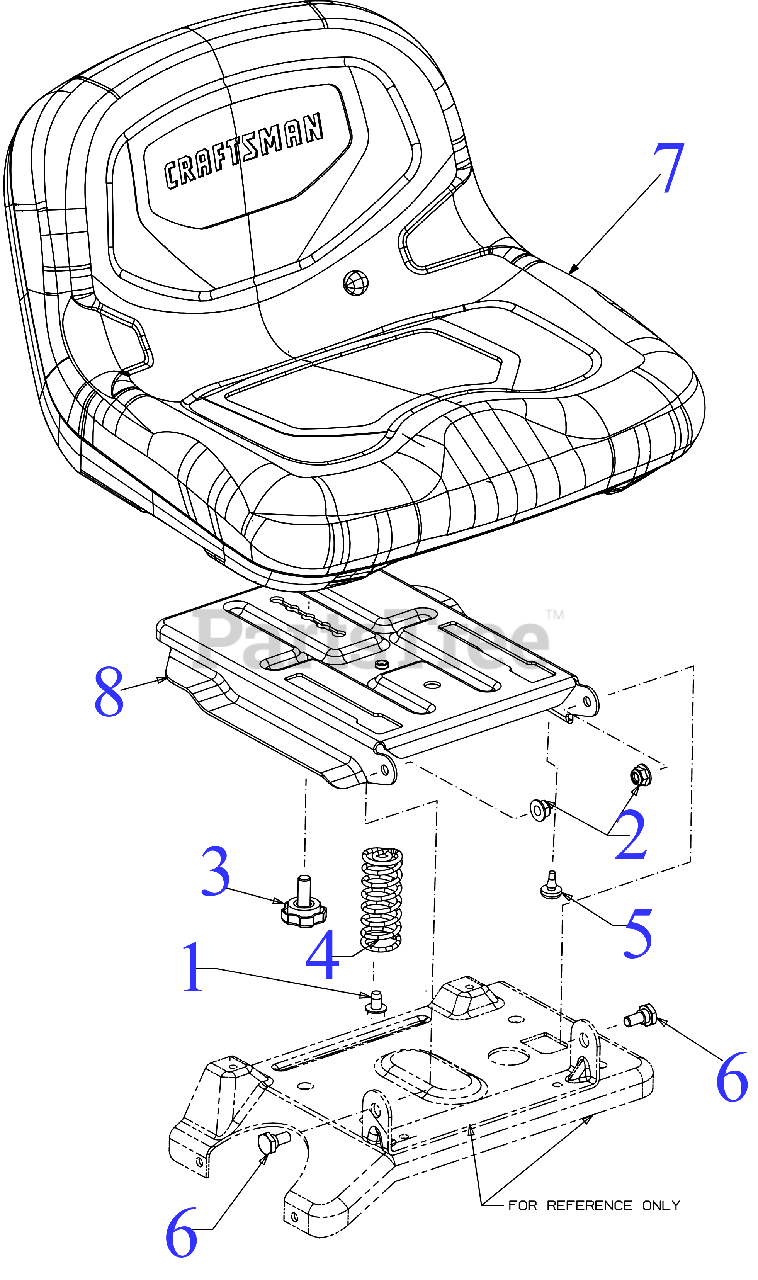

Seat Parts Diagram

  • Title

1

MTD 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

2

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-04009A

SEAT ADJUSTMENT KNOB

$16.99

$

In Stock, only 2 left!

0

4

MTD 732-04905

SEAT SPRING

$3.99

$

In Stock, only 2 left!

0

5

MTD 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

6

MTD 938-0140

SHOULDER SCREW .437 DIA x .180
(Superseded to 738-0140)

$

$

Not available

7

MTD 757-05447

MED BACK SEAT, BLACK (3PT)

$231.99

$

Usually ships in 3-6 days

0

8

MTD 783-07213A-0637

MANUAL SEAT ADJUSTMENT BRACKET

$33.99

$

In Stock, only 2 left!

0
