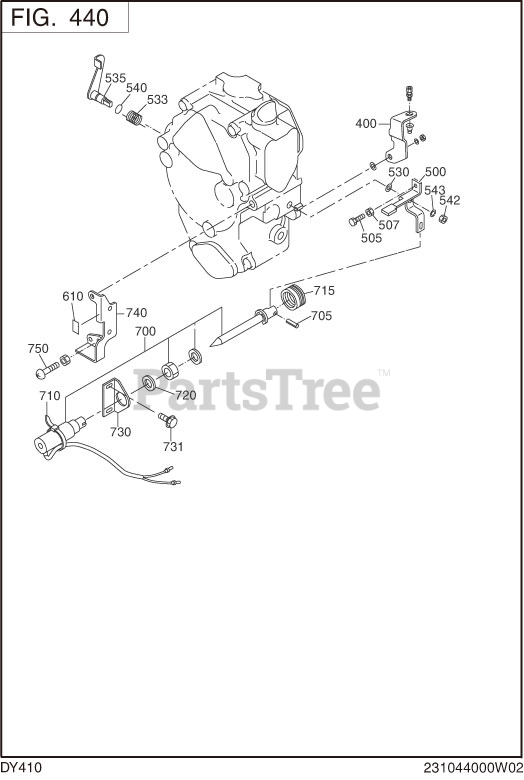

DY410YS7010 (DY41) - Subaru Robin Engine, Diesel 440 Governor Parts Diagram

Engine, Diesel

440 Governor Parts Diagram

  • Title

400

Subaru Robin 228-44270-01

WIRE BRACKET 9

$8.89

$

Usually ships in 2-12 days

0

500

Subaru Robin 228-45741-01

STOP LEVER CP

$46.50

$

Usually ships in 2-12 days

0

505

Subaru Robin 001-66052-00

BOLT

$0.99

$

Usually ships in 2-12 days

0

507

Subaru Robin 002-17050-00

NUT

Note: Remarks: M5X0.8X4H.

$0.99

$

Usually ships in 2-12 days

0

530

Subaru Robin 023-00800-10

SPACER

$2.49

$

Usually ships in 2-12 days

0

533

Subaru Robin 228-46003-03

RETURN SPRING(STOP)

$4.49

$

Usually ships in 2-12 days

0

535

Subaru Robin 228-45026-11

STOPPER CP

$157.48

$

Usually ships in 2-12 days

0

540

Subaru Robin 006-26100-50

O RING

$0.99

$

Usually ships in 2-12 days

0

542

Subaru Robin 002-18080-00

NUT

$0.99

$

In Stock, only 1 left!

0

543

Subaru Robin 003-20080-00

SPRING WASHER

Note: Remarks: 8.2DX15.4DX2T.

$0.99

$

In Stock, only 1 left!

0

610

Subaru Robin 228-92112-03

LABEL(OPERATION)

$4.49

$

Usually ships in 2-12 days

0

700

Subaru Robin 228-75004-10

SOLENOID AY

$

$

Not available

705

Subaru Robin 005-19031-20

SPRING PIN

$0.99

$

Usually ships in 2-12 days

0

710

Subaru Robin 056-30000-40

WIRE BAND

Note: Remarks: 3.6BX1.2TX146L.

$

$

Not available

715

Subaru Robin 228-75013-03

BOOT(PLANGER)

$29.23

$

Usually ships in 2-12 days

0

720

Subaru Robin 023-01800-50

SPACER

$2.49

$

Usually ships in 2-12 days

0

730

Subaru Robin 228-75820-01

BRACKET,SOLENOID 2

$23.21

$

Usually ships in 2-12 days

0

731

Subaru Robin 011-00600-10

FLANGE BOLT

Note: Remarks: M6X1.0X14DX8L.

$2.99

$

In Stock, only 4 left!

0

740

Subaru Robin 228-75911-01

BRACKET 2 CP,BASE

$13.94

$

Usually ships in 2-12 days

0

750

Subaru Robin 004-31063-50

SCREW,PANHEAD

Note: Start Code: 5789. Remarks: M6X1.0X35L.

$0.99

$

In Stock, only 1 left!

0

750

Subaru Robin 004-31063-00

SCREW,PANHEAD

Note: End Code: 5788. Remarks: M6X1.0X30L.

$0.99

$

Usually ships in 2-12 days

0
