Subaru Robin DY350D80010 (DY35) - Subaru Robin Engine, Diesel 600 Fuel & Lubricant Parts Lookup with Diagrams

10

Subaru Robin 228-60102-41

FUEL TANK CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.5L MINERAL BLUE.

$145.39

$

Usually ships in 2-12 days

20

Subaru Robin 229-91701-03

LABEL(TRADE MARK)

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 50X95.

$3.99

$

Usually ships in 2-12 days

25

Subaru Robin 228-91908-03

LABEL(INSTRUCTION)

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 135X75 ENGLISH.

$4.49

$

Usually ships in 2-12 days

30

Subaru Robin 043-04300-15

FUEL TANK CAP CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 42.5DX68DX14H.

$

Not available 

40

Subaru Robin 064-13600-10

FUEL FILTER

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 36DX46DX43H.

$8.99

$

Usually ships in 2-12 days

70

Subaru Robin 228-61601-11

TANK BRACKET 1 CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$29.23

$

Usually ships in 2-12 days

80

Subaru Robin 228-61701-11

TANK BRACKET 2 CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$29.23

$

Usually ships in 2-12 days

90

Subaru Robin 228-65510-01

TANK BAND CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$12.89

$

Usually ships in 2-12 days

95

Subaru Robin 001-13082-00

BOLT AND WASHER AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X20L W/SW.

$1.49

$

Usually ships in 2-12 days

96

Subaru Robin 001-13081-80

BOLT AND WASHER AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X18L W/SW.

$0.99

$

Usually ships in 2-12 days

100

Subaru Robin 228-65601-11

PIN CP,TANK BAND

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.06

$

Usually ships in 2-12 days

110

Subaru Robin 228-65001-13

BAND GUIDE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$2.49

$

Usually ships in 2-12 days

120

Subaru Robin 228-65002-03

FELT

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.49

$

Usually ships in 2-12 days

131

085-10408-30

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.5DX9DX90L. Interchangable with 085-14500-00.

$

Not available 

141

Subaru Robin 217-75002-03

PURSE LOCK(B)

Note: End Code: 1520. Start Date: 3/10/1982 0:00:00. Start Date: 2/28/1991 0:00:00. Remarks: 20DX2DX24L.

$0.99

$

In Stock, only 1 left!

150

Subaru Robin 085-00500-40

VINYL PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5DX8DX120L. Interchangable with 085-00500-00.

$15.99

$

Usually ships in 2-12 days

160

Subaru Robin 056-10800-10

HOSE CLAMP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 7.8DX6BX0.6T.

$1.99

$

Usually ships in 2-12 days

170

Subaru Robin 001-66064-50

BOLT

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

180

Subaru Robin 002-18060-00

NUT

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

185

Subaru Robin 002-38060-00

FLANGE NUT

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M6X1.0X13DX6H.

$1.99

$

In Stock, Qty 9

200

Subaru Robin 056-10800-10

HOSE CLAMP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 7.8DX6BX0.6T.

$1.99

$

Usually ships in 2-12 days

220

Subaru Robin 003-10080-00

WASHER

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8.5DX16DX1.2T.

$0.99

$

In Stock, only 1 left!

300

Subaru Robin 228-63120-10

INJECTION PUMP AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$418.99

$

Usually ships in 2-12 days

300

Subaru Robin 228-63102-08

PLUNGER AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$243.99

$

Usually ships in 2-12 days

300

Subaru Robin 228-63103-08

DELIVERY VALVE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$39.30

$

Usually ships in 2-12 days

300

Subaru Robin 222-63104-08

SPRING DELIVERY VALV

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$6.80

$

Usually ships in 2-12 days

300

Subaru Robin 222-63105-08

GASKET

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$7.21

$

Usually ships in 2-12 days

300

228-63125-08

O-RING

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$

Not available 

310

Subaru Robin 228-65017-03

GASKET(INJ.PUMP)

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.1.

$4.99

$

Usually ships in 2-12 days

311

Subaru Robin 228-65022-03

GASKET(INJ.PUMP)

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.2.

$4.99

$

Usually ships in 2-12 days

312

Subaru Robin 228-65018-03

GASKET(INJ.PUMP)

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: T=0.3.

$2.99

$

Usually ships in 2-12 days

315

Subaru Robin 228-66501-00

EYE BOLT AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$27.80

$

Usually ships in 2-12 days

317

Subaru Robin 228-66601-03

GASKET(PUMP)

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 12.2DX15.4DX1.5T.

$2.49

$

Usually ships in 2-12 days

320

Subaru Robin 228-63201-10

NOZZLE AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$471.99

$

Usually ships in 2-12 days

320

Subaru Robin 228-63211-08

NOZZLE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$338.99

$

Usually ships in 2-12 days

330

Subaru Robin 228-65004-03

GASKET(NOZZLE)

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 7.5DX16DX1.5T.

$1.49

$

Usually ships in 2-12 days

340

Subaru Robin 243-66001-01

BRACKET CP,NOZZLE 1

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.99

$

Usually ships in 2-12 days

360

Subaru Robin 002-18080-00

NUT

Note: End Code: 2800. Start Date: 3/10/1982 0:00:00. Start Date: 8/31/1994 0:00:00. Remarks: M8X1.25X6.5H.

$0.99

$

In Stock, only 1 left!

360

Subaru Robin 002-18080-00

NUT

Note: Start Code: 2801. Start Date: 9/1/1994 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X6.5H.

$0.99

$

In Stock, only 1 left!

370

Subaru Robin 003-20080-00

SPRING WASHER

Note: End Code: 2800. Start Date: 3/10/1982 0:00:00. Start Date: 8/31/1994 0:00:00. Remarks: 8.2DX15.4DX2T.

$0.99

$

In Stock, only 1 left!

370

Subaru Robin 003-20080-00

SPRING WASHER

Note: Start Code: 2801. Start Date: 9/1/1994 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8.2DX15.4DX2T.

$0.99

$

In Stock, only 1 left!

400

Subaru Robin 228-62106-10

FUEL FILTER AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$84.99

$

Usually ships in 2-12 days

400

Subaru Robin 243-62101-08

CUP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$16.99

$

In Stock, only 1 left!

400

Subaru Robin 228-62108-08

RING NUT

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$10.88

$

Usually ships in 2-12 days

400

Subaru Robin 228-62109-08

O RING

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$10.99

$

Usually ships in 2-12 days

400

Subaru Robin 228-62110-08

ELEMENT

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$31.99

$

In Stock, only 1 left!

410

Subaru Robin 001-13086-50

BOLT AND WASHER AY

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: M8X1.25X65L W/SW.

$2.49

$

Usually ships in 2-12 days

430

Subaru Robin 228-63301-01

INJECTION PIPE CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$23.21

$

Usually ships in 2-12 days

440

Subaru Robin 228-65020-03

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 5DX9.5DX30L.

$2.49

$

Usually ships in 2-12 days

450

Subaru Robin 222-65006-03

GROMMET

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$4.99

$

Usually ships in 2-12 days

840

Subaru Robin 085-10607-40

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX120L. Interchangable with 085-10600-00.

$

Not available 

850

Subaru Robin 228-62611-01

FUEL PIPE 11 CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$78.99

$

Usually ships in 2-12 days

860

085-10607-00

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 6DX12DX250L. Interchangable with 085-10600-00.

$

Not available 

870

Subaru Robin 056-60001-70

CLAMP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 8.5DX10BX95LX0.7T.

$0.99

$

Usually ships in 2-12 days

872

Subaru Robin 020-00601-10

WASHER

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$0.99

$

Usually ships in 2-12 days

880

Subaru Robin 228-67630-01

FUEL F.BRACKET CP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$8.38

$

Usually ships in 2-12 days

920

Subaru Robin 052-10500-12

BANJO

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00.

$11.30

$

Usually ships in 2-12 days

950

Subaru Robin 056-11100-20

HOSE CLAMP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 11.5DX8BX0.7T.

$1.99

$

Usually ships in 2-12 days

960

085-10408-00

RUBBER PIPE

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 4.5DX9DX190L. Interchangable with 085-14500-00.

$

Not available 

970

Subaru Robin 056-11100-20

HOSE CLAMP

Note: Start Date: 3/10/1982 0:00:00. Start Date: 12/31/9999 0:00:00. Remarks: 11.5DX8BX0.7T.

$1.99

$

Usually ships in 2-12 days

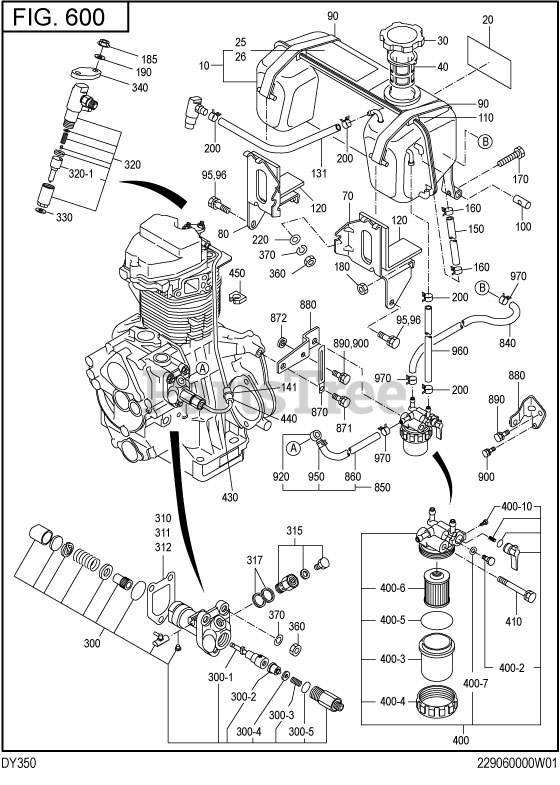

DY350D80010 (DY35) - Subaru Robin Engine, Diesel 600 Fuel & Lubricant Parts Diagram

600 Fuel & Lubricant Parts Diagram

085-10408-30

228-63125-08

085-10607-00

085-10408-00
