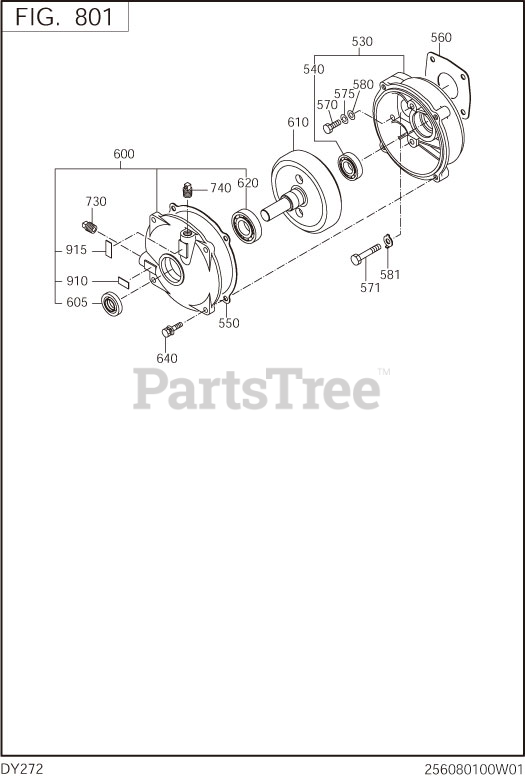

DY272YR0001 (DY27-2) - Subaru Robin Engine, Diesel 801 Reduction Parts Diagram

Engine, Diesel

801 Reduction Parts Diagram

  • Title

530

Subaru Robin 207-80101-01

REDUCTION CASE CP

$137.30

$

Usually ships in 2-12 days

0

540

Subaru Robin 060-01500-20

BALL BEARING

Note: Remarks: 6302 15DX42DX13B.

$14.99

$

Usually ships in 2-12 days

0

550

Subaru Robin 206-85102-03

GASKET(B)

$4.99

$

Usually ships in 2-12 days

0

560

Subaru Robin 206-85101-03

GASKET(A)

$1.49

$

Usually ships in 2-12 days

0

570

Subaru Robin 010-10800-80

BOLT

Note: Remarks: 5/16-24UNFX29L.

$3.99

$

Usually ships in 2-12 days

0

571

Subaru Robin 010-10800-30

BOLT

Note: Remarks: 5/16-24UNFX45L.

$1.49

$

Usually ships in 2-12 days

0

575

Subaru Robin 003-10080-00

WASHER

Note: Remarks: 8.5DX16DX1.2T.

$0.99

$

In Stock, only 1 left!

0

580

Subaru Robin 003-20080-00

SPRING WASHER

Note: Remarks: 8.2DX15.4DX2T.

$0.99

$

In Stock, only 1 left!

0

581

Subaru Robin 003-38080-00

LOCK WASHER

$0.99

$

Usually ships in 2-12 days

0

600

Subaru Robin 207-80701-01

REDUCTION COVER CP

$137.30

$

Usually ships in 2-12 days

0

605

Subaru Robin 044-03000-30

OIL SEAL

Note: Remarks: 30DX45DX8B.

$17.99

$

Usually ships in 2-12 days

0

610

Subaru Robin 207-81101-03

DRIVING SHAFT

Note: Interchangable with 207-81101-13.

$556.33

$

Usually ships in 2-12 days

0

620

Subaru Robin 060-03000-20

BALL BEARING

Note: Remarks: 30DX62DX16B.

$33.99

$

Usually ships in 2-12 days

0

640

Subaru Robin 001-14082-50

BOLT AND WASHER AY

Note: Remarks: M8X1.25X25L W/W,SW.

$0.99

$

Usually ships in 2-12 days

0

730

Subaru Robin 206-85002-03

PLUG(B)

$2.49

$

Usually ships in 2-12 days

0

740

Subaru Robin 206-85001-03

PLUG(A)

$14.79

$

Usually ships in 2-12 days

0

910

Subaru Robin 206-95002-03

LABEL(LEVEL MARK)

Note: Remarks: 12X22 ENGLISH.

$1.99

$

Usually ships in 2-12 days

0

915

Subaru Robin 206-95001-03

LABEL(OIL FILLER)

Note: Remarks: 12X22 ENGLISH.

$1.99

$

Usually ships in 2-12 days

0
