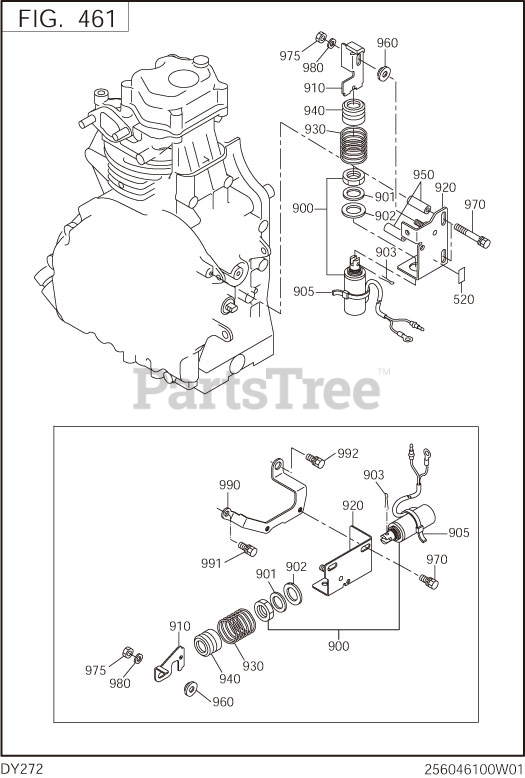

DY272DS7710 (DY27-2) - Subaru Robin Engine, Diesel 461 Governor Parts Diagram

Engine, Diesel

461 Governor Parts Diagram

  • Title

900

Subaru Robin 243-75017-00

SOLENOID AY

Note: Start Code: 4680.

$131.21

$

Usually ships in 2-12 days

0

900

243-75019-00

SOLENOID AY

Note: End Code: 4679.

$

$

Not available

901

Subaru Robin 023-01800-50

SPACER

$2.49

$

Usually ships in 2-12 days

0

902

Subaru Robin 023-01800-60

SPACER

$8.40

$

Usually ships in 2-12 days

0

903

Subaru Robin 005-10301-50

COTTER PIN

$0.99

$

Usually ships in 2-12 days

0

905

Subaru Robin 056-30000-40

WIRE BAND

Note: Remarks: 3.6BX1.2TX146L.

$

$

Not available

910

243-45710-10

STOP LEVER AY

$

$

Not available

920

243-47011-31

BRACKET(SOLE)CP

$

$

Not available

930

Subaru Robin 243-46003-03

RETURN SPRING

$2.99

$

Usually ships in 2-12 days

0

940

Subaru Robin 228-75013-03

BOOT(PLANGER)

$29.23

$

Usually ships in 2-12 days

0

960

Subaru Robin 023-00603-10

SPACER

$4.99

$

Usually ships in 2-12 days

0

970

Subaru Robin 011-00600-20

FLANGE BOLT

Note: Remarks: M6X1.0X14DX12L.

$2.49

$

In Stock, only 4 left!

0

975

Subaru Robin 017-60600-30

SELF LOCK NUT

Note: Remarks: M6X1.0X7.5H.

$2.49

$

Usually ships in 2-12 days

0

980

Subaru Robin 021-70600-50

FRICTION WASHER

$0.99

$

Usually ships in 2-12 days

0

990

255-47040-01

RETAINER CP,SOLE

Note: Start Code: 4786.

$

$

Not available

990

243-47040-11

RETAINER(SOLE)CP

Note: End Code: 4785.

$

$

Not available

991

Subaru Robin 001-13061-20

BOLT AND WASHER AY

Note: Interchangable with 001-14061-20.

$1.49

$

Usually ships in 2-12 days

0

992

Subaru Robin 001-13081-60

BOLT AND WASHER AY

Note: Remarks: M8X1.25X16L W/SW.

$0.99

$

Usually ships in 2-12 days

0
