DY272DS5280 (DY27-2) - Subaru Robin Engine, Diesel 101 Crankcase Parts Diagram

Engine, Diesel

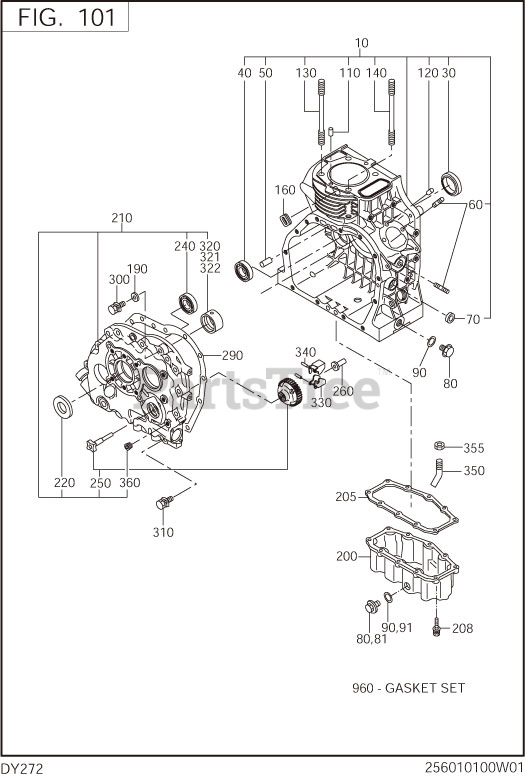

101 Crankcase Parts Diagram

  • Title

10

244-10107-71

CRANK CASE CP

Note: Start Code: 5129.

$

$

Not available

10

Subaru Robin 244-10107-61

CRANK CASE CP

Note: End Code: 5128.

$1120.68

$

Usually ships in 2-12 days

0

30

Subaru Robin 044-03000-60

OIL SEAL

Note: Remarks: TB30488.

$8.65

$

Usually ships in 2-12 days

0

50

Subaru Robin 031-00801-00

DOWEL PIN

Note: Start Code: 7136.

$4.99

$

Usually ships in 2-12 days

0

50

Subaru Robin 005-26081-80

DOWEL PIN

Note: End Code: 7135.

$4.99

$

Usually ships in 2-12 days

0

60

Subaru Robin 001-37062-21

STUD

$1.99

$

Usually ships in 2-12 days

0

70

Subaru Robin 044-00800-30

OIL SEAL

Note: Remarks: 8X18X7.

$7.49

$

Usually ships in 2-12 days

0

80

Subaru Robin 040-11400-30

PLUG

Note: Remarks: M14X1.5X20DX12L.

$3.49

$

In Stock, only 3 left!

0

90

Subaru Robin 021-11400-20

GASKET

Note: Remarks: 14.1DX19DX2.3T.

$0.99

$

Usually ships in 2-12 days

0

110

Subaru Robin 031-00600-10

DOWEL PIN

Note: Remarks: 6DX14.8L.

$0.99

$

Usually ships in 2-12 days

0

120

Subaru Robin 031-00500-10

DOWEL PIN

Note: Remarks: 5DX10L.

$0.99

$

Usually ships in 2-12 days

0

130

Subaru Robin 244-16001-11

TENSION BOLT CP

$23.21

$

Usually ships in 2-12 days

0

140

Subaru Robin 244-16002-11

TENSION BOLT CP

$23.21

$

Usually ships in 2-12 days

0

160

Subaru Robin 243-75001-03

GROMMET

$7.21

$

Usually ships in 2-12 days

0

210

255-11004-11

M,BEARING COVER CP

Note: Start Code: 5692.

$

$

Not available

210

255-11004-01

M,BEARING COVER CP

Note: Start Code: 5166. End Code: 5691.

$

$

Not available

210

243-11004-61

MAINBEARING COVER CP

Note: End Code: 5165.

$

$

Not available

220

Subaru Robin 044-02501-60

OIL SEAL

Note: Remarks: 25DX41DX7B.

$14.99

$

In Stock, only 1 left!

0

250

Subaru Robin 243-45011-17

GOVERNOR GEAR SET

$73.99

$

Usually ships in 2-12 days

0

260

Subaru Robin 205-41901-03

GOVERNOR SLEEVE

Note: Remarks: 6DX9DX16DX26L.

$11.99

$

Usually ships in 2-12 days

0

290

Subaru Robin 255-15004-03

GASKET(BEARING COVER

Note: Start Code: 5570.

$13.99

$

Usually ships in 2-12 days

0

290

Subaru Robin 243-15026-03

GASKET(BEARING COVER

Note: End Code: 5569.

$13.99

$

Usually ships in 2-12 days

0

300

Subaru Robin 011-00802-70

FLANGE BOLT

Note: Start Code: 5429. Remarks: M8X1.25X16DX33L.

$0.99

$

Usually ships in 2-12 days

0

300

Subaru Robin 001-14083-50

BOLT AND WASHER AY

Note: Start Code: 5322. End Code: 5428. Remarks: M8X1.25X35L W/W,SW.

$1.49

$

Usually ships in 2-12 days

0

300

Subaru Robin 001-13083-50

BOLT AND WASHER AY

Note: End Code: 5321. Remarks: M8X1.25X35L W/SW.

$0.99

$

Usually ships in 2-12 days

0

310

011-00802-80

FLANGE BOLT

Note: Start Code: 5429.

$

$

Not available

310

Subaru Robin 001-14084-00

BOLT AND WASHER AY

Note: Start Code: 5322. End Code: 5428. Remarks: M8X1.25X40L W/W,SW.

$0.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 001-13084-00

BOLT AND WASHER AY

Note: End Code: 5321. Remarks: M8X1.25X40L W/SW.

$0.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 243-15801-03

MAIN BEARING

Note: Remarks: STD..

$15.99

$

Usually ships in 2-12 days

0

321

Subaru Robin 243-15802-03

MAIN BEARING

Note: Remarks: 0.25 U.S..

$18.65

$

Usually ships in 2-12 days

0

322

Subaru Robin 243-15803-03

MAIN BEARING

Note: Remarks: 0.50 U.S..

$18.65

$

Usually ships in 2-12 days

0

330

Subaru Robin 220-41601-03

FLYWEIGHT

$2.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 030-73000-70

PIN

Note: Remarks: 2.6DX27.5L.

$0.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 235-15421-03

BLIND PLUG

Note: Start Code: 5166. Remarks: PT1/8X8L.

$2.99

$

Usually ships in 2-12 days

0

360

Subaru Robin 212-15008-13

BLIND PLUG

Note: End Code: 5165. Remarks: PT1/8X9L.

$1.49

$

In Stock, only 1 left!

0

960

Subaru Robin 256-99001-27

GASKET SET

$50.99

$

Usually ships in 2-12 days

0
