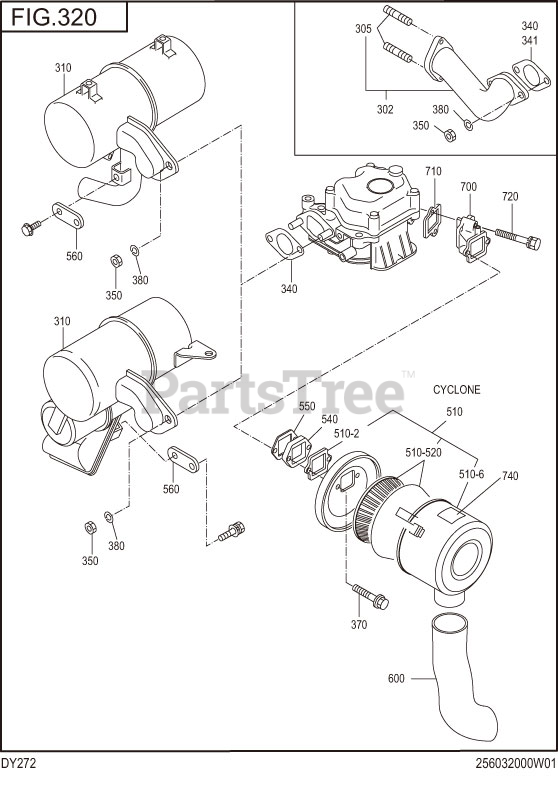

DY272DS2810 (DY27-2) - Subaru Robin Engine, Diesel 320 Intake & Exhaust Parts Diagram

Engine, Diesel

320 Intake & Exhaust Parts Diagram

  • Title

302

Subaru Robin 243-34110-01

EXHAUST MANIFOLD CP

$145.39

$

Usually ships in 2-12 days

0

305

Subaru Robin 010-50802-90

STUD

Note: Remarks: M8X1.25X30L.

$1.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 255-35002-03

GASKET(EXHAUST)

Note: Start Code: 5570.

$2.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 243-35002-03

GASKET(EXHAUST)

Note: End Code: 5569.

$2.99

$

Usually ships in 2-12 days

0

341

217-36201-11

GASKET CP (EXHAUST)

Note: Start Code: 5600.

$

$

Not available

341

Subaru Robin 217-36201-01

GASKET CP(EXHAUST)

Note: End Code: 5599.

$15.60

$

Usually ships in 2-12 days

0

350

Subaru Robin 017-00800-30

NUT

Note: Start Code: 5631. Remarks: M8X1.25X6.5H.

$2.49

$

Usually ships in 2-12 days

0

350

Subaru Robin 002-19080-00

NUT

Note: End Code: 5630.

$3.49

$

In Stock, only 2 left!

0

370

Subaru Robin 001-13061-20

BOLT AND WASHER AY

Note: Interchangable with 001-14061-20.

$1.49

$

Usually ships in 2-12 days

0

380

Subaru Robin 003-20080-00

SPRING WASHER

Note: Remarks: 8.2DX15.4DX2T.

$0.99

$

In Stock, only 1 left!

0

510

255-32601-00

AIR CLEANER AY

$

$

Not available

510

Subaru Robin 243-32651-08

PACKING

$2.49

$

Usually ships in 2-12 days

0

510

Subaru Robin 243-92305-03

LABEL(AIR CLEANER)

$3.49

$

Usually ships in 2-12 days

0

510

Subaru Robin 255-32601-07

ELEMENT SET

Note: Remarks: CYCLONE.

$55.99

$

Usually ships in 2-12 days

0

700

Subaru Robin 243-33101-13

INTAKE MANIFOLD

$15.14

$

Usually ships in 2-12 days

0

710

Subaru Robin 243-35003-13

GASKET(IN-MANIFOLD)

$0.99

$

Usually ships in 2-12 days

0

720

Subaru Robin 001-13083-50

BOLT AND WASHER AY

Note: Remarks: M8X1.25X35L W/SW.

$0.99

$

Usually ships in 2-12 days

0

740

Subaru Robin 243-92301-13

LABEL(AIR CLEANER)

Note: End Code: 3408.

$2.99

$

Usually ships in 2-12 days

0

740

Subaru Robin 243-92305-03

LABEL(AIR CLEANER)

Note: Start Code: 3409.

$3.49

$

Usually ships in 2-12 days

0
