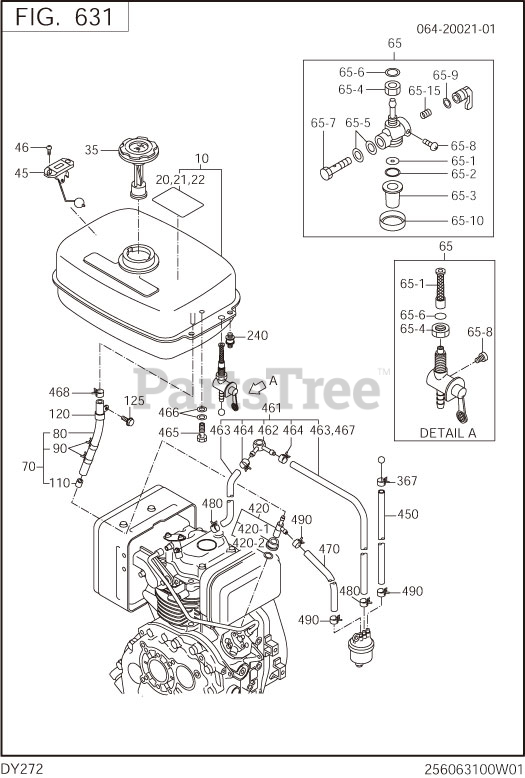

DY272DS2470 (DY27-2) - Subaru Robin Engine, Diesel 631 Fuel & Lubricant Parts Diagram

Engine, Diesel

631 Fuel & Lubricant Parts Diagram

  • Title

10

255-60209-01

FUEL TANK CP

$

$

Not available

20

Subaru Robin 073-20045-20

LABEL(OIL CAUTION)

Note: End Code: 6940. Remarks: 37X37 ILLUST.

$2.49

$

Usually ships in 2-12 days

0

21

073-20049-10

LABEL,LIGHT OIL

Note: End Code: 6940.

$

$

Not available

22

Subaru Robin 073-20045-10

LABEL(SYMBOL-TANK)

Note: End Code: 6940. Remarks: 50X71.

$6.35

$

Usually ships in 2-12 days

0

45

Subaru Robin 064-80007-00

FUEL GAUGE CP

$28.59

$

In Stock, only 1 left!

0

46

Subaru Robin 014-50500-40

SCREW(COUNTER HEAD)

Note: Remarks: M5X0.8X10L.

$1.99

$

In Stock, only 2 left!

0

65

Subaru Robin 235-64601-20

FUEL COCK AY

$36.99

$

Usually ships in 2-12 days

0

80

085-10604-30

RUBBER PIPE

Note: Remarks: 6DX12DX280L.

$

$

Not available

468

Subaru Robin 056-11100-20

HOSE CLAMP

Note: Remarks: 11.5DX8BX0.7T.

$1.99

$

Usually ships in 2-12 days

0
