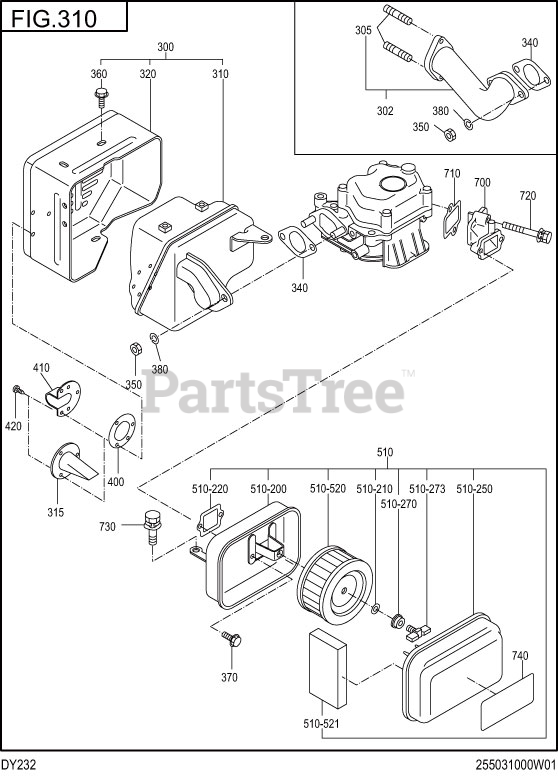

DY232DD0010 (DY23-2) - Subaru Robin Engine, Diesel 310 Intake & Exhaust Parts Diagram

Engine, Diesel

310 Intake & Exhaust Parts Diagram

  • Title
300

Subaru Robin 255-30103-00

MUFFLER AY

Note: Start Code: 2283.

$321.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 243-30101-51

MUFFLER CP

Note: Start Code: 1948. End Code: 2282.

$123.99

$

Usually ships in 2-12 days

0

310

Subaru Robin 243-30101-41

MUFFLER CP

Note: End Code: 1947. Interchangable with 243-30101-51.

$123.99

$

Usually ships in 2-12 days

0

320

Subaru Robin 243-34201-01

MUFFLER COVER CP

Note: End Code: 2282.

$95.99

$

Usually ships in 2-12 days

0

340

Subaru Robin 255-35002-03

GASKET(EXHAUST)

Note: Start Code: 5570.

$3.49

$

Usually ships in 2-12 days

0

340

Subaru Robin 243-35002-03

GASKET(EXHAUST)

Note: End Code: 5569.

$3.49

$

Usually ships in 2-12 days

0

350

Subaru Robin 017-00800-30

NUT

Note: Start Code: 5631. Remarks: M8X1.25X6.5H.

$2.49

$

Usually ships in 2-12 days

0

350

Subaru Robin 002-19080-00

NUT

Note: End Code: 5630.

$3.49

$

In Stock, only 2 left!

0

360

Subaru Robin 001-10061-00

BOLT AND WASHER AY

Note: Start Code: 2283. Remarks: M6X1.0X10L W/SW.

$1.49

$

Usually ships in 2-12 days

0

360

Subaru Robin 001-10061-00

BOLT AND WASHER AY

Note: End Code: 2282. Remarks: M6X1.0X10L W/SW.

$1.49

$

Usually ships in 2-12 days

0

370

Subaru Robin 001-13061-20

BOLT AND WASHER AY

Note: Interchangable with 001-14061-20.

$1.49

$

Usually ships in 2-12 days

0

380

Subaru Robin 003-20080-00

SPRING WASHER

Note: Remarks: 8.2DX15.4DX2T.

$0.99

$

In Stock, only 1 left!

0

400

Subaru Robin 243-35005-23

GASKET(TAIL PIPE)

Note: End Code: 2588.

$6.16

$

Usually ships in 2-12 days

0

410

$12.99

$

Usually ships in 2-12 days

0

420

Subaru Robin 015-00400-60

TAPPING SCREW

Note: Start Code: 2589. Remarks: M4X6L.

$

$

Not available

420

Subaru Robin 015-00400-40

TAPPING SCREW

Note: End Code: 2588.

$0.99

$

Usually ships in 2-12 days

0

510

Subaru Robin 243-32601-00

AIR CLEANER AY

$144.99

$

Usually ships in 2-12 days

0

510

$30.28

$

Usually ships in 2-12 days

0

$2.99

$

Usually ships in 2-12 days

0

$23.99

$

Usually ships in 2-12 days

0

510

$14.99

$

Usually ships in 2-12 days

0

510

$43.99

$

In Stock, Qty 9

0

$11.99

$

In Stock, Qty 10

0

700

Subaru Robin 243-33101-13

INTAKE MANIFOLD

$15.14

$

Usually ships in 2-12 days

0

710

Subaru Robin 243-35003-13

GASKET(IN-MANIFOLD)

$0.99

$

Usually ships in 2-12 days

0

720

Subaru Robin 001-13083-50

BOLT AND WASHER AY

Note: Remarks: M8X1.25X35L W/SW.

$0.99

$

Usually ships in 2-12 days

0

730

Subaru Robin 001-13081-60

BOLT AND WASHER AY

Note: Remarks: M8X1.25X16L W/SW.

$0.99

$

Usually ships in 2-12 days

0

740

Subaru Robin 243-92302-03

LABEL(AIR CLEANER)

$4.49

$

Usually ships in 2-12 days

0
