DY232BS7000 (DY23-2) - Subaru Robin Engine, Diesel 641 Fuel & Lubricant Parts Diagram

Engine, Diesel

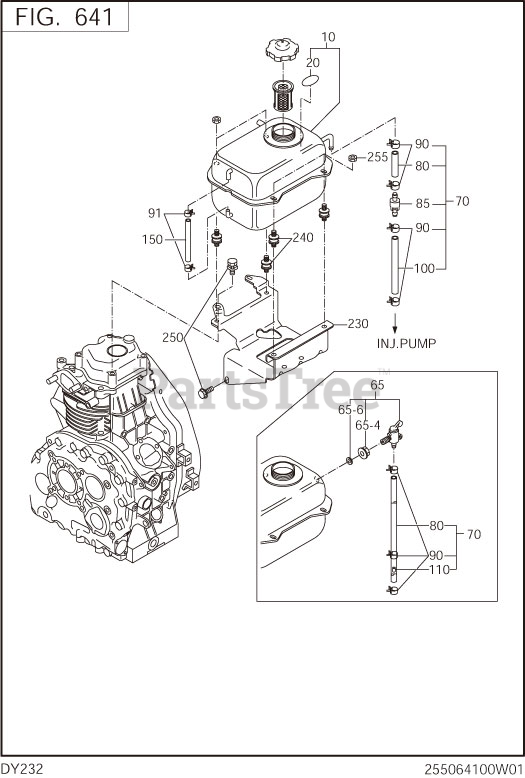

641 Fuel & Lubricant Parts Diagram

  • Title

10

243-60301-11

FUEL TANK CP

$

$

Not available

20

Subaru Robin 228-95002-03

LABEL(LIGHT OIL)

$1.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 085-10406-90

RUBBER PIPE

Note: Start Code: 5320. Remarks: 4.5DX9DX120L.

$10.99

$

Usually ships in 2-12 days

0

80

Subaru Robin 085-10406-90

RUBBER PIPE

Note: End Code: 5319. Remarks: 4.5DX9DX120L.

$10.99

$

Usually ships in 2-12 days

0

90

Subaru Robin 056-10800-10

HOSE CLAMP

Note: End Code: 5319. Remarks: 7.8DX6BX0.6T.

$1.49

$

Usually ships in 2-12 days

0

91

Subaru Robin 056-11100-20

HOSE CLAMP

Note: End Code: 5319. Remarks: 11.5DX8BX0.7T.

$1.99

$

Usually ships in 2-12 days

0

91

Subaru Robin 056-10800-10

HOSE CLAMP

Note: Start Code: 5322. Remarks: 7.8DX6BX0.6T.

$1.49

$

Usually ships in 2-12 days

0

91

Subaru Robin 056-10800-10

HOSE CLAMP

Note: Start Code: 5320. End Code: 5321. Remarks: 7.8DX6BX0.6T.

$1.49

$

Usually ships in 2-12 days

0

100

Subaru Robin 085-10607-40

RUBBER PIPE

Note: Start Code: 5320. Remarks: 6DX12DX120L. Interchangable with 085-10600-00.

$

$

Not available

100

Subaru Robin 085-10607-40

RUBBER PIPE

Note: End Code: 5319. Remarks: 6DX12DX120L. Interchangable with 085-10600-00.

$

$

Not available

150

Subaru Robin 085-00502-50

VINYL PIPE

Note: Start Code: 5320.

$13.99

$

Usually ships in 2-12 days

0

150

Subaru Robin 085-00502-50

VINYL PIPE

Note: End Code: 5319.

$13.99

$

Usually ships in 2-12 days

0

230

Subaru Robin 243-61601-01

TANK BRACKET CP

$75.74

$

Usually ships in 2-12 days

0

240

Subaru Robin 356-57045-08

RUBBER MOUNT

$9.99

$

Usually ships in 2-12 days

0

250

Subaru Robin 001-13081-60

BOLT AND WASHER AY

Note: Remarks: M8X1.25X16L W/SW.

$0.99

$

Usually ships in 2-12 days

0

255

Subaru Robin 002-28080-00

NUT

$0.99

$

Usually ships in 2-12 days

0
