DXGZ260P (47AKBCA8038) - DeWALT 60" Zero-Turn Mower (2022) Bumper Parts Diagram

60" Zero-Turn Mower

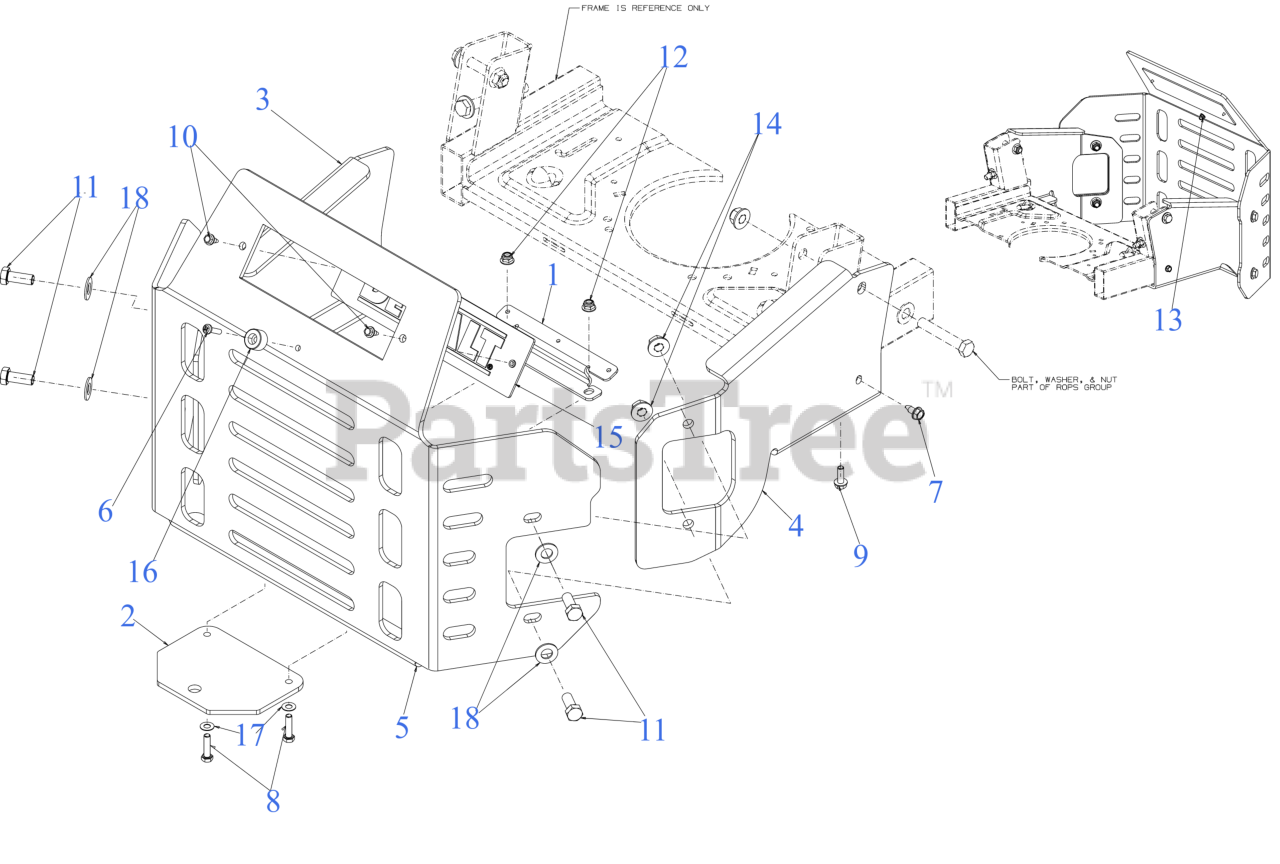

Bumper Parts Diagram

  • Title

1

MTD 703-25724

MUFFLER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$21.99

$

Usually ships in 3-6 days

0

2

MTD 703-25725

HITCH PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$24.99

$

Usually ships in 3-6 days

0

3

MTD 703-25765

BUMPER BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$70.99

$

Usually ships in 3-6 days

0

4

MTD 703-25767

BUMPER BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$70.99

$

Usually ships in 3-6 days

0

5

MTD 703-27552

REAR BUMPER

Note: *CHOOSE COLOR WHEN ORDERING*

$272.99

$

Usually ships in 3-6 days

0

6

MTD 710-0166A

MACHINE SCREW 1/4-20:1

$7.49

$

In Stock, only 1 left!

0

7

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3032

SCREW 1/2-13 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

12

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04150

NUT

$4.49

$

In Stock, only 1 left!

0

15

MTD 719-07452

DEWALT LOGO (DIE CAST)

$32.99

$

Usually ships in 3-6 days

0

16

MTD 735-05147

BUMPER

$5.49

$

Usually ships in 3-6 days

0

17

MTD 736-0278

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

18

MTD 736-0626

FLAT WASHER

$9.49

$

In Stock, only 2 left!

0
