DXGZ254P (47AKBCA7038) - DeWALT 54" Zero-Turn Mower (2022) Deck Parts Diagram

54" Zero-Turn Mower

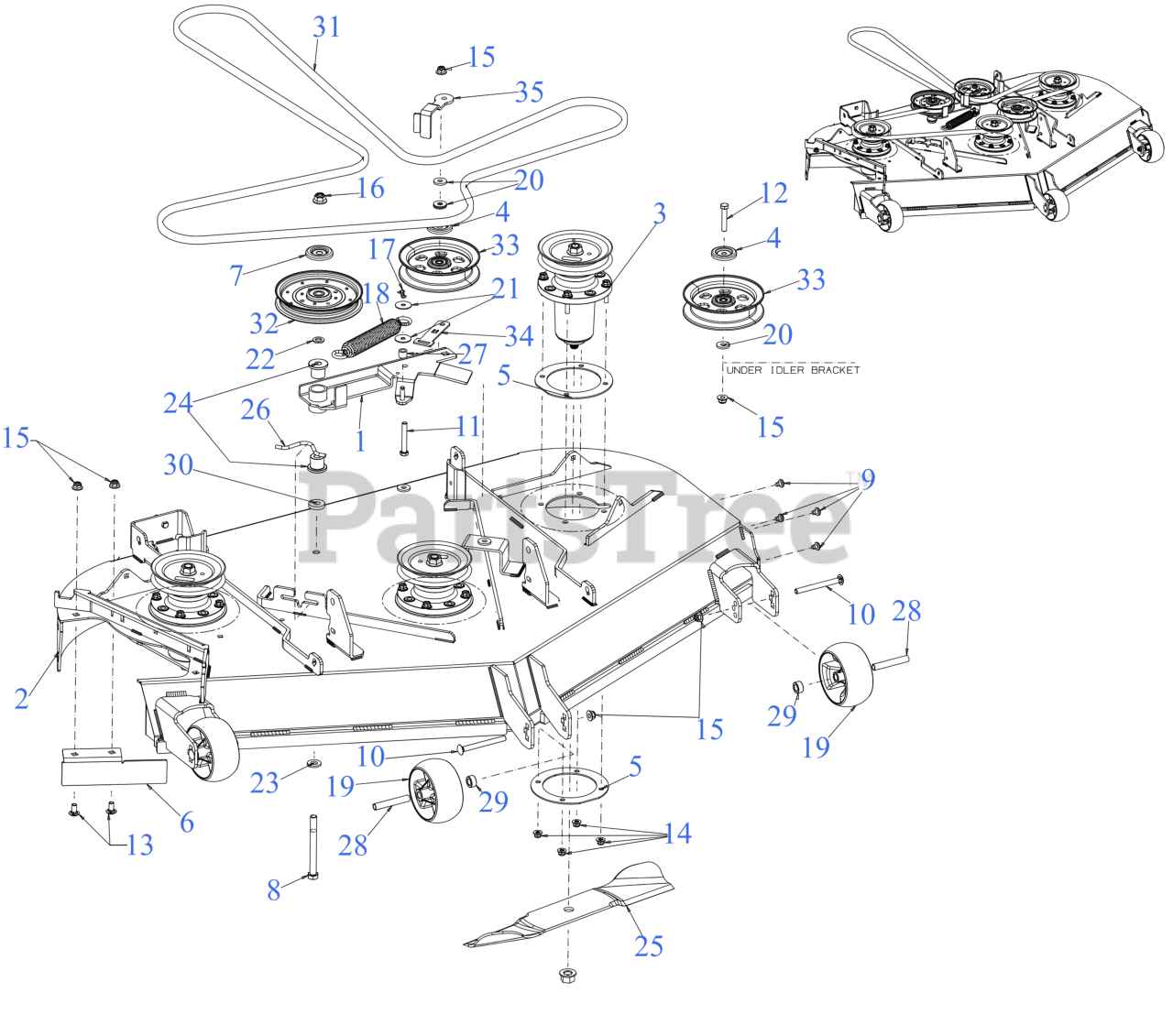

Deck Parts Diagram

  • Title

1

MTD 603E06959

54/60" DECK IDLER ASSEMBLY

$107.99

$

Usually ships in 3-6 days

0

2

MTD 603P07222

54" FAB DECK SHELL
(Superseded to 603P07222B)

Note: *CHOOSE COLOR WHEN ORDERING*

$1475.99

$

Usually ships in 3-6 days

0

3

MTD 918-07416

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

3

MTD 490-130-C022

Cub Cadet 54" SPINDLE ASSEMBLY (07416)

Note: Retail Packaged Part

$199.99

$

In Stock, only 1 left!

0

4

MTD 703-11504

PULLEY CAP 1.875 DIA

$5.99

$

Usually ships in 3-6 days

0

5

MTD 703E18464

SPINDLE PLATE

$33.99

$

In Stock, only 2 left!

0

6

MTD 703E20485

54" DECK CHUTE BAFFLE

$32.99

$

Usually ships in 3-6 days

0

7

MTD 703-24504

PULLEY CAP (.540 x 2.041 DIA)

$9.49

$

Usually ships in 3-6 days

0

8

MTD 710-0382

BOLT-HEX 1/2-13X5.0 GR5

$12.99

$

In Stock, only 2 left!

0

9

MTD 710-04593

SCREW 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

10

MTD 710-05384

CARRIAGE BOLT 3/8-16 x 4.00 GR5

$5.49

$

In Stock, Qty 19

0

11

MTD 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

12

MTD 710-3144

SCREW 3/8-16 x 2.0 GR5

$4.49

$

In Stock, only 4 left!

0

13

MTD 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

MTD 712-04150

NUT

$4.49

$

In Stock, only 1 left!

0

17

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

18

MTD 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 12

0

19

MTD 734-04155

DECK WHEEL

$20.99

$

In Stock, Qty 20+

0

19

MTD OEM-734-04155

WHEELS-DELUXE 5"

Note: Retail Packaged Part

$23.99

$

Usually ships in 3-6 days

0

20

MTD 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 1 left!

0

21

MTD 736-0362

FLAT WASHER .322 ID x 1.25 x .060

$4.49

$

In Stock, Qty 8

0

22

MTD 736-04606

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

23

MTD 736-3019

FLAT WASHER .531X1.060X.134

$5.99

$

In Stock, Qty 11

0

24

MTD 741-06810

FLANGE BEARING

$9.99

$

Usually ships in 3-6 days

0

25

MTD 742P05533

19" BLADE

$40.99

$

In Stock, Qty 5

0

26

MTD 747-10330

DECK SPRING HOOK

$3.49

$

Usually ships in 3-6 days

0

27

MTD 750-05563

SPACER

$7.49

$

In Stock, only 1 left!

0

28

MTD 750-06199

SPACER .38X.49X3.05LG

$8.49

$

In Stock, only 3 left!

0

29

MTD 750-0664

SPACER-.505 1D

$6.99

$

In Stock, only 2 left!

0

30

MTD 750-09990

SPACER PLATE

$6.99

$

Usually ships in 3-6 days

0

31

MTD 954-04329A

V-BELT B SEC x 148.25

$100.99

$

Usually ships in 3-6 days

0

31

MTD 490-501-C067

Cub Cadet 54" DECK DRIVE BELT

Note: Retail Packaged Part

$100.99

$

In Stock, only 3 left!

0

31

MTD 490-501-Y067

Troy-Bilt 54" DECK DRIVE BELT

Note: Retail Packaged Part

$

$

Currently unavailable

31

MTD 490-501-M067

Note: Retail Packaged Part

$

$

Not available

32

MTD 756-05212

IDLER PULLEY 6.0" DIA

$83.99

$

In Stock, only 1 left!

0

33

MTD 756-05332

5" FLAT IDLER PULLEY

$49.99

$

Usually ships in 3-6 days

0

34

MTD 783E11808

BELT KEEPER

$14.99

$

Usually ships in 3-6 days

0

35

MTD 783E11828

54/60" IDLER KEEPER

$25.99

$

Usually ships in 3-6 days

0
