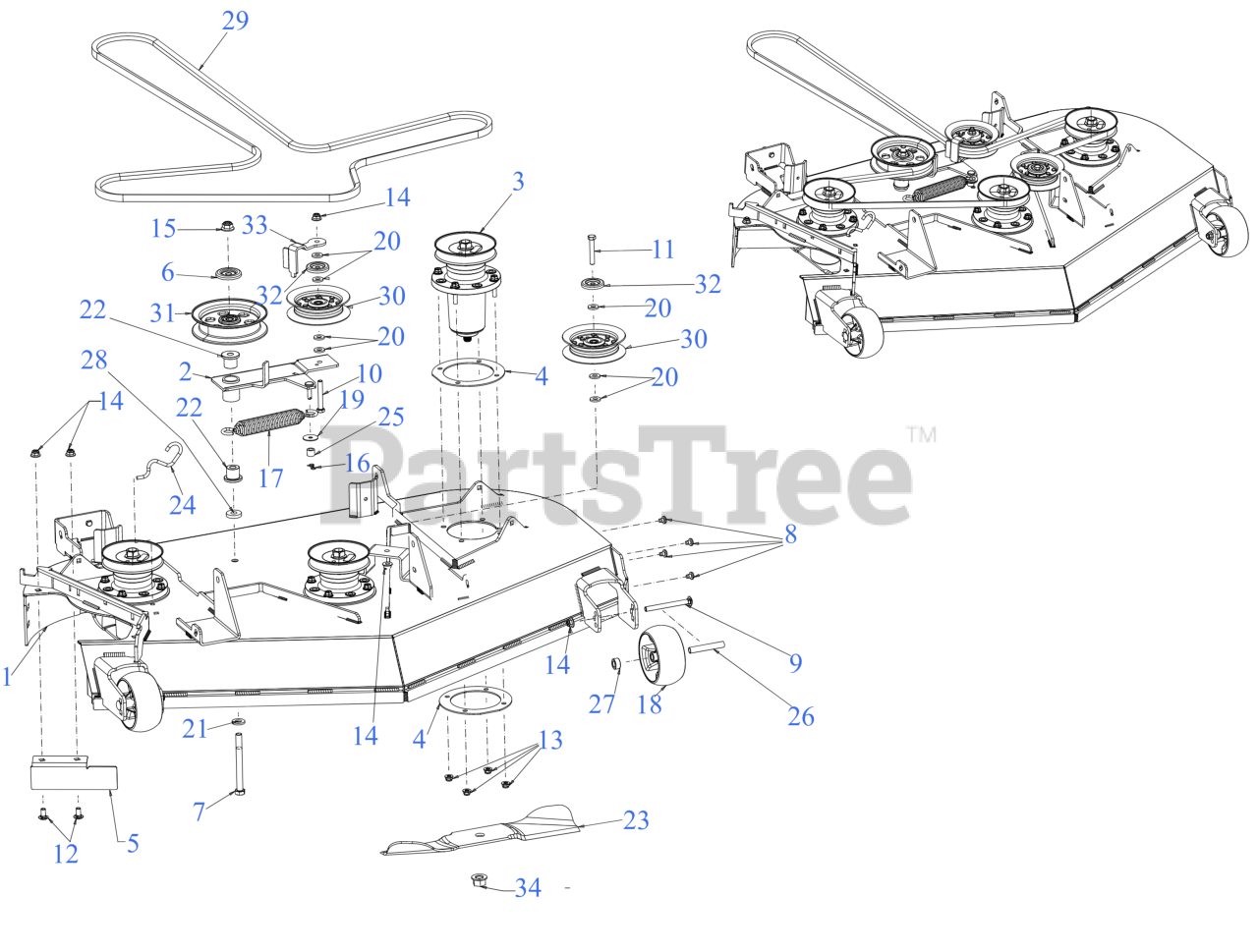

DXGZ148P (47AHBCA6038) - DeWALT 48" Zero-Turn Mower (2022) Deck Parts Diagram

48" Zero-Turn Mower

Deck Parts Diagram

  • Title

1

MTD 603P06861

48" FAB DECK SHELL
(Superseded to 603P06861B)

Note: *CHOOSE COLOR WHEN ORDERING*

$1370.99

$

Usually ships in 3-6 days

0

2

MTD 603E07339

48" DECK IDLER ASSEMBLY

$77.99

$

Usually ships in 3-6 days

0

3

MTD 618P09635

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$

$

Not available

4

MTD 703E18464

SPINDLE PLATE

$33.99

$

In Stock, only 2 left!

0

5

MTD 703E20486

48" DECK CHUTE BAFFLE

$27.99

$

Usually ships in 3-6 days

0

6

MTD 703-24504

PULLEY CAP (.540 x 2.041 DIA)

$9.49

$

Usually ships in 3-6 days

0

7

MTD 710-0382

BOLT-HEX 1/2-13X5.0 GR5

$12.99

$

In Stock, only 2 left!

0

8

MTD 710-04593

SCREW 5/16-18 x .375

$4.49

$

In Stock, only 3 left!

0

9

MTD 710-05384

CARRIAGE BOLT 3/8-16 x 4.00 GR5

$5.49

$

In Stock, Qty 19

0

10

MTD 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

11

MTD 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

12

MTD 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

16

MTD 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

17

MTD 732-07946

SPRING (1.28" DIA x 8.5" LONG)

$35.99

$

Usually ships in 3-6 days

0

18

MTD 734-04155

DECK WHEEL

$20.99

$

In Stock, Qty 20+

0

18

MTD OEM-734-04155

WHEELS-DELUXE 5"

Note: Retail Packaged Part

$23.99

$

Usually ships in 3-6 days

0

19

MTD 736-0362

FLAT WASHER .322 ID x 1.25 x .060

$4.49

$

In Stock, Qty 7

0

20

MTD 736-3004

FLAT WASHER

$4.99

$

In Stock, Qty 6

0

21

MTD 736-3019

FLAT WASHER .531X1.060X.134

$5.99

$

In Stock, Qty 11

0

22

MTD 741-06810

FLANGE BEARING

$9.99

$

Usually ships in 3-6 days

0

23

MTD 742P05534

17" BLADE

$35.99

$

In Stock, only 3 left!

0

24

MTD 747-10430

DECK SPRING HOOK

$3.49

$

Usually ships in 3-6 days

0

25

MTD 750-05563

SPACER

$7.49

$

Usually ships in 3-6 days

0

26

MTD 750-06199

SPACER .38X.49X3.05LG

$8.49

$

In Stock, only 3 left!

0

27

MTD 750-0664

SPACER-.505 1D

$6.99

$

In Stock, only 2 left!

0

28

MTD 750-09990

SPACER PLATE

$6.99

$

Usually ships in 3-6 days

0

29

MTD 754P06674

V-BELT B SEC x 141.50

$94.99

$

Usually ships in 3-6 days

0

30

MTD 756-05062

IDLER PULLEY 4.0

$68.99

$

Usually ships in 3-6 days

0

31

MTD 756-05331

5" FLAT IDLER PULLEY

$53.99

$

Usually ships in 3-6 days

0

32

MTD 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

33

MTD 783E12068

48" IDLER KEEPER

$29.99

$

Usually ships in 3-6 days

0

34

MTD 712-05203

FLANGE NUT - 5/8-18 GDE 8

$7.49

$

In Stock, Qty 20+

0
