DXGZ148P (47AHBCA6038) - DeWALT 48" Zero-Turn Mower (2021) Engine Accessories Parts Diagram

48" Zero-Turn Mower

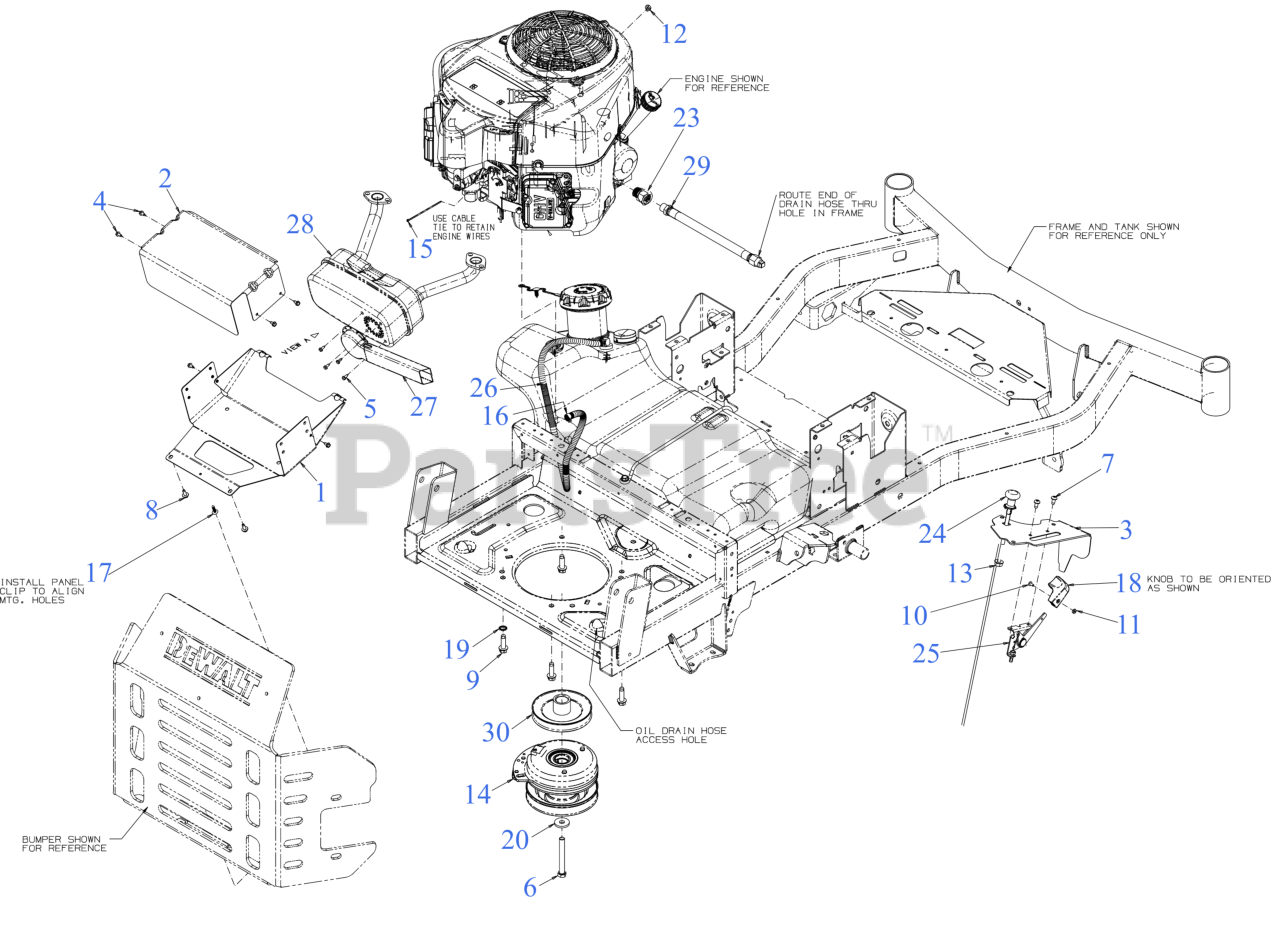

Engine Accessories Parts Diagram

  • Title
1

MTD 703-16041A

MUFFLER SHIELD (LOWER)

$84.99

$

Usually ships in 3-6 days

0

2

MTD 703-16042A

MUFFLER SHIELD (TOP)

$48.99

$

Usually ships in 3-6 days

0

3

MTD 703-20127

THROTTLE COVER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$21.99

$

Usually ships in 3-6 days

0

4

MTD 910-0224

HEX SCREW AB-TAP #10 x .50

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-0227

HEX SCREW WASHER HD #8-18 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

MTD 710-04379A

SCREW 7/16-20 x 3.5 GR5

$6.49

$

In Stock, only 2 left!

0

7

MTD 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

8

MTD 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

9

MTD 710-1315

SCREW 3/8-16 X1.250

$4.49

$

In Stock, only 2 left!

0

10

MTD 710-3217

SCREW #8-32X.38 LG

$6.99

$

In Stock, Qty 7

0

11

MTD 712-0142

HEX NUT 8-32

$4.49

$

In Stock, Qty 10

0

12

MTD 712-05106

HEX NUT 1/4-20

$3.49

$

Usually ships in 3-6 days

0

13

MTD 712-3005

HEX FLANGE NUT

$6.99

$

Usually ships in 3-6 days

0

14

MTD 717P06468

ELECTRIC PTO CLUTCH

$606.99

$

Usually ships in 3-6 days

0

15

MTD 726-0197

CABLE TIE

$3.99

$

In Stock, only 1 left!

0

16

MTD 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 18

0

17

MTD 726-04099A

RATCHET CLIP (.188 x .85)

$3.99

$

Usually ships in 3-6 days

0

18

MTD 731-09637

THROTTLE CONTROL KNOB

$8.49

$

In Stock, only 4 left!

0

19

MTD 736-0148

LOCK WASHER 3/8

$3.99

$

In Stock, Qty 20+

0

20

MTD 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

23

MTD 737-04138A

OIL DRAIN FITTING (M20x2.5)

$25.99

$

Usually ships in 3-6 days

0

24

MTD 746P04847A

CHOKE CABLE 40.5 LG

$38.99

$

Usually ships in 3-6 days

0

25

MTD 946-05131A

THROTTLE CABLE 38.5"

$43.99

$

In Stock, only 1 left!

0

26

MTD 751-10349-28

FUEL HOSE LOW PERMEATION 28"

$41.99

$

In Stock, only 1 left!

0

27

MTD 751-11424A

MUFFLER DEFLECTOR

$16.99

$

In Stock, only 2 left!

0

28

MTD 951-11471E

EXHAUST MUFFLER
(Superseded to 951-11471F)

$150.99

$

Usually ships in 3-6 days

0

29

MTD 751-15324A

OIL DRAIN HOSE (11.26" 3/8 NPT)

$

$

Not available

30

MTD 756-06203

TRANSMISSION DRIVE PULLEY
(Superseded to 756-06203A)

$37.99

$

In Stock, only 1 left!

0

OIL:SAE 10W30

$

$

Not available
