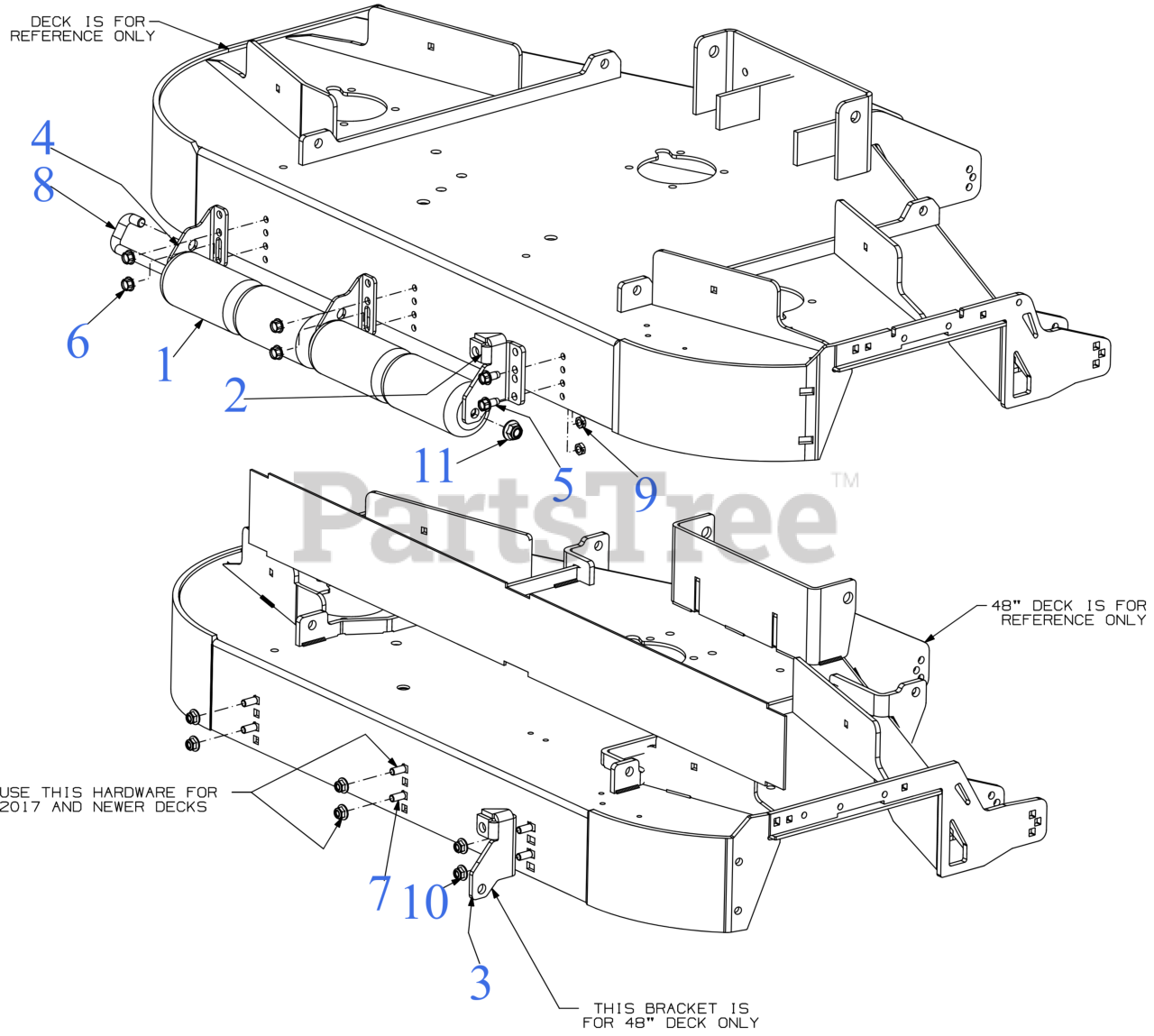

DXGXC30052 (59C30052000) - DeWALT PRO Z Lawn Striping Kit (2021) Replacement Parts Parts Diagram

PRO Z Lawn Striping Kit

Replacement Parts Parts Diagram

  • Title

1

MTD 631-05115

ROLLER ASSEMBLY

$26.99

$

In Stock, only 3 left!

0

1

MTD 741-0248

FLANGE BEARING

Note: (Not Shown)

$9.49

$

Usually ships in 3-6 days

0

2

MTD 680-00352

REAR ROLLER DECK BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$28.99

$

Usually ships in 3-6 days

0

3

MTD 680-00559

REAR STABILIZER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$40.99

$

Usually ships in 3-6 days

0

4

MTD 703-09137A

REAR MOUNT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$19.99

$

Usually ships in 3-6 days

0

5

MTD 710-0623

SCREW 3/8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-0773

SCREW 3/8-16 x .500

$7.49

$

In Stock, only 3 left!

0

7

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

8

MTD 711-05664

ROLLER PIN

$22.99

$

In Stock, only 1 left!

0

9

MTD 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

11

MTD 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

MTD 59C30052000

HEAVY DUTY STRIPER

$310.99

$

Usually ships in 3-6 days

0

MTD 59C30052150

HEAVY DUTY STRIPER

$295.99

$

Usually ships in 3-6 days

0
