DXGXB70065 (19B70065000) - DeWALT 54" Xtreme Mulch Kit (2021) General Assembly Parts Diagram

54" Xtreme Mulch Kit

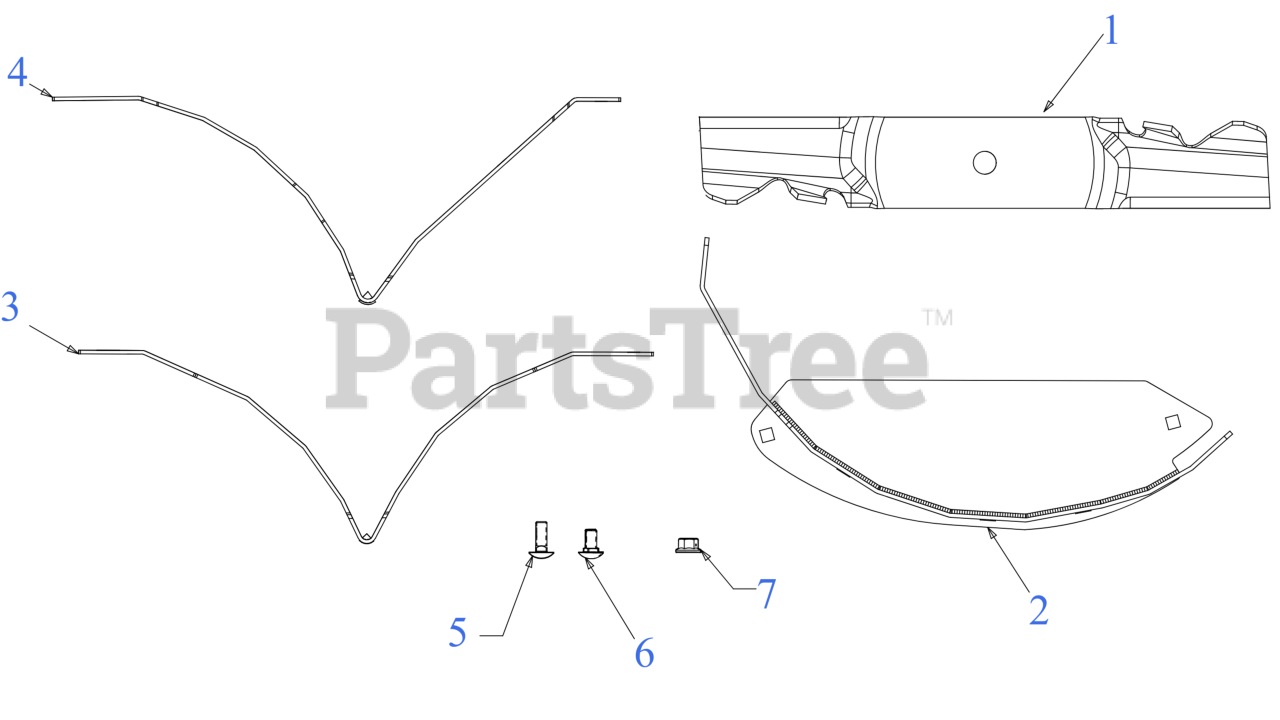

General Assembly Parts Diagram

  • Title
1

MTD 01005380P-X

19" XTREME BLADE

$42.99

$

Usually ships in 3-6 days

0

2

54" DISCHARGE MULCH BAFFLE

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available

3

MTD 703-07193A-0637

MULCH BAFFLE (LEFT)

$67.99

$

Usually ships in 3-6 days

0

4

MTD 703-07194-0637

MULCH BAFFLE (CENTER)

$106.99

$

Usually ships in 3-6 days

0

5

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

6

MTD 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-05007

NUT-CTRLCK FLG HEX

$4.49

$

In Stock, Qty 20+

0

MTD 19B70065100

54" XTREME MULCH KIT

$278.99

$

Usually ships in 3-6 days

0
