DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2022) Tower Parts Diagram

Stand-On Mower

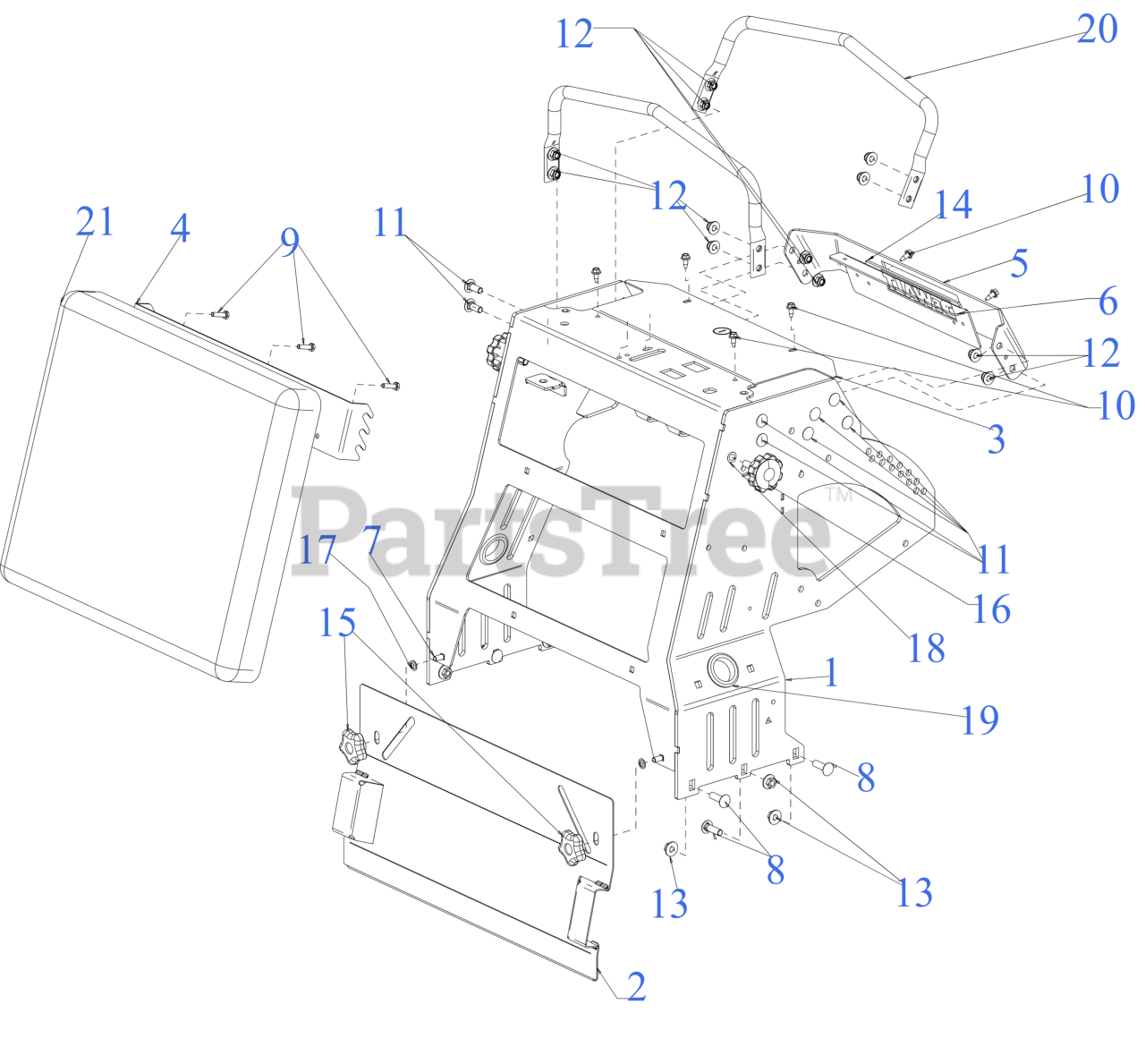

Tower Parts Diagram

  • Title

1

MTD 680-00674B

CONTROL BASE

Note: *CHOOSE COLOR WHEN ORDERING*

$520.99

$

Usually ships in 3-6 days

0

2

MTD 680-01634

PANEL COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$149.99

$

Usually ships in 3-6 days

0

3

MTD 703-12728A

DASH PANEL

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0

4

MTD 703-13441A

PAD MOUNT

Note: *CHOOSE COLOR WHEN ORDERING*

$34.99

$

Usually ships in 3-6 days

0

5

MTD 703-27557

CONTROL BASE (FRONT)

Note: *CHOOSE COLOR WHEN ORDERING*

$45.99

$

Usually ships in 3-6 days

0

6

MTD 703E27558

DASH SUPPORT

$17.99

$

Usually ships in 3-6 days

0

7

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

9

MTD 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 14

0

10

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 14

0

14

MTD 719-07450

DEWALT LOGO (DIE CAST)

$28.99

$

Usually ships in 3-6 days

0

15

MTD 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

16

MTD 720-05076

STAR KNOB 3/8-16

$18.99

$

Usually ships in 3-6 days

0

17

MTD 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

18

MTD 728-05168

RIV NUT 3/8-16

$3.49

$

Usually ships in 3-6 days

0

19

MTD 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$4.99

$

Usually ships in 3-6 days

0

20

MTD 749-07354

TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

$60.99

$

Usually ships in 3-6 days

0

21

MTD 757P06092

LEG PAD

$437.99

$

Usually ships in 3-6 days

0
