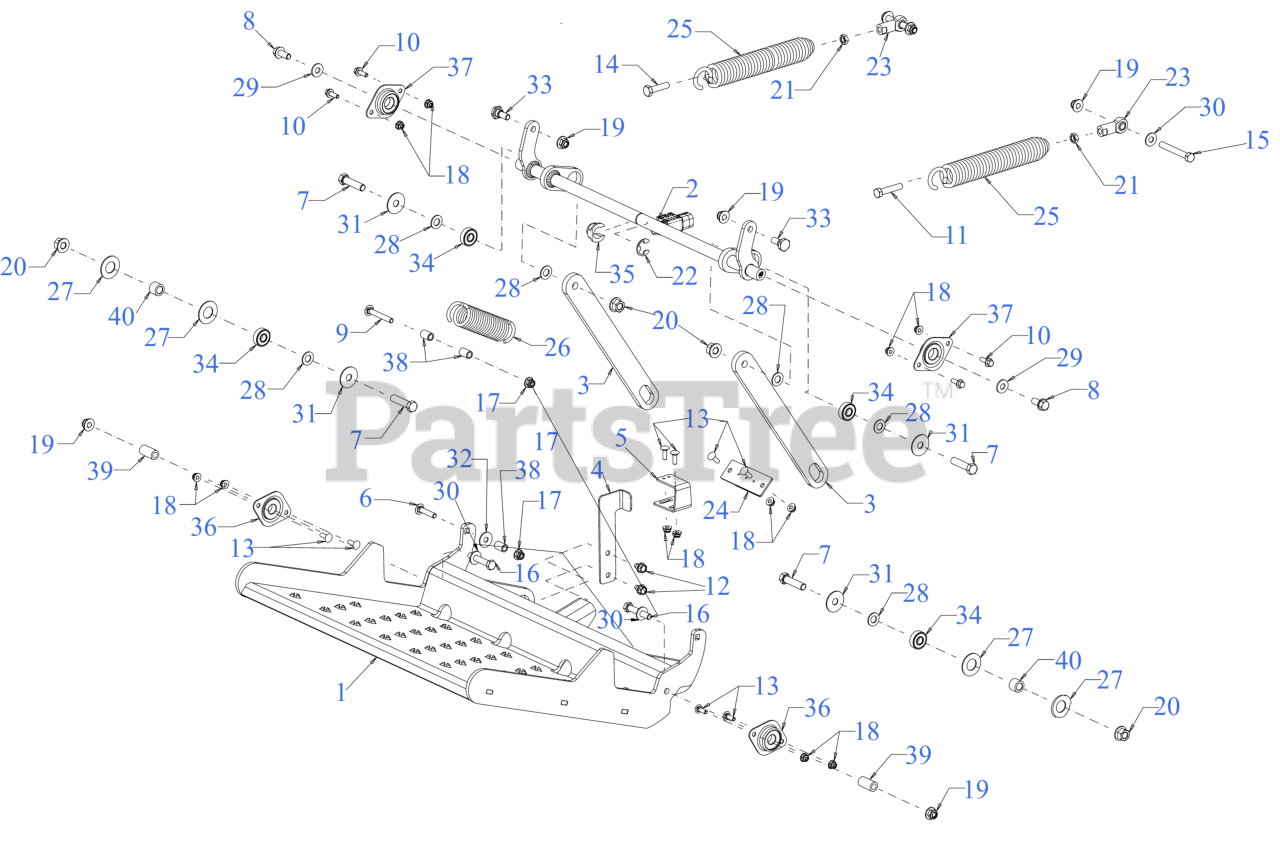

DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2022) Platform Parts Diagram

Stand-On Mower

Platform Parts Diagram

  • Title

1

MTD 680-00715A

PLATFORM ASSEMBLY

$457.99

$

Usually ships in 3-6 days

0

2

MTD 680E01514

ROLLER LINK

$109.99

$

Usually ships in 3-6 days

0

3

MTD 703E19407

SUSPENSION LINK

$16.99

$

Usually ships in 3-6 days

0

4

MTD 703E19785

SWITCH BRACKET

$8.99

$

Usually ships in 3-6 days

0

5

MTD 703-26760

OPC MOUNT BRACKET
(Superseded to 703E26760)

$15.99

$

Usually ships in 3-6 days

0

6

MTD 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

7

MTD 710-04092

SCREW 7/16-20 x 1.75 GR 5

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0572

BOLT 5/16-18 x 2.50 GR1

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-04666

SCREW 1/4-20 x .75 GR5

$6.99

$

In Stock, only 3 left!

0

11

MTD 710-0539

SCREW 3/8-24 x 1.75 GR5

$4.99

$

In Stock, Qty 12

0

12

MTD 710-0607

SCREW 5/16-18 x .500

$6.99

$

In Stock, Qty 11

0

16

MTD 710-3096

SCREW 3/8-16 x 2.0 GR 8

$7.99

$

In Stock, only 1 left!

0

13

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-1044

SCREW 3/8-24 x 1.50 GR8

$3.99

$

In Stock, only 1 left!

0

15

MTD 710-3022

SCREW 3/8-16 x 2.75 GR5

$4.99

$

In Stock, Qty 7

0

17

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

19

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

20

MTD 712-0459

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

22

MTD 716-0231

E-RING

$3.99

$

In Stock, Qty 20+

0

23

MTD 723-04038

ROD END 3/8 ID

$60.99

$

Usually ships in 3-6 days

0

24

MTD 731-04016

SUSPENSION BUMPER

$45.99

$

Usually ships in 3-6 days

0

25

MTD 732-04959

ADJUSTMENT SPRING

$53.99

$

Usually ships in 3-6 days

0

26

MTD 732P07126

EXTENSION SPRING 1.478 x 5.729

$17.99

$

Usually ships in 3-6 days

0

27

MTD 736-0188

FLAT WASHER .760ID X1.49OD x .06

$4.49

$

In Stock, Qty 20+

0

28

MTD 936-0226

FLAT WASHER

$3.99

$

In Stock, only 1 left!

0

29

MTD 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

30

MTD 736-0267

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

31

MTD 936-0406

FLAT WASHER

$6.99

$

In Stock, Qty 11

0

32

MTD 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, Qty 20+

0

33

MTD 738-0380

SHOULDER SCREW

$7.99

$

In Stock, only 1 left!

0

34

MTD 741P04245

BALL BEARING

$4.99

$

Usually ships in 3-6 days

0

35

MTD 741-04504

HEX FLANGE SPLIT BEARING

$8.99

$

Usually ships in 3-6 days

0

36

MTD 741-04566

BALL BEARING

$15.99

$

Usually ships in 3-6 days

0

37

MTD 741-04569

BALL BEARING

$25.99

$

Usually ships in 3-6 days

0

38

MTD 750-06170

SLEEVE .33X.50X.75 LG

$5.49

$

Usually ships in 3-6 days

0

39

MTD 750-08410

SPACER .380x.624x1.040

$4.49

$

Usually ships in 3-6 days

0

40

MTD 750-08850

SPACER .465x.760x.550

$3.99

$

Usually ships in 3-6 days

0
