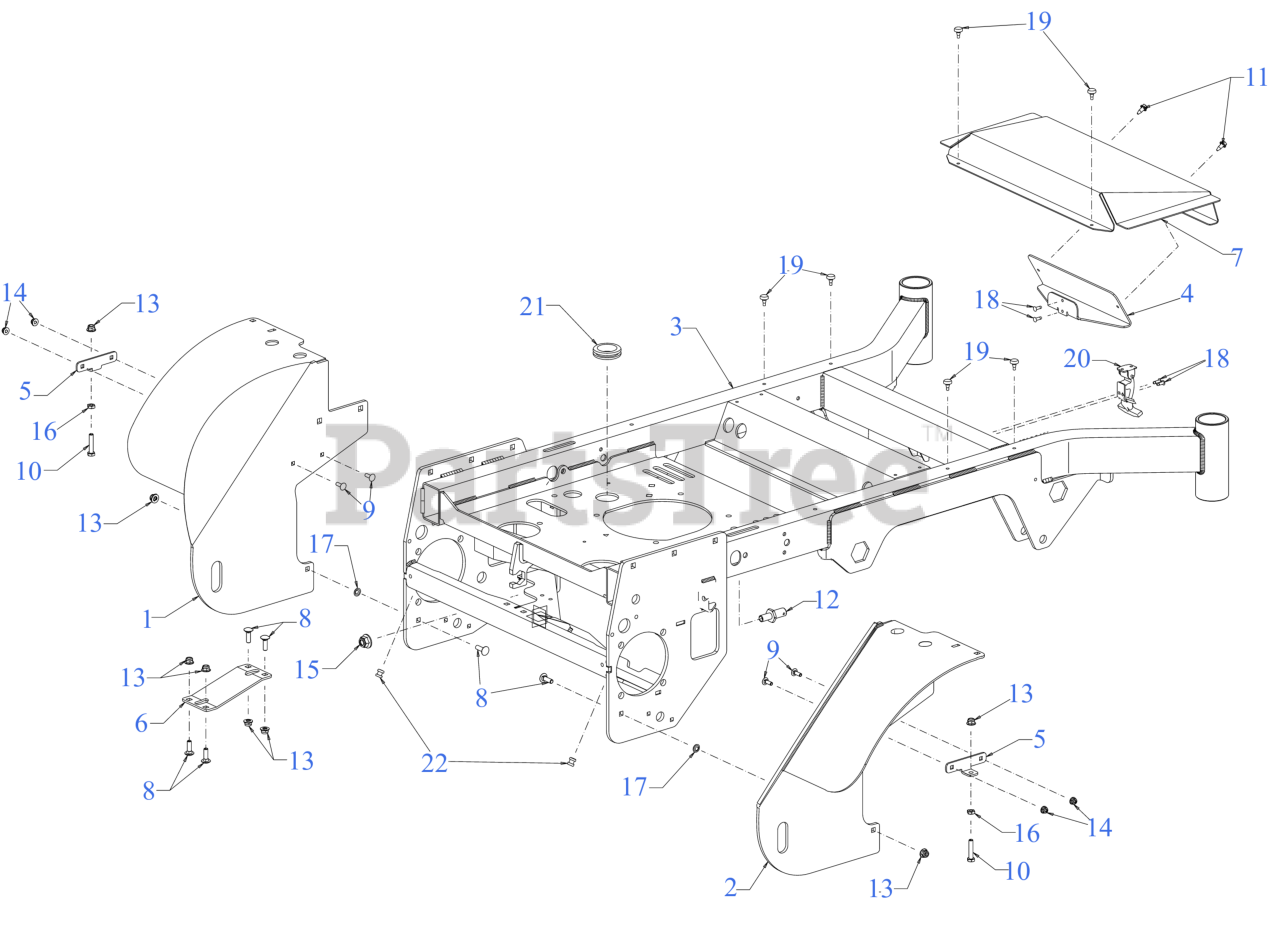

DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2021) Frame Parts Diagram

Stand-On Mower

Frame Parts Diagram

  • Title

1

MTD 680-02634

FENDER (LH)

$258.99

$

Usually ships in 3-6 days

0

2

MTD 680-02635

FENDER (RH)

$258.99

$

Usually ships in 3-6 days

0

3

MTD 680-02694

FRAME

$2446.99

$

Usually ships in 3-6 days

0

4

MTD 703E15641

BACK PLATE

$24.99

$

Usually ships in 3-6 days

0

5

MTD 703E20184

BRAKE SPRING BRACKET (RH)

$9.49

$

Usually ships in 3-6 days

0

6

MTD 703E21504

SUPPORT BRACKET

$14.99

$

Usually ships in 3-6 days

0

7

MTD 703-26624

FRONT COVER

$92.99

$

Usually ships in 3-6 days

0

8

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

12

MTD 711-05604

PIN

$11.99

$

In Stock, Qty 14

0

13

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

15

MTD 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-3007

HEX NUT

$6.99

$

In Stock, only 3 left!

0

17

MTD 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

18

MTD 928-0123

POP RIVET

$4.99

$

Usually ships in 3-6 days

0

19

MTD 735-0199A

RUBBER BUMPER

$7.99

$

In Stock, only 4 left!

0

20

MTD 935-04038

HOOD LATCH ASSEMBLY

$15.99

$

In Stock, Qty 14

0

21

MTD 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$4.99

$

Usually ships in 3-6 days

0

22

MTD 735-06978

GROMMENT

$2.99

$

Usually ships in 3-6 days

0
