DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2021) Discharge Chute Parts Diagram

Stand-On Mower

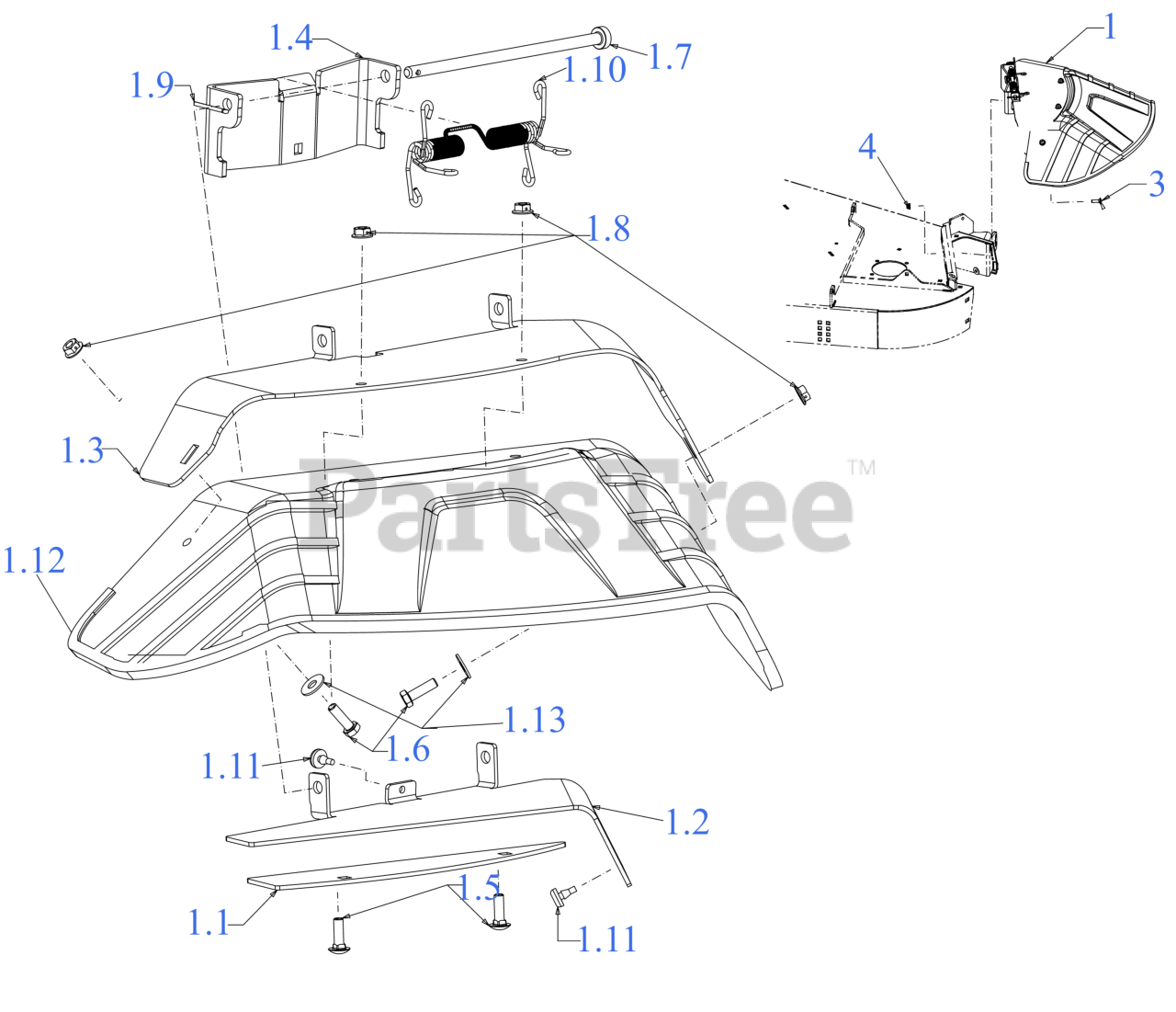

Discharge Chute Parts Diagram

  • Title

1

MTD 631-08120

DISCHARGE CHUTE
(Superseded to 631P08120)

$245.99

$

Usually ships in 3-6 days

0

1.1

MTD 703E26124

CHUTE BRACKET (BOTTOM)

$12.99

$

Usually ships in 3-6 days

0

1.2

MTD 703E26125

CHUTE BRACKET (OPENING)

$37.99

$

Usually ships in 3-6 days

0

1.3

MTD 703E26126

CHUTE BRACKET (TOP)

$53.99

$

Usually ships in 3-6 days

0

1.4

MTD 703-26729

CHUTE BRACKET
(Superseded to 703E26729)

$28.99

$

Usually ships in 3-6 days

0

1.5

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

1.6

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

1.7

MTD 711-09482

HINGE PIN .375 x 9.0

$12.99

$

Usually ships in 3-6 days

0

1.8

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

1.9

MTD 714-0470

COTTER PIN

$4.49

$

In Stock, Qty 20+

0

1.10

MTD 732-07586

TORSION SPRING

$5.49

$

Usually ships in 3-6 days

0

1.11

MTD 735-0199A

RUBBER BUMPER

$7.99

$

In Stock, only 4 left!

0

1.12

MTD 735-06238A

FIBER FORMED CHUTE

$121.99

$

In Stock, only 1 left!

0

1.13

MTD 736-0159

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

4

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0
