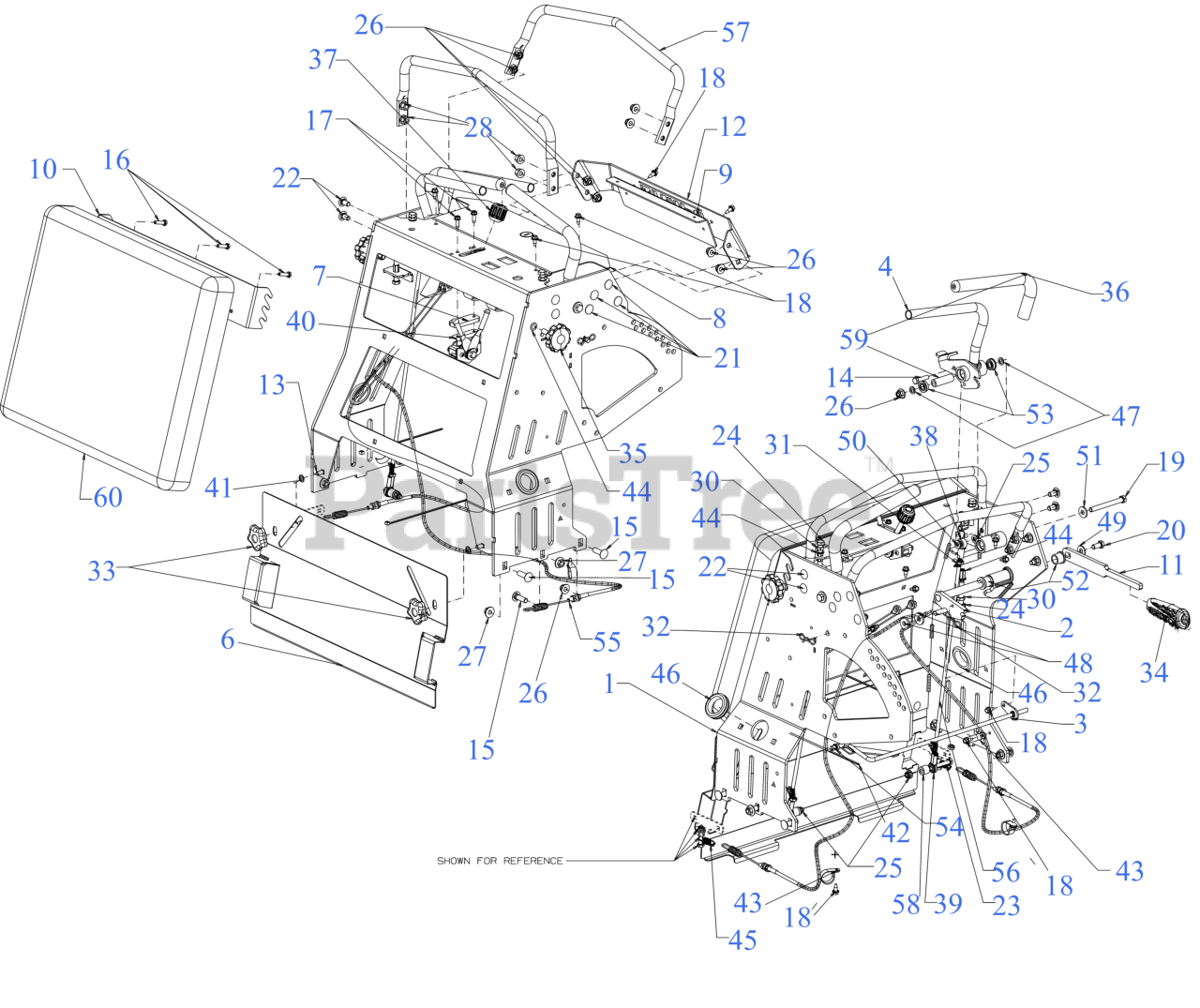

DXGX554P (53AL8CS7038) - DeWALT Stand-On Mower (2021) Controls Parts Diagram

Stand-On Mower

Controls Parts Diagram

  • Title

1

MTD 680-00674B

CONTROL BASE

$520.99

$

Usually ships in 3-6 days

0

2

MTD 680E00914

BRAKE PIVOT

$74.99

$

Usually ships in 3-6 days

0

3

MTD 680E01194

CONTROL LOCK ROD

$57.99

$

Usually ships in 3-6 days

0

4

MTD 680-01274B

CONTROL HANDLE (LH)
(Superseded to 680P01274B)

$

$

Not available

4

MTD 680-01275B

CONTROL HANDLE (RH)
(Superseded to 680P01275B)

$

$

Not available

6

MTD 680-01634

PANEL COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$149.99

$

Usually ships in 3-6 days

0

7

MTD 703-10399A

THROTTLE CABLE SPACER

Note: *CHOOSE COLOR WHEN ORDERING*

$6.99

$

Usually ships in 3-6 days

0

8

MTD 703-12728

DASH PANEL

Note: *CHOOSE COLOR WHEN ORDERING*

$22.99

$

Usually ships in 3-6 days

0

9

MTD 703E13401

DASH SUPPORT

$16.99

$

Usually ships in 3-6 days

0

10

MTD 703-13441A

PAD MOUNT

$34.99

$

Usually ships in 3-6 days

0

11

MTD 703E20676

BRAKE HANDLE

$18.99

$

Usually ships in 3-6 days

0

12

MTD 703-26684

CONTROL BASE (FRONT)

$35.99

$

Usually ships in 3-6 days

0

13

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

14

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 19

0

15

MTD 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

16

MTD 710-0597

SCREW 1/4-20 X1.00 GR5

$3.99

$

In Stock, Qty 13

0

17

MTD 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

19

MTD 710-3085

SCREW 3/8-16 x 3.50 GR5

$4.49

$

In Stock, Qty 20+

0

20

MTD 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

21

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-3178

CARRIAGE BOLT 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-3180

SCREW 5/16-18 x 1.75 GR5

$5.49

$

In Stock, Qty 20+

0

24

MTD 710-3184A

SCREW 3/8-16 x 2 GR5

$6.99

$

Usually ships in 3-6 days

0

25

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-05007

NUT-CTRLCK FLG HEX

$4.49

$

In Stock, Qty 20+

0

29

MTD 712-05941

HEX JAM NUT 5/16-24 GR5

$2.49

$

Usually ships in 3-6 days

0

30

MTD 712-3008

HEX NUT

$4.99

$

In Stock, Qty 16

0

31

MTD 712-3025

HEX JAM NUT 5/16-24 GR 5

$7.49

$

Usually ships in 3-6 days

0

32

MTD 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 12

0

33

MTD 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

34

MTD 720-04139B

GRIP

$18.99

$

In Stock, Qty 10

0

35

MTD 720-05076

STAR KNOB 3/8-16

$18.99

$

Usually ships in 3-6 days

0

36

MTD 720P05321

GRIP .75 ID X 1.00 OD

$11.99

$

Usually ships in 3-6 days

0

37

MTD 720-05961

BALL KNOB
(Superseded to 720P05961)

$11.99

$

Usually ships in 3-6 days

0

38

MTD 723-04039

ROD END 5/16 ID

$57.99

$

Usually ships in 3-6 days

0

39

MTD 723-05004

END ROD- 5/16 (LH)

$51.99

$

Usually ships in 3-6 days

0

40

MTD 925-07443

ELECTRONIC THROTTLE CONTROL

$297.99

$

Usually ships in 3-6 days

0

41

MTD 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

42

MTD 726-0317

TIE CABLE 8.5 LG

$4.99

$

Usually ships in 3-6 days

0

43

MTD 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

44

MTD 728-05168

RIV NUT 3/8-16

$3.49

$

Usually ships in 3-6 days

0

45

MTD 732-05147

EXTENSION SPRING .500 OD x 1.71

$5.49

$

Usually ships in 3-6 days

0

46

MTD 735-05223

RUBBER GROMMET (1.50X2.13X.563)

$4.99

$

Usually ships in 3-6 days

0

47

MTD 736-0140

FLAT WASHER

$7.49

$

In Stock, Qty 6

0

48

MTD 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 4 left!

0

49

MTD 736-0262

FLAT WASHER .385X.870X.090

$3.99

$

In Stock, Qty 20+

0

50

MTD 736-0275

FLAT WASHER

$6.99

$

Usually ships in 3-6 days

0

51

MTD 736-3072

WASHER

$4.49

$

In Stock, Qty 20+

0

52

MTD 741-0353

FLANGE BEARING

$11.99

$

In Stock, Qty 20+

0

53

MTD 741-04568

FLANGE BEARING

$38.99

$

Usually ships in 3-6 days

0

54

MTD 741-1140

BUSHING .3135ID

$6.99

$

Usually ships in 3-6 days

0

55

MTD 946-05103A

BRAKE CABLE

$42.99

$

In Stock, only 1 left!

0

56

MTD 747-07590

CONTROL ROD

$19.99

$

Usually ships in 3-6 days

0

57

MTD 749-07354

TUBE

Note: *CHOOSE COLOR WHEN ORDERING*

$60.99

$

Usually ships in 3-6 days

0

58

MTD 750-06201

SPACER .34 x .75 x .63 LG

$4.49

$

Usually ships in 3-6 days

0

59

MTD 750-07430

SPACER .379 x .63 x 1.957

$4.99

$

Usually ships in 3-6 days

0

60

MTD 757-06092

LEG PAD
(Superseded to 757P06092)

$437.99

$

Usually ships in 3-6 days

0
