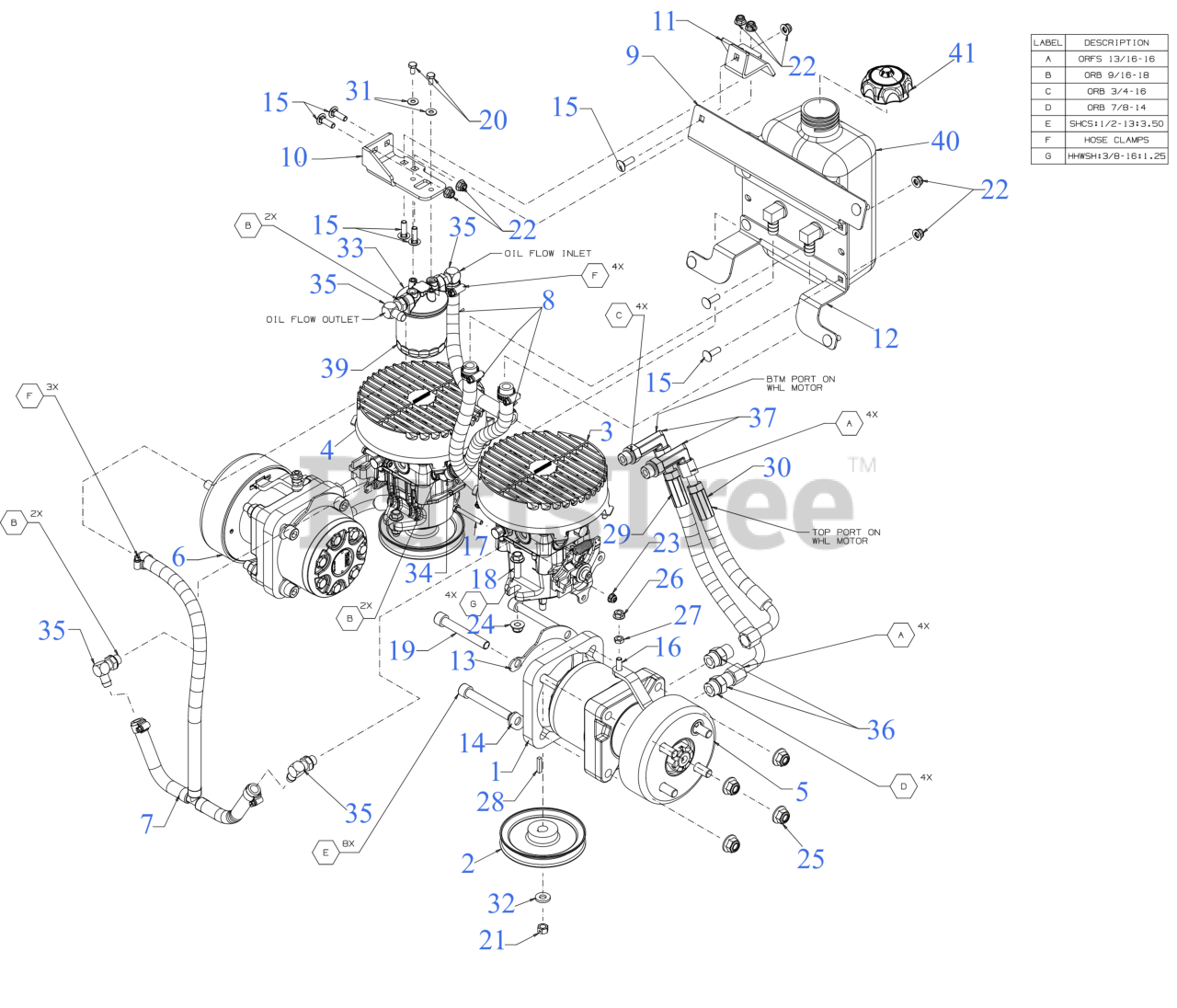

DXGX548P (53AL8CS6038) - DeWALT Stand-On Mower (2021) Drive Parts Diagram

Stand-On Mower

Drive Parts Diagram

  • Title

1

MTD 01009775

WHEEL SPACER MOTOR

$58.99

$

Usually ships in 3-6 days

0

2

MTD 02001172

PULLEY-HYDRO PUMP

$90.99

$

Usually ships in 3-6 days

0

3

MTD 618P08253

HYDRO PUMP (RH)

Note: (See Separate Breakdown)

$1907.99

$

Usually ships in 3-6 days

0

4

MTD 618P08254

HYDRO PUMP (LH)

Note: (See Separate Breakdown)

$1907.99

$

Usually ships in 3-6 days

0

5

MTD 618P08333

HYDRO MOTOR (RH)

Note: (See Separate Breakdown)

$2847.99

$

Usually ships in 3-6 days

0

6

MTD 618P08334

HYDRO MOTOR (LH)

Note: (See Separate Breakdown)

$2847.99

$

Usually ships in 3-6 days

0

7

MTD 627-00101A

HYDRO DRAIN HOSE

$

$

Not available

7

MTD 02002392

HOSE CLAMP

$10.99

$

Usually ships in 3-6 days

0

8

MTD 627-00121

HYDRO HOSE ASM 11"

$32.99

$

Usually ships in 3-6 days

0

9

MTD 703E13005

OIL RESERVOIR BRACKET

$22.99

$

Usually ships in 3-6 days

0

10

MTD 703E14981

FILTER MOUNT BRACKET

$19.99

$

Usually ships in 3-6 days

0

11

MTD 703E15061

BRAKE CABLE MOUNT BRACKET

$18.99

$

Usually ships in 3-6 days

0

12

MTD 703E15101

OIL RESERVOIR BRACKET (LOWER)

$24.99

$

Usually ships in 3-6 days

0

13

MTD 703E24624

WHEEL MOTOR SHIM PLATE

$7.49

$

Usually ships in 3-6 days

0

14

MTD 703E24625

WHEEL MOTOR LOWER SHIM PLATE

Note: 2

$5.99

$

Usually ships in 3-6 days

0

15

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-0501

SCREW 1/4-20 x 2 GR5

$7.49

$

Usually ships in 3-6 days

0

18

MTD 710-06359A

SCREW 3/8-16 x 1.25 GR5

$4.99

$

Usually ships in 3-6 days

0

19

MTD 710-09534

HEX CAP SCREW 1/2"-13x3.5

$4.99

$

Usually ships in 3-6 days

0

20

MTD 710-3013

SCREW 1/4-20X.5 GR5

$4.99

$

In Stock, Qty 11

0

21

MTD 712-0214

HEX NUT

$6.49

$

In Stock, only 3 left!

0

22

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

23

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

25

MTD 712-04150

NUT

$4.49

$

In Stock, Qty 20+

0

26

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-3007

HEX NUT

$6.99

$

In Stock, only 3 left!

0

28

MTD 914-0105

SQUARE KEY 3/16 x 1.00

$3.99

$

Usually ships in 3-6 days

0

29

MTD 727-05214

HYDRO PUMP HOSE

$111.99

$

In Stock, only 1 left!

0

30

MTD 727-05294

HYDRO PUMP HOSE - TOP

$109.99

$

In Stock, only 1 left!

0

31

MTD 736-04446

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

32

MTD 736-3004

FLAT WASHER

$4.99

$

In Stock, Qty 6

0

33

MTD 937-04011

OIL FILTER ADAPTER

$47.99

$

Usually ships in 3-6 days

0

34

MTD 737-05149

45 DEGREE FITTING (6 ORB X-8 BEAD)

Note: 2

$29.99

$

Usually ships in 3-6 days

0

35

MTD 737-05590

ELBOW FITTING

$53.99

$

Usually ships in 3-6 days

0

36

MTD 737P05711

HYDRO FITTING 8 ORFS x 10 ORB

$15.99

$

In Stock, only 1 left!

0

37

MTD 737P05712

ELBOW FITTING

$43.99

$

Usually ships in 3-6 days

0

39

MTD HG-51563

HYDRAULIC FILTER
(Superseded to 751-17566)

$

$

Not available

40

MTD 751P17606

HYDRO OIL TANK (1 GAL)

$218.99

$

Usually ships in 3-6 days

0

41

MTD 751P17626

HYDRO OIL TANK CAP

$

$

Not available
