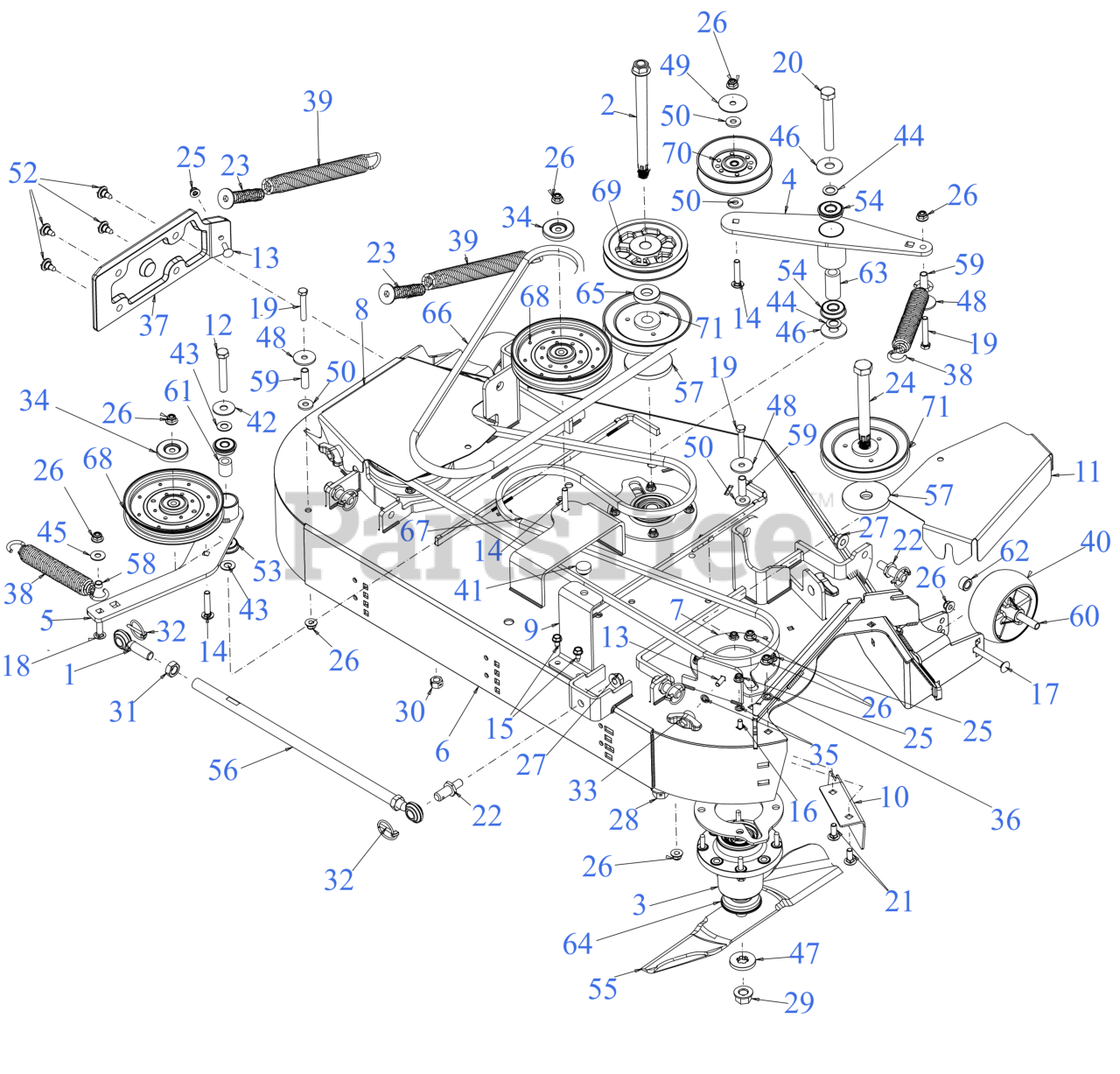

DXGX548P (53AL8CS6038) - DeWALT Stand-On Mower (2021) Deck Parts Diagram

Stand-On Mower

Deck Parts Diagram

  • Title

1

MTD 01007487

MALE ROD END

$89.99

$

In Stock, only 3 left!

0

2

MTD 611-05847

SPINDLE SHAFT

$59.99

$

Usually ships in 3-6 days

0

3

MTD 618-07406

SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$186.99

$

In Stock, only 2 left!

0

4

MTD 680E00874

IDLER BRACKET

$94.99

$

Usually ships in 3-6 days

0

5

MTD 680E01994

48" DECK IDLER BRACKET

$79.99

$

Usually ships in 3-6 days

0

6

MTD 680-02595

48" FAB DECK

Note: *CHOOSE COLOR WHEN ORDERING*

$1362.99

$

Usually ships in 3-6 days

0

7

MTD 703E10057A

SPINDLE SUPPORT PLATE TOP & BOTTOM

$25.99

$

Usually ships in 3-6 days

0

8

MTD 703-14662

BELT COVER (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$44.99

$

Usually ships in 3-6 days

0

9

MTD 703-15943

DECK STOP BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$14.99

$

Usually ships in 3-6 days

0

10

MTD 703-26531

BAFFLE

$14.99

$

Usually ships in 3-6 days

0

11

MTD 703-26532

48" BELT COVER (RH)

$44.99

$

Usually ships in 3-6 days

0

12

MTD 710-0182A

SCREW-HEX 1/2-13 x 3.00

$7.99

$

In Stock, only 2 left!

0

13

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 12

0

14

MTD 710-04157

CARRIAGE BOLT 3/8-16 x 2

$8.99

$

In Stock, only 1 left!

0

15

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-05384

CARRIAGE BOLT 3/8-16 x 4.00 GR5

$5.49

$

In Stock, Qty 19

0

18

MTD 710-05408

CARRIAGE BOLT 3/8-16 X1.25 GR5

$3.99

$

Usually ships in 3-6 days

0

19

MTD 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

20

MTD 710-3151A

SCREW 5/8-18X4.5 GR5

$18.99

$

Usually ships in 3-6 days

0

21

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

22

MTD 711-05604

PIN

$11.99

$

In Stock, Qty 14

0

23

MTD 711-06667

SPRING INSERT SCREW

$39.99

$

In Stock, only 2 left!

0

24

MTD 711-06787

SPINDLE SHAFT

$33.99

$

In Stock, only 1 left!

0

25

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04150

NUT

$4.49

$

In Stock, only 1 left!

0

28

MTD 712-04327

NUT

$7.49

$

Usually ships in 3-6 days

0

29

MTD 712-05203

FLANGE NUT - 5/8-18 GDE 8

$7.49

$

In Stock, Qty 20+

0

30

MTD 712-3022

HEX NUT CTR LK 1/2-13

$3.99

$

In Stock, Qty 8

0

31

MTD 712-3056

HEX JAM NUT 5/8-18

$4.99

$

In Stock, only 3 left!

0

32

MTD 753-04070

LYNCH PIN .1875

$9.99

$

In Stock, Qty 20+

0

33

MTD 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 5

0

34

MTD 721-04516

PULLEY CAP

$14.99

$

In Stock, only 2 left!

0

35

MTD 726-0201

PUSH NUT

$6.99

$

Usually ships in 3-6 days

0

36

MTD 712-0229

PUSH NUT

$3.99

$

In Stock, Qty 20+

0

37

MTD 731-11926

DECK SKID PLATE (LH)

$50.99

$

Usually ships in 3-6 days

0

38

MTD 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 12

0

39

MTD 732-05476

EXTENTION SPRING 1.20 x 11.35

$34.99

$

In Stock, only 3 left!

0

40

MTD 734-04155

DECK WHEEL

$20.99

$

In Stock, Qty 20+

0

40

MTD OEM-734-04155

WHEELS-DELUXE 5"

Note: Retail Packaged Part

$23.99

$

Usually ships in 3-6 days

0

41

MTD 735-05058

RUBBER BUMPER 1.000 x .313

$3.49

$

Usually ships in 3-6 days

0

42

MTD 736-0208

WASHER .51 x 1.5 x .07

$4.49

$

In Stock, Qty 9

0

43

MTD 736-0272

FLAT WASHER .510 x .995

$4.99

$

In Stock, Qty 20+

0

44

MTD 736-0290

FLAT WASHER

$6.99

$

In Stock, only 3 left!

0

45

MTD 736-04183

WASHER-.395 x 1.0 x .62

$4.99

$

In Stock, only 1 left!

0

46

MTD 736-05210

FLAT WASHER 0.635xX1.755x0.110

$10.99

$

Usually ships in 3-6 days

0

47

MTD 736-05223A

FLAT WASHER - SPECIAL

$6.99

$

In Stock, Qty 15

0

48

MTD 736-3039

FLAT WASHER .406X1.500X.105

$5.49

$

In Stock, Qty 7

0

49

MTD 736-3040

HUB CAP WASHER .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

50

MTD 736-3052

FLAT WASHER .406ID X1.0 OD

$4.49

$

In Stock, Qty 20+

0

52

MTD 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

Usually ships in 3-6 days

0

53

MTD 741-05247

ROLLER BEARING .5X1.37X.44

$12.99

$

In Stock, Qty 5

0

54

MTD 941-0563

BALL BEARING W/RET

$36.99

$

In Stock, Qty 11

0

55

MTD 742P05534

17" BLADE

$35.99

$

In Stock, only 3 left!

0

56

MTD 747E10270

TUBE .565 X .750 X 18.75"LG
(Superseded to 747-10270)

$

$

Not available

57

MTD 748-05174

DECK SPINDLE SPACER
(Superseded to 748-05174A)

$11.99

$

Usually ships in 3-6 days

0

58

MTD 750-0526

SPACER

$4.99

$

In Stock, only 1 left!

0

59

MTD 750-05673

SPACER

$8.99

$

Usually ships in 3-6 days

0

60

MTD 750-06199

SPACER .38X.49X3.05LG

$8.49

$

In Stock, only 3 left!

0

61

MTD 750-06330

SPACER 0.51 x 0.88 x 1.00

$6.99

$

In Stock, only 4 left!

0

62

MTD 750-0664

SPACER-.505 1D

$6.99

$

In Stock, only 2 left!

0

63

MTD 750-06716

SPACER 0.63 x 1.00 x 2.01

$6.99

$

In Stock, only 1 left!

0

64

MTD 750-06749

SPACER 0.790 x 2.75 x 0.486
(Superseded to 750-06749A)

$13.99

$

In Stock, Qty 5

0

65

MTD 750-10830

SPACER

$6.49

$

Usually ships in 3-6 days

0

66

MTD 754P06034

BELT B SEC x 87.30

$87.99

$

Usually ships in 3-6 days

0

67

MTD 754P06514

BELT B SEC X 109.9

$115.99

$

Usually ships in 3-6 days

0

68

MTD 756-04487

IDLER PULLEY

$66.99

$

In Stock, only 1 left!

0

69

MTD 756-04497

DRIVE PULLEY

$127.99

$

Usually ships in 3-6 days

0

70

MTD 756-04522

IDLER PULLEY 5.06 OD

$39.99

$

In Stock, Qty 5

0

71

MTD 756-06784

V-PULLEY 6.426"

$41.99

$

Usually ships in 3-6 days

0
