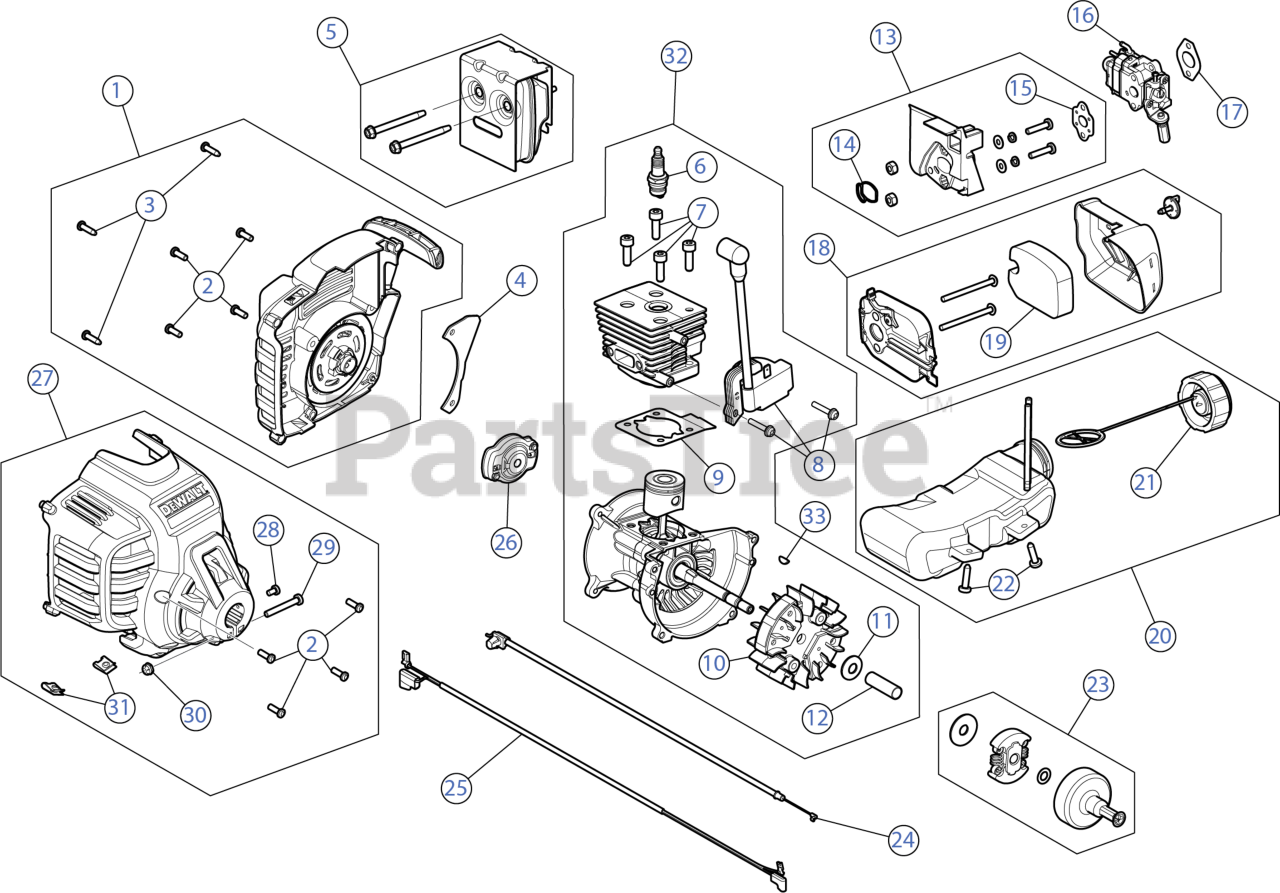

DXGST227SS (41DD27SC939) - DeWALT String Trimmer Engine Assembly Parts Diagram

String Trimmer

Engine Assembly Parts Diagram

  • Title

1

MTD 753-10928

STARTER HOUSING 27CC

Note: (Incl. 2 & 3)

$21.99

$

In Stock, Qty 20+

0

2

MTD 791-182195

SCREW #10-24X11/16 T-25

$7.49

$

In Stock, Qty 20+

0

3

MTD 710-04194

SCREW 8-16 x 3/4

$4.49

$

In Stock, Qty 20+

0

4

MTD 731-21835

STARTER GUARD

$3.49

$

In Stock, only 2 left!

0

5

MTD 753-08745

MUFFLER ASSEMBLY

$26.99

$

In Stock, only 1 left!

0

6

MTD 753-06847

SPARK PLUG

$7.49

$

In Stock, Qty 20+

0

7

MTD 710-04715

SCREW 1/4 x 20 x .8125

$6.99

$

Usually ships in 3-6 days

0

8

MTD 753-10924

MODULE 27CC

$30.99

$

Usually ships in 3-6 days

0

9

MTD 753-06827

GASKET CYL

$3.49

$

In Stock, only 1 left!

0

10

MTD 753-06246

FLYWHEEL ASSEMBLY 27CC

$21.99

$

In Stock, only 1 left!

0

11

MTD 753-06247

BELL WASHER

$3.49

$

In Stock, Qty 20+

0

12

MTD 753-06248

SPACER

$3.49

$

Usually ships in 3-6 days

0

13

MTD 753-06189

INTAKE ASSEMBLY

Note: (Incl. 14 & 15)

$7.99

$

In Stock, only 3 left!

0

14

MTD 753-06184

O-RING

$3.49

$

In Stock, Qty 20+

0

15

MTD 791-181709

CARBURETOR GASKET

$4.99

$

In Stock, Qty 20+

0

16

MTD 753-11347

CARBURETOR:27CC TRIM ROT

$44.99

$

In Stock, only 1 left!

0

17

MTD 753-06253

GASKET CARB

$3.49

$

In Stock, Qty 20+

0

18

MTD 753-10925

AIR CLEANER

Note: (Incl. 19)

$9.99

$

In Stock, Qty 20+

0

19

MTD 753-06954

AIR FILTER

$2.99

$

In Stock, Qty 20+

0

20

MTD 753-11348

FUEL TANK (W/LINE & CAP)

Note: (Incl. 21 & 22)

$16.99

$

Usually ships in 3-6 days

0

21

MTD 753-06857

FUEL CAP

$7.99

$

In Stock, only 4 left!

0

22

MTD 791-181930

SCREW:10-6 x .75

$6.99

$

In Stock, only 1 left!

0

23

MTD 753-05860

SMALL CLUTCH ASSEMBLY W/SMALL DRUM

$25.99

$

In Stock, Qty 10

0

24

MTD 746-06691

THROTTLE CABLE

$3.49

$

Usually ships in 3-6 days

0

25

MTD 753-05877

LEAD WIRES

$9.99

$

Usually ships in 3-6 days

0

26

MTD 753-06091

PAWL ASSEMBLY AC5

$9.49

$

In Stock, only 3 left!

0

27

MTD 753-10927

CLUTCH COVER

Note: (Incl. 2, 28 - 31)

$17.99

$

Usually ships in 3-6 days

0

28

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

29

MTD 9689A

SCREW

$11.99

$

In Stock, Qty 16

0

30

MTD 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

31

MTD 791-182366

NUT, TINNERMAN U-T

$5.99

$

In Stock, only 1 left!

0

32

MTD 753-11126

SHORTBLOCK

Note: (Incl. 6 - 12)

$84.99

$

Usually ships in 3-6 days

0

33

MTD 914-04016

WOODRUFF KEY #403-.125 x .375

$4.49

$

In Stock, Qty 11

0
