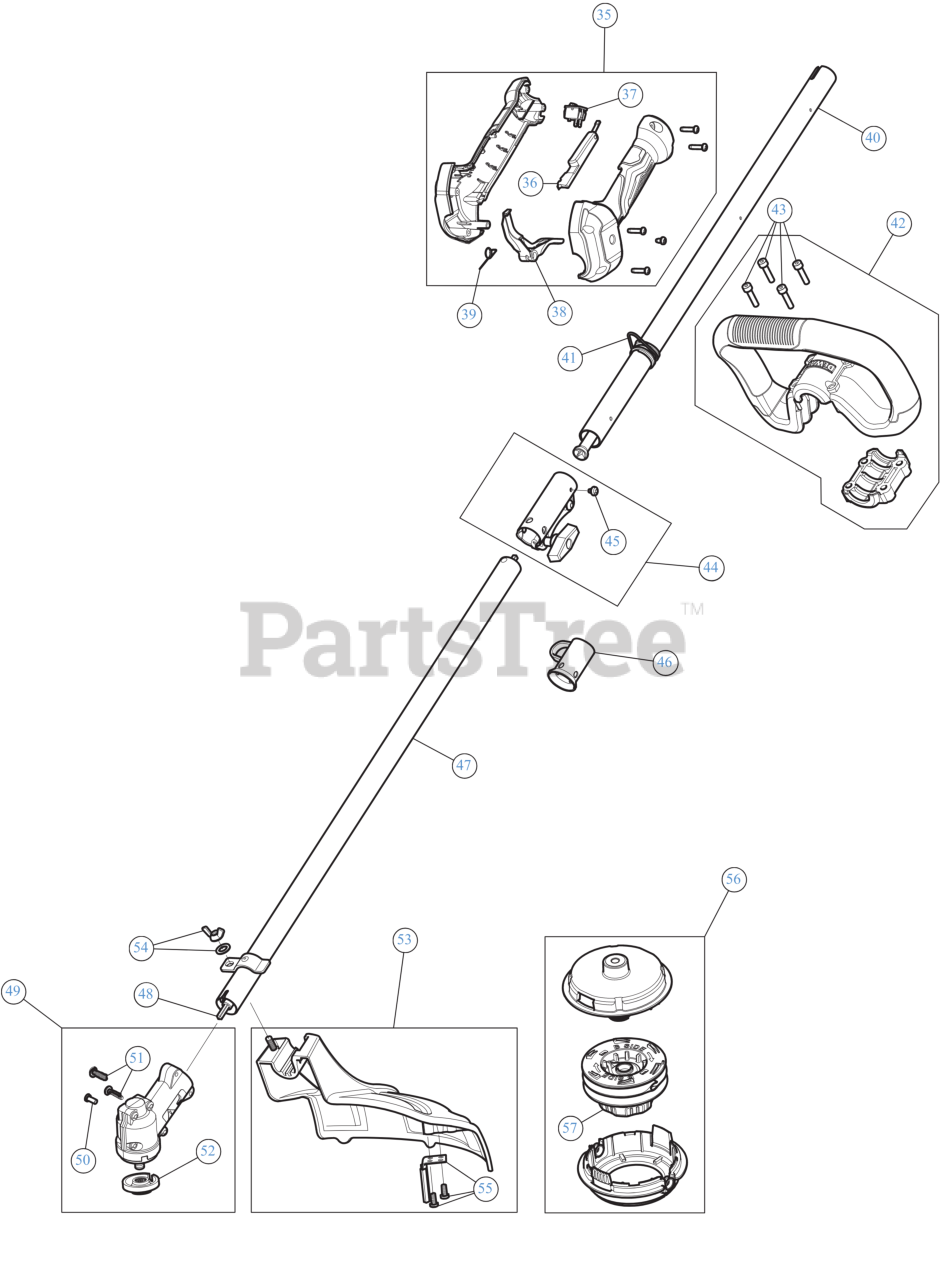

DXGST227SS (41BD27SC939) - DeWALT String Trimmer General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

35

MTD 753-10929

THROTTLE GRIP

Note: (Incl. 36 - 39)

$24.99

$

Usually ships in 3-6 days

0

36

MTD 731-21872

THROTTLE LOCK LEVER

$2.99

$

Usually ships in 3-6 days

0

37

MTD 791-182405

SW, MOMENTARY ON/O

$10.99

$

In Stock, Qty 12

0

38

MTD 731-21871

THROTTLE TRIGGER

$8.49

$

Usually ships in 3-6 days

0

39

MTD 753-05007

TRIGGER SPRING

$5.49

$

In Stock, only 2 left!

0

40

MTD 841-036143S

UPPER DRIVE SHAFT

$15.99

$

In Stock, only 1 left!

0

41

MTD 791-610327

CLAMP-SHOULDER STR

$32.99

$

Usually ships in 3-6 days

0

42

MTD BD-N680354

HANDLE

Note: (Incl. 43)

$10.99

$

Usually ships in 3-6 days

0

43

MTD BD-90614038

HANDLE BOLT

$2.49

$

Usually ships in 3-6 days

0

44

MTD 753-10964

CLICK LINK

Note: (Incl. 45)

$23.99

$

Usually ships in 3-6 days

0

45

MTD 791-182057

SCREW, 10-32X.250 TA

$4.49

$

In Stock, Qty 6

0

46

MTD 731-08926

HANGER

$2.99

$

In Stock, Qty 20+

0

47

MTD 841-036148S-1

LOWER SHAFT HOUSING

$24.99

$

Usually ships in 3-6 days

0

48

MTD 753-05267

LOWER DRIVE SHAFT

$42.99

$

In Stock, only 1 left!

0

49

MTD 753-08180

GEARBOX LCBC

Note: (Incl. 50 - 52)

$45.99

$

In Stock, only 2 left!

0

50

MTD 791-182519

SCREW, 8-32 x .312 P

$4.99

$

In Stock, only 4 left!

0

51

MTD 791-182195

SCREW #

$7.49

$

In Stock, Qty 20+

0

52

MTD 748-05052

CUTTING HEAD SPACER

$3.49

$

In Stock, Qty 20+

0

53

MTD 841-035732S

GUARD

Note: (Incl. 54 & 55)

$15.99

$

In Stock, only 1 left!

0

54

MTD 753-04282

BLADE GUARD MOUNTING HARDWARE

$25.99

$

Usually ships in 3-6 days

0

55

MTD 753-08355

BLADE ASSEMBLY W/HDW

$4.49

$

In Stock, Qty 20+

0

56

MTD 841-015718S

CUTTING HEAD (LH)

Note: (Incl. 57)

$16.99

$

In Stock, Qty 12

0

57

MTD 731-10783-51

BUMP KNOB

$4.99

$

In Stock, Qty 19

0

MTD 791-682075B

STRAP ASSEMBLY-SHOULDER

$38.99

$

Usually ships in 3-6 days

0
