DXGNR7000 (PM0167000.01) - DeWALT 7000 Series Generator (SN: 9708181A - 3000328440) (2016) PARTS MANUAL DEWALT 7000 (0L3623PMNL) Parts Diagram

7000 Series Generator

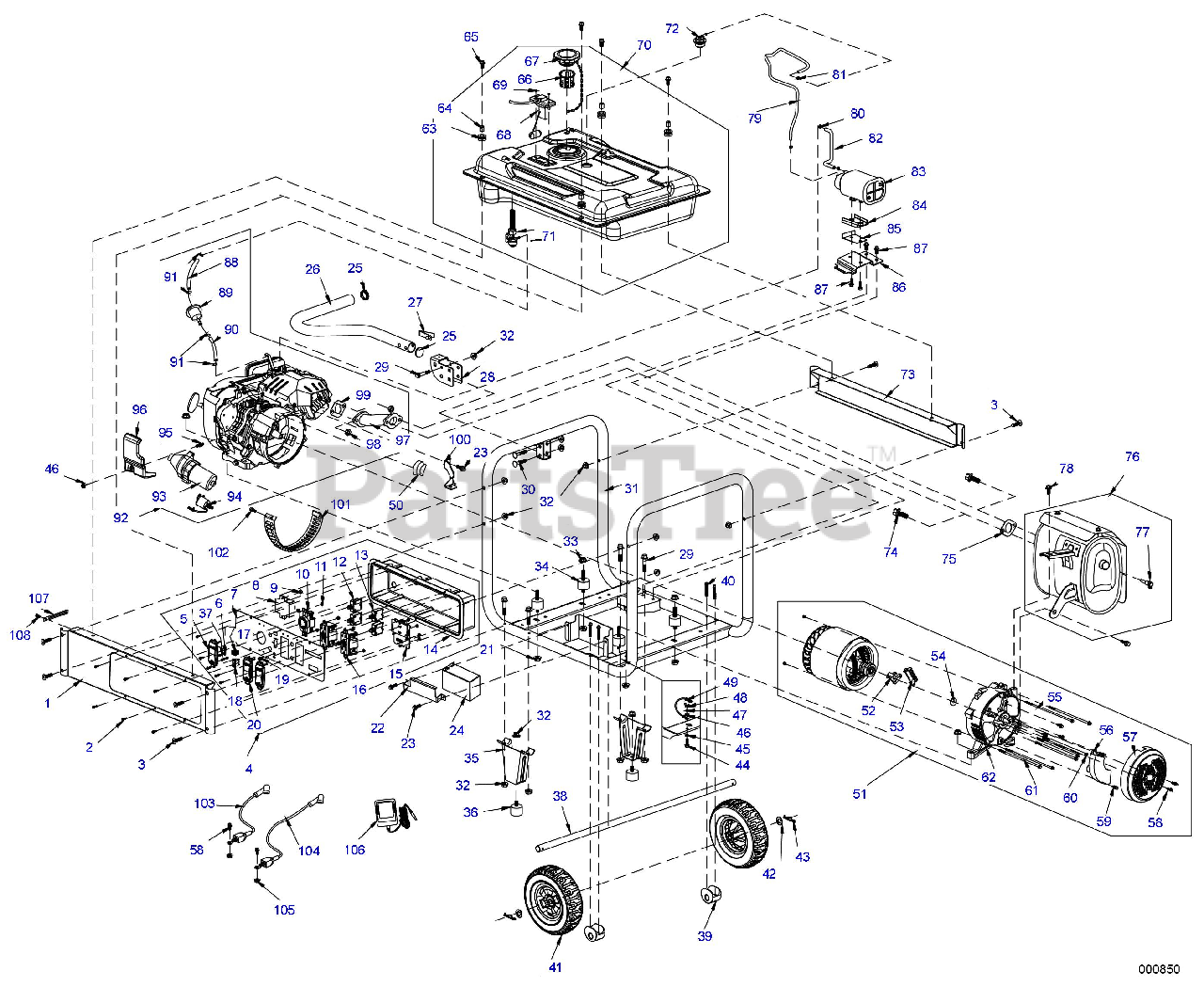

PARTS MANUAL DEWALT 7000 (0L3623PMNL) Parts Diagram

  • Title

1

0L36230110

FRAME RAIL (MATTE YELLOW)

$

$

Not available

2

Generac 0H91980159

PAN HEAD SCREW (ST4x16)

$0.99

$

Usually ships in 2-12 days

0

3

Generac 0H1780

CURVED HEAD BOLT (M8X40)

$3.49

$

Usually ships in 2-12 days

0

4

Generac 0L3031

CONTROL PANEL ASSEMBLY

$1259.99

$

Usually ships in 2-12 days

0

5

0L36230111

OUTLET COVER

$

$

Not available

6

0L36230112

NUT (M3)

$

$

Not available

7

Generac 0L3030

CONTROL PANEL FACE PLATE WELDMENT

$38.99

$

Usually ships in 2-12 days

0

8

Generac 0K2914

IDLE SPEED CONTROLLER

$102.99

$

In Stock, only 2 left!

0

9

0L36230114

NUT (M5)

$

$

Not available

10

Generac 0K95240111

RECEPTACLE

$72.99

$

Usually ships in 2-12 days

0

11

Generac 0J86620108

NUT (M4)

$0.99

$

Usually ships in 2-12 days

0

12

Generac 0K20680112

CIRCUIT BREAKER (30A)

$21.99

$

In Stock, only 2 left!

0

13

Generac 0H0265C

CIRCUIT BREAKER (20A)

$24.99

$

In Stock, only 3 left!

0

14

Generac 0K2151

CONTROL PANEL BACK COVER

$38.99

$

In Stock, only 1 left!

0

15

Generac 0L2853

POWERBAR Y20 ASSEMBLY

$344.99

$

Usually ships in 2-12 days

0

16

Generac 0K33920115

RECEPTACLE (GFCI)

$28.99

$

In Stock, only 2 left!

0

17

Generac 087968

IDLE SPEED SWITCH
(Superseded to G087968)

$1.99

$

In Stock, Qty 5

0

18

Generac 0G9549

ENGINE ON/OFF SWITCH

$18.99

$

In Stock, only 1 left!

0

19

Generac 0J4959

BATTERY CHARGER SOCKET

$59.99

$

In Stock, only 1 left!

0

20

0L36230117

OUTLET COVER

$

$

Not available

21

Generac 0K22930127

NUT (M8)

$1.49

$

In Stock, only 2 left!

0

22

Generac 0J06940ST03

BATTERY COMPARTMENT COVER

$15.99

$

Usually ships in 2-12 days

0

23

Generac 0G84420194

BOLT (M6X12)

$1.49

$

In Stock, only 4 left!

0

24

Generac 0G9449

BATTERY

$79.99

$

In Stock, only 1 left!

0

25

Generac 0H9760

HANDLE PLUG

$1.99

$

In Stock, only 3 left!

0

26

Generac 0H97560ES03

HANDLE

$29.99

$

Usually ships in 2-12 days

0

27

Generac 0J5347

SNAP BUTTON
(Superseded to 0G5442)

Note: ORDER P/N 0G5442

$1.49

$

In Stock, only 2 left!

0

28

Generac 0K65110114

HANDLE BRACKET

$9.49

$

Usually ships in 2-12 days

0

29

Generac 073144

BOLT (M8X45)
(Superseded to G073144)

$0.99

$

In Stock, Qty 9

0

30

Generac 0H1781

CARRIAGE HEAD BOLT (M8X46)

$1.49

$

In Stock, only 3 left!

0

31

0L36230118

FRAME

$

$

Not available

32

Generac 0K0098

NUT (M8)

$2.49

$

Usually ships in 2-12 days

0

33

Generac 0G84420107

NUT (M10)

$1.49

$

Usually ships in 2-12 days

0

34

Generac 0K09150110

RUBBER VIBRATION MOUNT

$14.99

$

In Stock, only 1 left!

0

35

Generac 0K81510ST03

BENT FOOT FRAME

$41.99

$

In Stock, only 1 left!

0

36

Generac 0G8478

RUBBER FOOT

$6.49

$

In Stock, only 4 left!

0

37

0L36230119

SOCKET HEAD CAP SCREW (M3X10)

$

$

Not available

38

Generac 0L3356

AXLE PIN

$34.99

$

Usually ships in 2-12 days

0

39

Generac 0J00870AL03

FIXED AXLE BLOCK

$23.99

$

Usually ships in 2-12 days

0

40

0L36230120

BOLT (M6X50)

$

$

Not available

41

Generac 0H9589C

WHEEL ASSEMBLY

$88.99

$

Usually ships in 2-12 days

0

42

0L36230121

FLAT WASHER

$

$

Not available

43

0L36230122

COTTER PIN

$

$

Not available

44

Generac 0J35220156

BOLT (M6X20)

$1.49

$

Usually ships in 2-12 days

0

45

Generac 0K0093

SPECIAL LOCK WASHER

$2.49

$

Usually ships in 2-12 days

0

46

Generac 0G84420196

NUT (M6)

$2.99

$

In Stock, Qty 6

0

47

Generac 0J47870118

FLAT WASHER

$0.99

$

Usually ships in 2-12 days

0

48

Generac 0K0094

NUT (M6)

$1.49

$

Usually ships in 2-12 days

0

49

Generac 0K20670114

GROUND WIRE ASSEMBLY

$3.49

$

Usually ships in 2-12 days

0

50

Generac 0J86620104

BAFFLE

$2.99

$

Usually ships in 2-12 days

0

51

Generac 0L2239

ROTOR AND STATOR ASSEMBLY

$2208.99

$

Usually ships in 2-12 days

0

52

Generac 0H0919

BRUSH ASSEMBLY

$4.99

$

In Stock, only 2 left!

0

53

Generac 0J83630111

WIRE CONNECTION TERMINAL

$8.99

$

Usually ships in 2-12 days

0

54

Generac 0J86620102

FLAT WASHER (M10X4)

$2.49

$

Usually ships in 2-12 days

0

55

Generac 0J83630110

STATOR BOLT (M5X204)

$12.99

$

Usually ships in 2-12 days

0

56

Generac 0H91980178

AUTOMATIC VOLTAGE REGULATOR

Note: ORDER # 0H2579B

$92.99

$

Usually ships in 2-12 days

0

57

Generac 0H3049

GENERATOR END COVER

$21.99

$

Usually ships in 2-12 days

0

58

Generac 0J4967

BOLT (M5X12)

$0.99

$

Usually ships in 2-12 days

0

59

Generac 0J4968

BOLT (M5X16)

$0.99

$

Usually ships in 2-12 days

0

60

Generac 0J8448

ROTOR BOLT (M10X255)

$25.99

$

In Stock, only 1 left!

0

61

Generac 0J9069

STATOR BOLT (M6X165)

$13.99

$

Usually ships in 2-12 days

0

62

Generac 0H91980171

REAR BEARING HOUSING

$109.99

$

Usually ships in 2-12 days

0

63

0L36230123

FUEL TANK RUBBER MOUNT

$

$

Not available

64

Generac 0H1610A

ANTI-CRUSH LINING INSERT

$1.49

$

In Stock, Qty 10

0

65

Generac 0E9507C

BOLT (M8X20)

$1.99

$

In Stock, Qty 6

0

66

Generac 0H1326

FUEL FILTER

$4.99

$

In Stock, only 3 left!

0

67

Generac 0H0958A

FUEL CAP

$24.99

$

In Stock, only 2 left!

0

68

0L36230126

FUEL SENSOR

$

$

Not available

69

0L36230127

CROSS HEAD SCREW (M5X13)

$

$

Not available

70

0L36230128

FUEL TANK (7.5 GALLON)

$

$

Not available

71

Generac 0J0974

FUEL SHUT OFF VALVE

$21.99

$

Usually ships in 2-12 days

0

72

Generac 0J7921

ROLL OVER VALVE
(Superseded to 0J7921A)

$16.99

$

In Stock, Qty 5

0

73

0L36230129

FRAME BACK RAIL (MATTE YELLOW)

$

$

Not available

74

Generac 0E9507B

BOLT (M8X25)

$3.49

$

In Stock, Qty 5

0

75

Generac 0J4691

MUFFLER EXHAUST GASKET

$2.49

$

In Stock, only 2 left!

0

76

0L36230130

MUFFLER

$

$

Not available

77

Generac 0J5207C110

SPARK ARRESTOR

$20.99

$

Usually ships in 2-12 days

0

78

Generac 0E9470

BOLT (M8X16)

$0.99

$

Usually ships in 2-12 days

0

79

0L36230131

HOSE (CARBON CANISTER TO ROLL OVER VALVE)

$

$

Not available

80

Generac 0K97920112

HOSE CLAMP

$2.49

$

Usually ships in 2-12 days

0

81

0L36230132

HOSE CLAMP

$

$

Not available

82

Generac 0K18360110

HOSE(CARBON CANISTER TO AIR BOX)

$5.49

$

Usually ships in 2-12 days

0

83

Generac 0H0957

CARBON CANISTER (682CC)

$94.99

$

Usually ships in 2-12 days

0

84

Generac 0J47650ST03

CANISTER BRACKET

$16.99

$

Usually ships in 2-12 days

0

85

Generac 0J19610ST03

LIMIT BOARD

$7.99

$

Usually ships in 2-12 days

0

86

Generac 0J1962

CANISTER BRACKET

$10.99

$

Usually ships in 2-12 days

0

87

Generac 0H58410163

BOLT (M6X12)

$1.49

$

Usually ships in 2-12 days

0

88

0L36230133

FUEL HOSE (09.6X65)

$

$

Not available

89

Generac 0G9914

FUEL FILTER

$14.99

$

In Stock, Qty 9

0

90

Generac 0G9757B

FUEL HOSE (09.6X80)

$8.49

$

In Stock, only 1 left!

0

91

Generac 0J25910115

HOSE CLAMP

$0.99

$

In Stock, Qty 9

0

92

Generac 0L4453

ENGINE 420 CC

$1783.99

$

Usually ships in 2-12 days

0

93

Generac 0H98380101

STARTER MOTOR

$201.99

$

Usually ships in 2-12 days

0

94

Generac 0H98380102

STARTER RELAY

$30.99

$

In Stock, only 1 left!

0

95

0L36230123

TWO HEADED BOLT

$

$

Not available

96

0L36230135

SENSOR COVER

$

$

Not available

97

Generac 0G8442F111

EXHAUST MANIFOLD

$22.99

$

Usually ships in 2-12 days

0

98

Generac 0J35220161

NUT (M8)

$0.99

$

In Stock, Qty 10

0

99

Generac 0G9028

CYLINDER EXHAUST GASKET

$2.99

$

Usually ships in 2-12 days

0

100

Generac 0G8442C112

AIR CLEANER BRACKET

$4.49

$

In Stock, only 1 left!

0

101

Generac 0H9761

ALTERNATOR SCROLL

$9.49

$

Usually ships in 2-12 days

0

102

Generac 0J00620100

BOLT (M5X10)

$0.99

$

In Stock, Qty 10

0

103

Generac 0J4157B

BATTERY CABLE (POSITIVE-RED)

$29.99

$

Usually ships in 2-12 days

0

104

Generac 0J4157A

BATTERY CABLE (NEGATIVE -GREEN OR BLACK)

$18.99

$

In Stock, only 1 left!

0

105

Generac 0H3535

NUT (M5)

$0.99

$

Usually ships in 2-12 days

0

106

0L36230136

BATTERY CHARGE R

$

$

Not available

107

Generac 0J35250337

CABLE CLEAT

$1.49

$

Usually ships in 2-12 days

0

108

Generac 0J79090111

PAN HEAD SCREW (M5X10)

$1.49

$

Usually ships in 2-12 days

0

109

Generac 0H8251B

CO WARNING DECAL

$

$

Currently unavailable

110

0L1082A

WARNING DECAL

$

$

Not available
