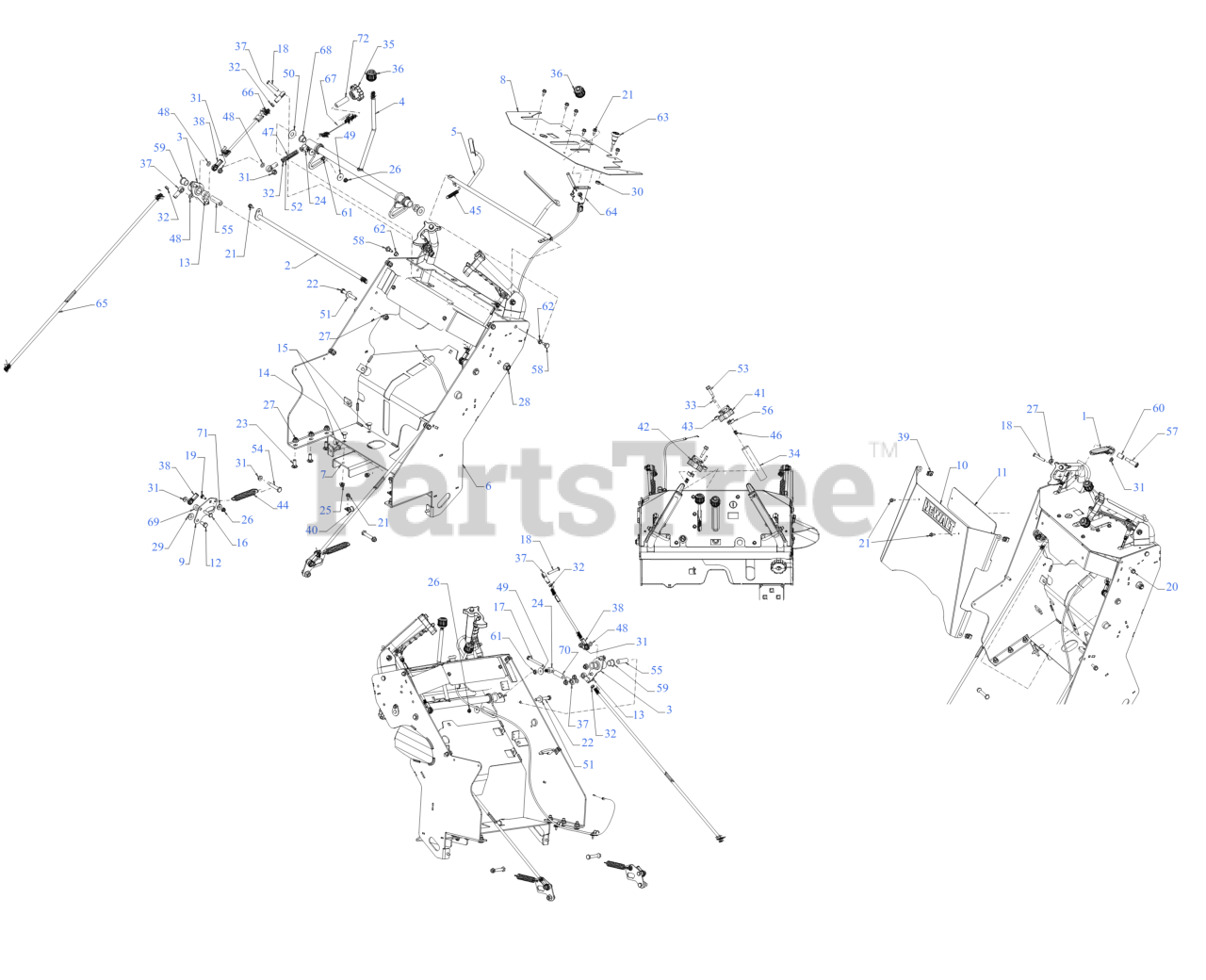

DXGHW48P (55RI6HN6038) - DeWALT Walk-Behind Mower (2021) Handle Parts Diagram

Walk-Behind Mower

Handle Parts Diagram

  • Title

1

MTD 619-05243

BRAKE HANDLE

Note: (Choose color when ordering)

$32.99

$

Usually ships in 3-6 days

0

2

MTD 680Z00532

CONTROL PIVOT WELDMENT

$59.99

$

Usually ships in 3-6 days

0

3

MTD 680E00543

BELLCRANK ASSEMBLY

$48.99

$

Usually ships in 3-6 days

0

4

MTD 680Z00548A

CRUISE CONTROL ASSEMBLY

$97.99

$

Usually ships in 3-6 days

0

5

MTD 680-00549B

BAIL ASSEMBLY

Note: (Choose color when ordering)

$113.99

$

Usually ships in 3-6 days

0

6

MTD 680-00551

HANDLE CONTROL ASSEMBLY

Note: (Choose color when ordering)

$971.99

$

Usually ships in 3-6 days

0

7

MTD 680-00562

PEDAL BRACKET

Note: (Choose color when ordering)

$56.99

$

Usually ships in 3-6 days

0

8

MTD 703E11298

CONTROL PANEL

$48.99

$

Usually ships in 3-6 days

0

9

MTD 703-11372

TRANSMISSION CONTROL BRACKET

Note: (Choose color when ordering)

$9.99

$

Usually ships in 3-6 days

0

10

MTD 703-26608

UPPER HANDLE COVER

$64.99

$

Usually ships in 3-6 days

0

11

MTD 703-26743

BACK PLATE
(Superseded to 703E26743)

$19.99

$

Usually ships in 3-6 days

0

12

MTD 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

13

MTD 710-0276

CARRIAGE BOLT 5/16-18 x 1.00

$3.99

$

In Stock, Qty 11

0

14

MTD 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

16

MTD 710-0528

SCREW 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

17

MTD 710-06684

SCREW (5/16-24:3.00:GR5)

$9.99

$

Usually ships in 3-6 days

0

18

MTD 710-06707

SCREW (5/16-18:1.7)

$5.49

$

Usually ships in 3-6 days

0

19

MTD 710-0703

SCREW 1/4-20 x .75 GR5

$4.49

$

In Stock, Qty 15

0

20

MTD 710-1238

SCREW 5/16-18 x .875 GR5
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-3022

SCREW 3/8-16 x 2.75 GR5

$4.99

$

In Stock, Qty 7

0

23

MTD 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

24

MTD 711-06797A

FURRLE (.328 ID x .250)

$25.99

$

In Stock, only 1 left!

0

25

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

27

MTD 712-04065

NUT

$3.99

$

In Stock, Qty 18

0

28

MTD 712-04150

NUT

$4.49

$

Usually ships in 3-6 days

0

29

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 15

0

30

MTD 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

31

MTD 712-3004A

HEX FLANGE NUT

$3.99

$

In Stock, Qty 20+

0

32

MTD 712-3025

HEX JAM NUT 5/16-24 GR 5

$7.49

$

Usually ships in 3-6 days

0

33

MTD 915-0221

DOWEL PIN

$4.49

$

In Stock, Qty 13

0

34

MTD 720-05159

GRIP (1.0 ID x 5.5 x .065)

$9.49

$

Usually ships in 3-6 days

0

35

MTD 720-05161

KNOB (5/16-24) (LH)

$13.99

$

Usually ships in 3-6 days

0

36

MTD 720P05961

BALL KNOB

$11.99

$

Usually ships in 3-6 days

0

37

MTD 723-04039

ROD END 5/16 ID

$57.99

$

Usually ships in 3-6 days

0

38

MTD 723-05004

END ROD- 5/16 (LH)

$51.99

$

Usually ships in 3-6 days

0

39

MTD 926-0211

U-NUT 5/16-18
(Superseded to 726-0211)

$4.49

$

Usually ships in 3-6 days

0

40

MTD 726-0272

CLAMP

$7.49

$

Usually ships in 3-6 days

0

41

MTD 731-13191A

HANDLE LOCK (RH)

$10.99

$

In Stock, only 1 left!

0

42

MTD 731-13192A

HANDLE LOCK (LH)

$10.99

$

Usually ships in 3-6 days

0

43

MTD 731-13313

NEUTRAL LOCK ROLLER

$4.99

$

Usually ships in 3-6 days

0

44

MTD 732-04629

EXTENSION SPRING

$28.99

$

In Stock, Qty 6

0

45

MTD 732-04826A

EXTENSION SPRING

$3.99

$

In Stock, only 3 left!

0

46

MTD 732-05587

NEUTRAL LOCK SPRING

$5.99

$

Usually ships in 3-6 days

0

47

MTD 732-05590

TRACKING SPRING

$6.99

$

Usually ships in 3-6 days

0

48

MTD 936-0264

FLAT WASHER .344 x .62

$6.99

$

In Stock, only 3 left!

0

49

MTD 736-04511

FLAT WASHER

$3.49

$

In Stock, only 3 left!

0

50

MTD 736-05239

FLAT WASHER (0.526X1.250X0.048)

$5.99

$

Usually ships in 3-6 days

0

51

MTD 736-3072

WASHER

$4.49

$

In Stock, Qty 20+

0

52

MTD 736-3081

FLAT WASHER ID-.320 x .598

$3.99

$

In Stock, only 2 left!

0

53

MTD 738-04185

SHOULDER SCREW

$8.49

$

Usually ships in 3-6 days

0

54

MTD 738-04535

SHOULDER SCREW

$6.49

$

Usually ships in 3-6 days

0

55

MTD 738-05270

BELLCRANK SPACER

$4.99

$

Usually ships in 3-6 days

0

56

MTD 738-05280

NEUTRAL LOCK SPACER

$4.99

$

Usually ships in 3-6 days

0

57

MTD 738-0966A

SHOULDER SCREW .50X.925

$4.99

$

In Stock, Qty 19

0

58

MTD 938-0974

SHOULDER SCREW .375 x X .380 x 1/4-20
(Superseded to 738-0974)

$

$

Not available

59

MTD 941-0353

FLANGE BEARING
(Superseded to 741-0353)

$11.99

$

In Stock, Qty 20+

0

60

MTD 741-04206A

SLEEVE BEARING .623 x .5025 x .250

$3.99

$

In Stock, only 1 left!

0

61

MTD 741-04425

BALL BEARING .25 x .625 SPCL

$14.99

$

Usually ships in 3-6 days

0

62

MTD 941-3073

FLANGE BEARING .375X.580X.250

$5.49

$

In Stock, Qty 20+

0

63

MTD 946-05341B

CHOKE CABLE

$69.99

$

Usually ships in 3-6 days

0

64

MTD 946-05434

THROTTLE CABLE

$90.99

$

In Stock, only 1 left!

0

65

MTD 747-06958A

TRANSMISSION CONTROL ROD

$21.99

$

Usually ships in 3-6 days

0

66

MTD 747-06959A

CONTROL LEVER ROD

$12.99

$

Usually ships in 3-6 days

0

67

MTD 747-06960

CONTROL TRACKNG ROD

$29.99

$

Usually ships in 3-6 days

0

68

MTD 948-0108

FLANGE BEARING .503ID

$8.99

$

In Stock, only 1 left!

0

69

MTD 750-04477A

IDLER BRACKET SPACER .340X.750X.330

$5.49

$

In Stock, only 4 left!

0

70

MTD 750-06752

SPACER (.322 x .625 x 1.8)

$7.49

$

Usually ships in 3-6 days

0

71

MTD 750-06811

TRANSMISSION SPACER

$4.99

$

Usually ships in 3-6 days

0

72

MTD 750-0885A

SPACER

$11.99

$

Usually ships in 3-6 days

0
