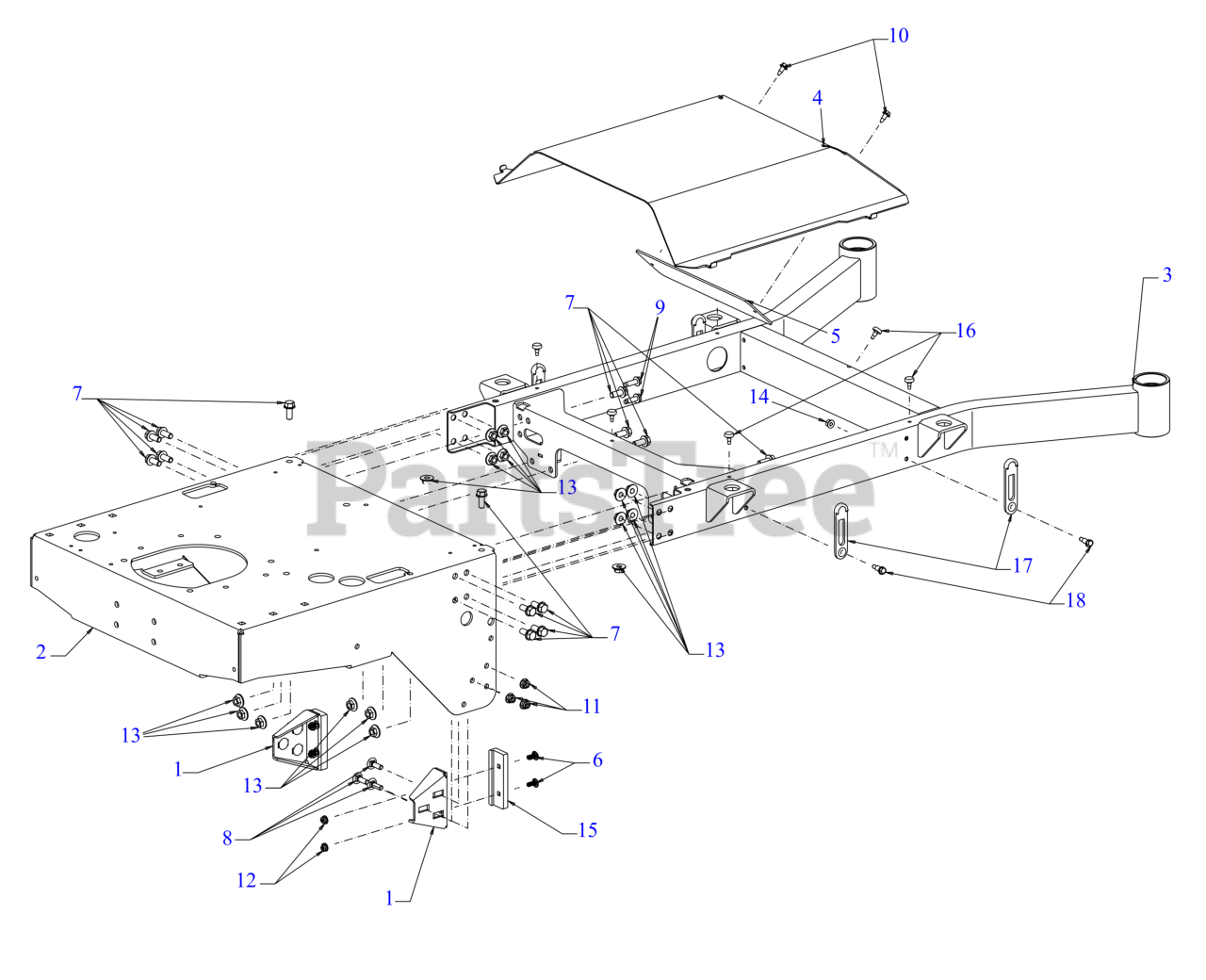

DXGHW48P (55RI6HN6038) - DeWALT Walk-Behind Mower (2021) Frame Parts Diagram

Walk-Behind Mower

Frame Parts Diagram

  • Title

1

MTD 680-00557

DECK BUMPER BRACKET (LH)

Note: (Choose color when ordering)

$65.99

$

Usually ships in 3-6 days

0

2

MTD 680-01474

ENGINE/TRANS FRAME

$419.99

$

Usually ships in 3-6 days

0

3

MTD 680-02615

FRAME (FRONT)

$505.99

$

Usually ships in 3-6 days

0

4

MTD 680-02674

DECK COVER

$171.99

$

Usually ships in 3-6 days

0

5

MTD 703-26743

BACK PLATE
(Superseded to 703E26743)

$19.99

$

Usually ships in 3-6 days

0

6

MTD 710-0134

CARRIAGE BOLT 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-04998

SCREW 5/16-18 x 1.00 GR5

$5.99

$

In Stock, only 2 left!

0

9

MTD 710-0602

SCREW 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 16

0

14

MTD 912-3027

LOCK NUT 1/4

$4.49

$

In Stock, Qty 20+

0

15

MTD 731-13170

BUMPER PAD

$21.99

$

Usually ships in 3-6 days

0

16

MTD 935-0199A

RUBBER BUMPER
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0

17

MTD 735-05226

COVER STRAP 2.50 LONG

$6.49

$

Usually ships in 3-6 days

0

18

MTD 738-04395

SHOULDER SCREW

$4.49

$

In Stock, only 1 left!

0
