DXGHW48P (55RI6HN6038) - DeWALT Walk-Behind Mower (2021) Electrical Parts Diagram

Walk-Behind Mower

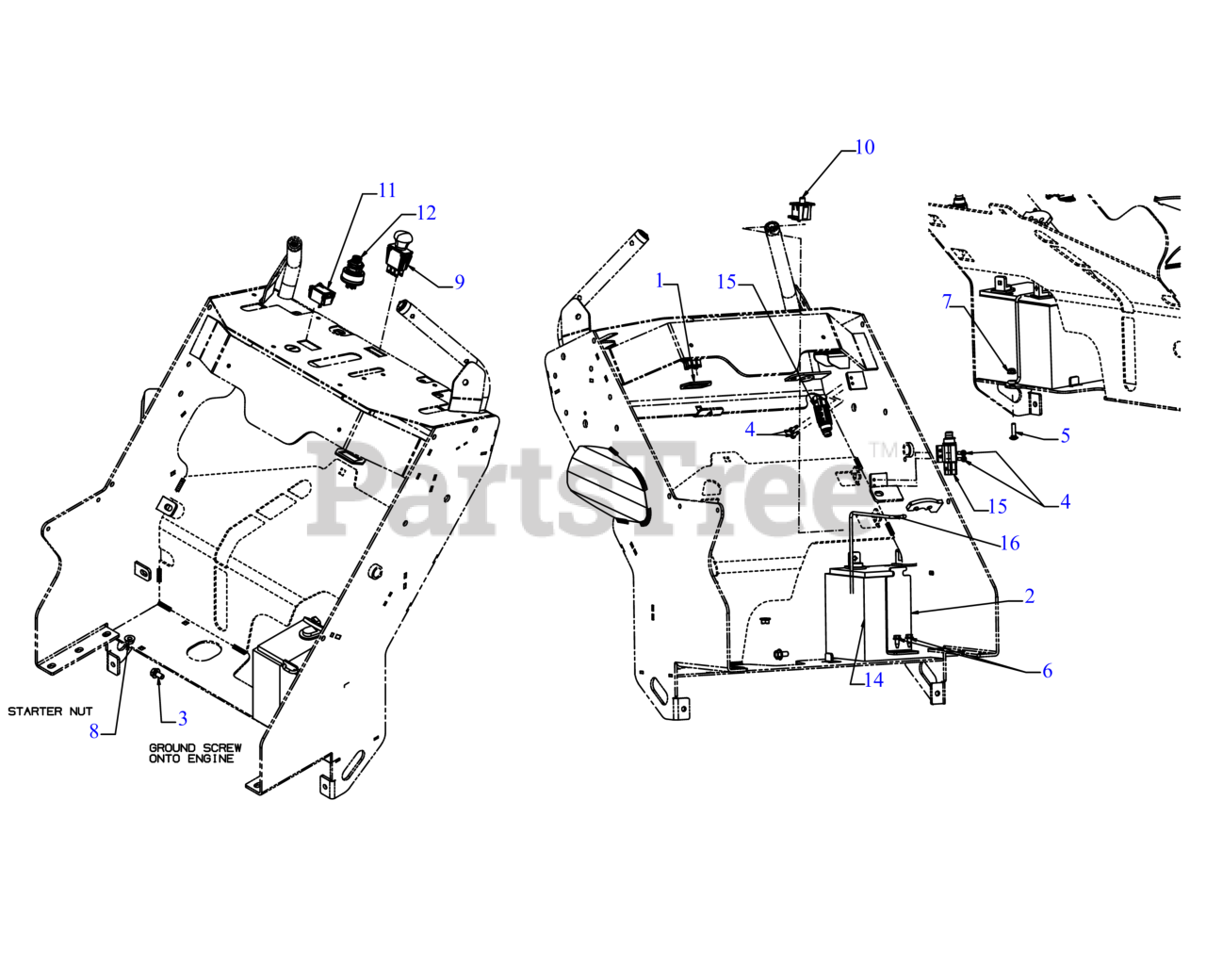

Electrical Parts Diagram

  • Title

1

MTD 01009905

BRACKET-PTO SWITCH

$27.99

$

Usually ships in 3-6 days

0

2

MTD 703-11341B

BATTERY RETAINING BRACKET

Note: (Choose color when ordering)

$17.99

$

Usually ships in 3-6 days

0

3

MTD 710-04748

SCREW M8 x 1.25 x 16MM GR8.8

$4.49

$

Usually ships in 3-6 days

0

4

MTD 710-04757

SCREW (10-24X.75:PH:TAP:T25:GR5)

$3.99

$

Usually ships in 3-6 days

0

5

MTD 710-0932A

SCREW 1/4-20 x 1 GR5

$3.99

$

In Stock, only 4 left!

0

6

MTD 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

7

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-04312

HEX FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

9

MTD 925-04174A

PTO SWITCH (BLACK KNOB) TEXT SYM

$70.99

$

In Stock, only 3 left!

0

10

MTD 925-05013

SEAT SWITCH N/C,N/C

$31.99

$

Usually ships in 3-6 days

0

11

MTD 725-05438

HOURMETER

$104.99

$

Usually ships in 3-6 days

0

12

MTD 925-06854

KEY SWITCH (3 POSITION)

$138.99

$

Usually ships in 3-6 days

0

13

MTD 925-07087

WIRE HARNESS

Note: (Not shown)

$170.99

$

Usually ships in 3-6 days

0

14

MTD 725P17130

BATTERY (230 CCA AGM U1-280)

$117.99

$

In Stock, only 1 left!

0

15

MTD 929-05136

SEALED PLUNGER SWITCH

$43.99

$

In Stock, only 1 left!

0

16

MTD 747-07051

BATTERY SUPPORT ROD

$13.99

$

Usually ships in 3-6 days

0
