DX 272 BF (966651502) - Dixon 72" Zero-Turn Mower (2012-04) MOWER DECK / CUTTING DECK Parts Diagram

72" Zero-Turn Mower

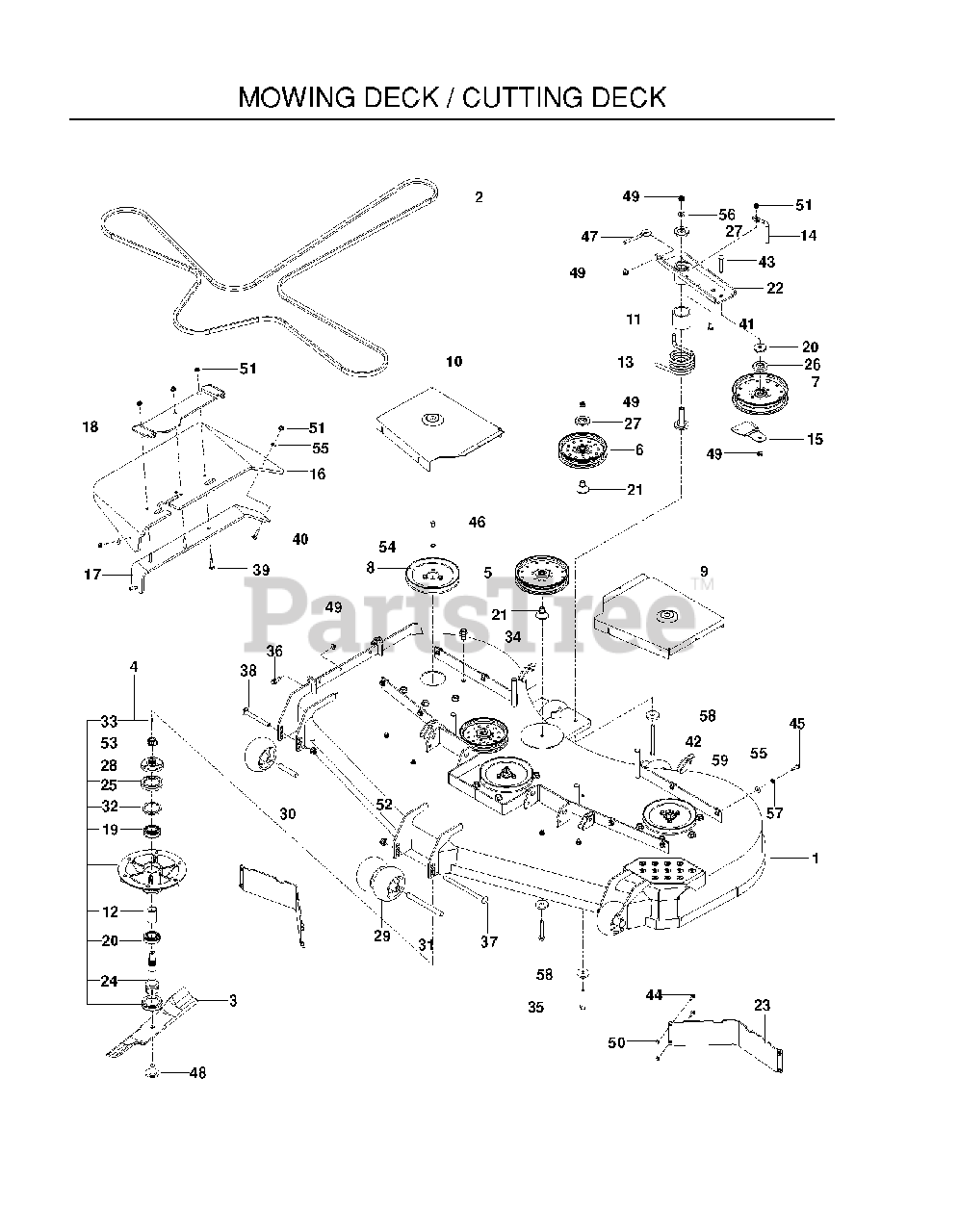

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Dixon 574497302

DECK W/SAFETY DECALS 72"

Note: w / SAFETY DECALS

$3399.99

$

Usually ships in 3-10 days

0

2

Dixon 574286001

BELT, "B", 201
(Superseded to 588264804)

$133.99

$

In Stock, only 1 left!

0

3

Dixon 539105476

OBSOLETE - N/A

$39.99

$

In Stock, Qty 20+

0

4

Dixon 525836401

SPINDLE ASM. 10"
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

5

Dixon 525598201

PULLEY - 7" NARROW

$

$

Not available

6

Dixon 510019601

PULLEY IDLER, 6" NARROW

$

$

Not available

7

Dixon 510015101

PULLEY - IDLER 7"

$

$

Not available

8

Dixon 539130647

PULLEY - 7.50

$34.99

$

Usually ships in 3-10 days

0

9

Dixon 525426303

SHIELD, 72 RT

$61.99

$

Usually ships in 3-10 days

0

10

Dixon 525426103

SHIELD BELT LH 72 BLUE

$61.99

$

Usually ships in 3-10 days

0

11

Dixon 525465601

SPACER, IDLER PIVOT

$10.99

$

In Stock, only 1 left!

0

12

Dixon 539130641

SPACER - BEARING

$

$

Not available

13

Dixon 525310901

SPRING, TORSION, IDLER

$121.99

$

Usually ships in 3-10 days

0

14

Dixon 574262201

BELT KEEPER

$

$

Not available

15

Dixon 574262102

BELT GUIDE, BLK

$34.99

$

Usually ships in 3-10 days

0

16

Dixon 525485701

CHUTE, DISCHARGE 60-72

$72.99

$

Usually ships in 3-10 days

0

17

Dixon 525485902

BRKT - CHUTE SUPPORT BLACK

$74.99

$

Usually ships in 3-10 days

0

18

Dixon 574197002

BRKT - CHUTE MTG BLACK

$78.99

$

Usually ships in 3-10 days

0

19

Dixon 539130638

BEARING - 206KRR8

$34.99

$

In Stock, Qty 20+

0

20

Dixon 510263701

BEARING, IDLER ARM

$6.99

$

In Stock, Qty 8

0

21

Dixon 522729701

BEARING, IDLER PIVOT

$9.49

$

In Stock, only 1 left!

0

22

Dixon 574722201

ASSY, IDLER ARM, PZ

$121.99

$

Usually ships in 3-10 days

0

23

Dixon 574221802

BAFFLE, DIVERTER 72" BLACK

$37.99

$

Usually ships in 3-10 days

0

24

Dixon 525836001

SHAFT - SPINDLE
(Superseded to 580943306)

$363.99

$

In Stock, only 1 left!

0

25

Dixon 539130643

CUP - DEBRIS

$7.99

$

Usually ships in 3-10 days

0

26

Dixon 510262201

SHIELD, DUST

$

$

Not available

27

Dixon 510254501

DUST SHIELD

$

$

Not available

28

Dixon 539130637

HUB - PULLEY

$

$

Not available

29

Dixon 574169601

ROLLER, GAUGE .635 BORN

$17.99

$

Usually ships in 3-10 days

0

30

Dixon 574196401

TUBE, ROLLER AXLE

$

$

Not available

31

Dixon 574196501

TUBE, ROLLER AXLE LONG

$14.99

$

Usually ships in 3-10 days

0

32

Dixon 539130639

V-RING, 55MM

$6.99

$

In Stock, only 4 left!

0

33

Dixon 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

34

Dixon 574210601

HHFS 1/2-13 X 1 GR5 ZD

$

$

Not available

35

Dixon 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

36

Dixon 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

37

Dixon 510022401

RHSNB 1/2-13 X 8 GR5 ZD

$31.99

$

In Stock, only 1 left!

0

38

Dixon 510022301

RHSNB 1/2-13 X 4.75 GR5 ZD

$

$

Not available

39

Dixon 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

40

Dixon 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

41

Dixon 539107271

RHSSNB 5/16C X 1.0
(Superseded to 596435701)

$3.99

$

In Stock, only 4 left!

0

42

Dixon 539101686

HCS 3/8-16 X 4-1/2 GR 8 ZD

$3.99

$

Usually ships in 3-10 days

0

43

Dixon 539128101

CARRIAGE BOLT 3/8-16 X

$

$

Not available

44

Dixon 539115620

OBSOLETE - 1/4-20X3/4 CARR BLT
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

46

Dixon 539130315

HCS 5/16-18 X 1/2 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

47

Dixon 574202001

EYE BOLT, 3/8 X 4"

$

$

Not available

48

Dixon 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 2 left!

0

49

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

50

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

51

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

52

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

53

Dixon 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

54

Dixon 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

55

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

56

Dixon 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

57

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

58

Dixon 539106504

SPINDLE WASHER

$

$

Not available

59

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0
