DX 272 BF (966651502) - Dixon 72" Zero-Turn Mower (2011-01) WHEELS TIRES Parts Diagram

72" Zero-Turn Mower

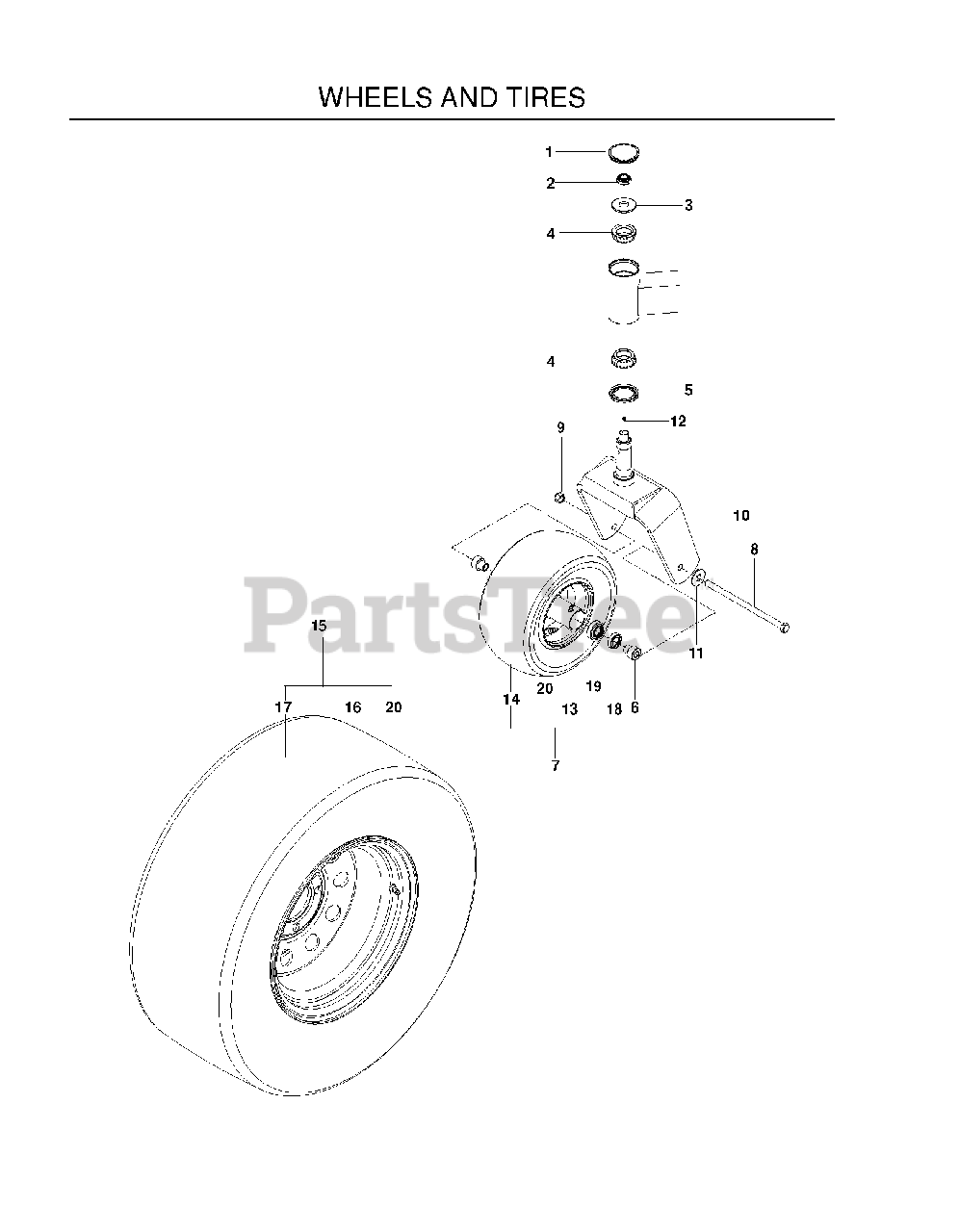

WHEELS TIRES Parts Diagram

  • Title

1

Dixon 510034001

CAP, DUST

$

$

Not available

2

Dixon 522842601

NUT, 3/4-16 HEX THIN NYLOC ZD

$

$

Not available

3

Dixon 574824701

WASHER, 3/4 HARDENED

$

$

Not available

4

Dixon 510034401

BEARING, TAPPER ROLLER

$21.99

$

Usually ships in 3-10 days

0

5

Dixon 510034301

SEAL, BEARING

$6.49

$

In Stock, only 3 left!

0

6

Dixon 539105518

AXLE SPACER

$9.49

$

In Stock, only 4 left!

0

7

Dixon 539105521

FRONT TIRE ASSY

$182.99

$

In Stock, only 3 left!

0

8

Dixon 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

9

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

10

Dixon 525611902

No Description Available

$250.99

$

Usually ships in 3-10 days

0

11

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

12

Dixon 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

14

Dixon 539105522

TIRE - SMOOTH

$120.99

$

In Stock, only 2 left!

0

15

Dixon 539105486

TIRE ASSY 24-12

$433.99

$

Usually ships in 3-10 days

0

16

Dixon 539105487

RIM 2.5" NEG OFFSET 8.5" WIDE

$182.99

$

In Stock, only 1 left!

0

17

Dixon 539105152

REAR TIRE 24X12 TURFMASTER

$278.99

$

Usually ships in 3-10 days

0

18

Dixon 539105524

SEAL

$9.49

$

In Stock, only 3 left!

0

19

Dixon 539105525

TAPERED BEARING W/RACE

$24.99

$

In Stock, only 3 left!

0

20

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0
