DX 272 (966651501) - Dixon 72" Zero-Turn Mower (2013-07) SEAT Parts Diagram

72" Zero-Turn Mower

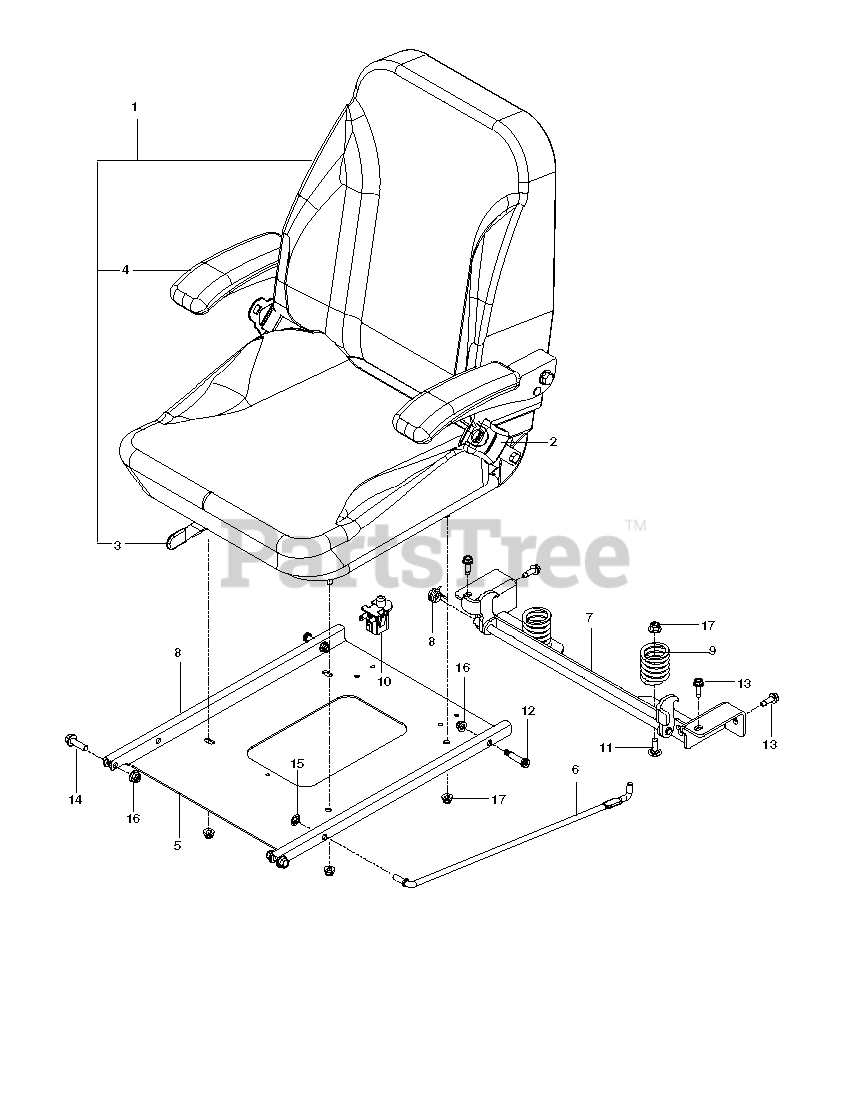

SEAT Parts Diagram

  • Title

1

Dixon 574030801

SEAT ASSY

$971.99

$

Usually ships in 3-10 days

0

2

Dixon 539130359

No Description Available
(Superseded to 596322701)

$136.99

$

In Stock, only 1 left!

0

3

Dixon 574030802

TRACK KIT

$157.99

$

Usually ships in 3-10 days

0

4

Dixon 574284605

ARMREST, LT

$148.99

$

Usually ships in 3-10 days

0

5

Dixon 510039302

PAN, SEAT, BLACK

$145.99

$

Usually ships in 3-10 days

0

6

Dixon 510064101

ROD, SEAT

$10.99

$

Usually ships in 3-10 days

0

7

Dixon 574182202

LATCH, SEAT, BLK

$267.99

$

Usually ships in 3-10 days

0

8

Dixon 520283101

SPRING, TORSION

$3.99

$

In Stock, only 1 left!

0

9

Dixon 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

10

Dixon 539119741

SEAT SWITCH
(Superseded to 532421062)

$14.99

$

In Stock, only 2 left!

0

11

Dixon 539990645

RHSNB 3/8C X 1

$

$

Not available

12

Dixon 515990601

BOLT, SHOULDER 3/8 X 1.25

$3.99

$

In Stock, only 2 left!

0

13

Dixon 539113226

No Description Available
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539913847

OBSOLETE - BOLT RETAINER 3/8

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 539913847

OBSOLETE - BOLT RETAINER 3/8

$4.99

$

Usually ships in 3-10 days

0

16

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

17

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0
