DX 272 (966651501) - Dixon 72" Zero-Turn Mower (2013-07) HYDRAULIC PUMP- MOTOR Parts Diagram

72" Zero-Turn Mower

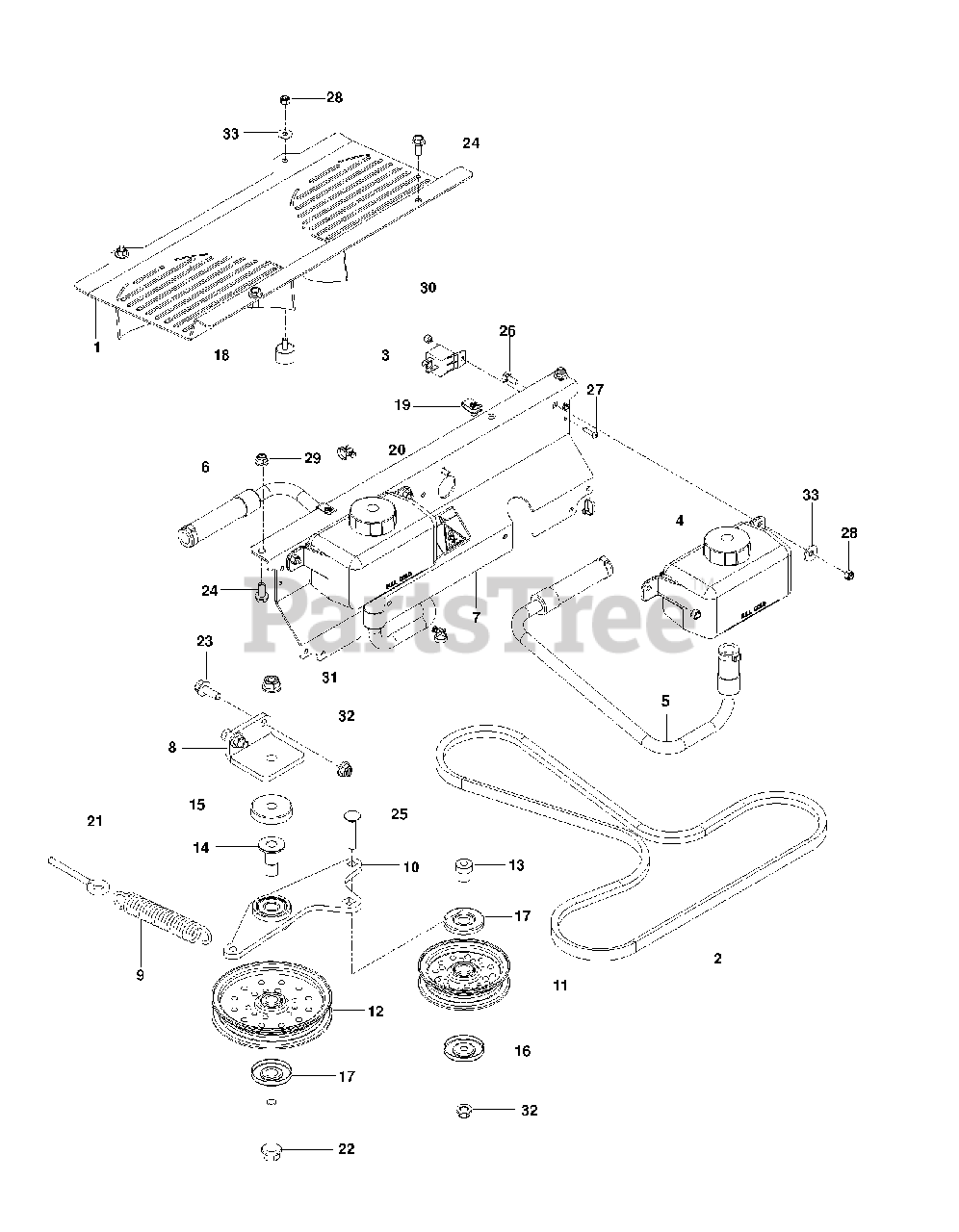

HYDRAULIC PUMP- MOTOR Parts Diagram

  • Title

1

Dixon 575961504

No Description Available

$

$

Not available

2

Dixon 575586701

No Description Available

$56.99

$

Usually ships in 3-10 days

0

3

Dixon 539102914

RELAY

$26.99

$

In Stock, Qty 8

0

4

Dixon 574499201

No Description Available

$34.99

$

Usually ships in 3-10 days

0

5

Dixon 523017301

No Description Available

$51.99

$

Usually ships in 3-10 days

0

6

Dixon 523017302

No Description Available

$455.99

$

Usually ships in 3-10 days

0

7

Dixon 523017202

No Description Available

$70.99

$

Usually ships in 3-10 days

0

8

Dixon 574891202

No Description Available

$

$

Not available

9

Dixon 575470901

No Description Available

$31.99

$

Usually ships in 3-10 days

0

10

Dixon 574891104

No Description Available

$159.99

$

Usually ships in 3-10 days

0

11

Dixon 539976688

IDLER PULLEY

$

$

Not available

12

Dixon 510283702

IDLER, FLAT, 5.5"

$

$

Not available

13

Dixon 525435601

PIVOT, IDLER

$8.99

$

In Stock, only 4 left!

0

14

Dixon 574975601

No Description Available

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 539114662

SHIELD, DUST

$

$

Not available

16

Dixon 510254501

DUST SHIELD

$

$

Not available

17

Dixon 510262201

SHIELD, DUST

$

$

Not available

18

Dixon 522801401

BUMPER, MALE STUD, 1/4-20

$4.99

$

In Stock, only 2 left!

0

19

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

20

Dixon 502280001

No Description Available

$

$

Not available

21

Dixon 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

22

Dixon 525828901

HFFS 1/2-13 X 3 GD 5 ZD

$6.49

$

Usually ships in 3-10 days

0

23

Dixon 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

24

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

25

Dixon 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

26

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

28

Dixon 539976978

NUT 1/4-20 NYLOC
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

29

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

31

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

32

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

33

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available
