DX 272 (966651501) - Dixon 72" Zero-Turn Mower (2011-01) ENGINE PLATE Parts Diagram

72" Zero-Turn Mower

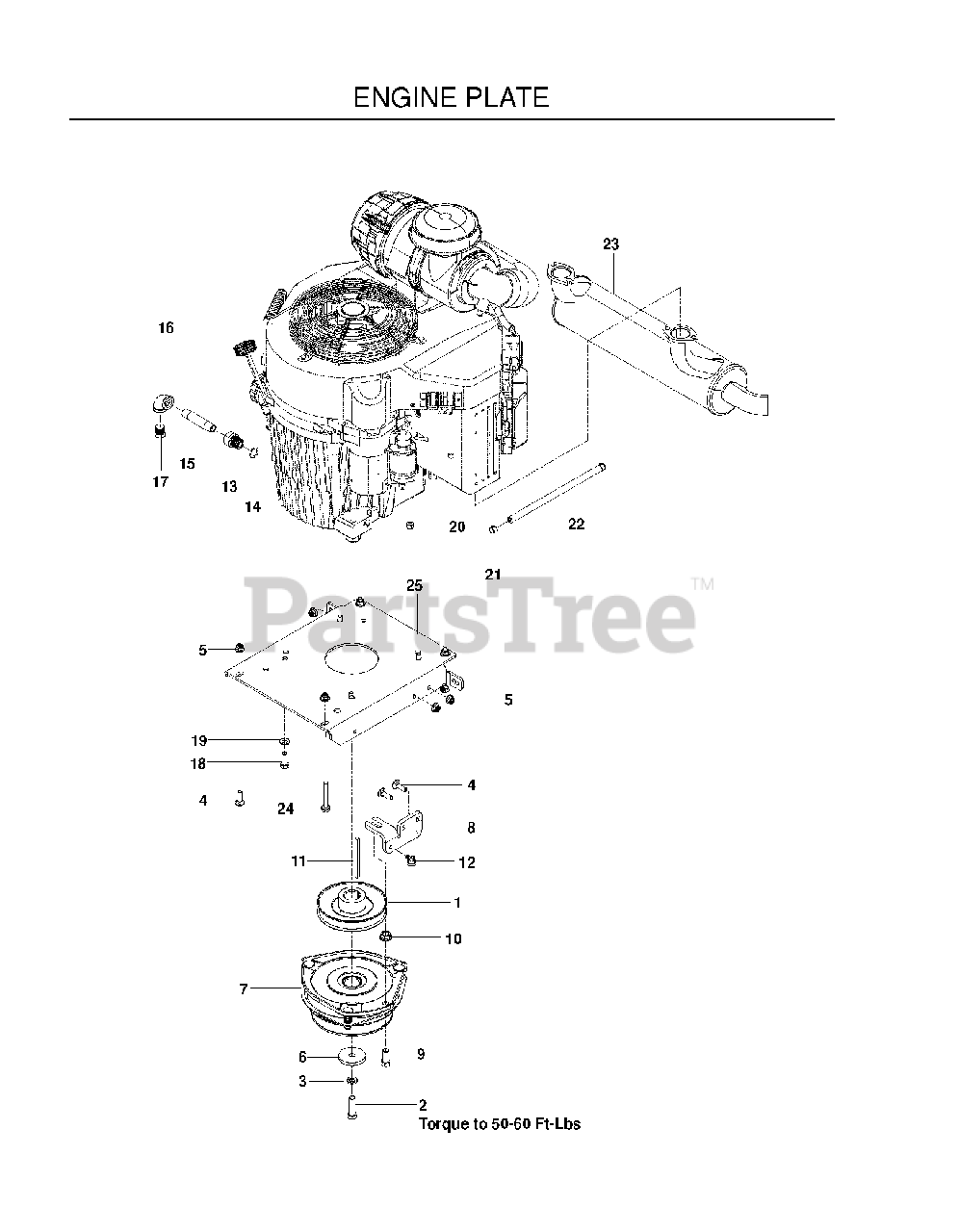

ENGINE PLATE Parts Diagram

  • Title
1

Dixon 510019801

PULLEY, ENGINE

$56.99

$

In Stock, only 1 left!

0

2

Dixon 539100141

HCS 7/16F X 1 1/2

$

$

Not available

3

Dixon 539990247

WASHER 7/16 LOCK

$

$

Not available

4

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

5

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

6

Dixon 539125626

BLADE WASHER

$9.99

$

Usually ships in 3-10 days

0

7

Dixon 525749501

CLUTCH, GT3.5

$683.99

$

Usually ships in 3-10 days

0

8

Dixon 522676702

STOP, CLUTCH, OGURA
(Superseded to 522676703)

$

$

Not available

9

Dixon 539100143

HCS 7/16-14 X 1 GR 5 ZD

$3.99

$

Usually ships in 3-10 days

0

10

Dixon 539102582

NUT 7/16C WHIZ

$

$

Not available

11

Dixon 525749901

KEY, 1/4 SQ X 3.5

$4.99

$

Usually ships in 3-10 days

0

12

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

13

Dixon 539119680

ADAPTER, OIL DRAIN

$20.99

$

Usually ships in 3-10 days

0

14

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 539118911

PIPE NIPPLE 3/8 X 3

$7.49

$

Usually ships in 3-10 days

0

16

Dixon 539105072

90 DEG.ELBOW 3/8NPT

$7.99

$

Usually ships in 3-10 days

0

17

Dixon 522837001

PLUG, DRAIN 3/8 NPTF

$3.99

$

Usually ships in 3-10 days

0

18

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

19

Dixon 539102593

WASHER, 3/8 DISC SPRING SPEC

$3.99

$

In Stock, only 4 left!

0

20

Dixon 539103153

NUT M8-1.25 TOP NYL GR10 ZD

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

22

Dixon 539932956

GAS LINE 10"

$

$

Not available

23

Dixon 525750401

MUFFLER, 34HP KAW FX921V-1000V

$319.99

$

Usually ships in 3-10 days

0

24

Dixon 574233801

HHFS 5/16-18 X 2.25 GD 5

$4.99

$

Usually ships in 3-10 days

0

25

Dixon 510004602

PLATE, ENGINE, BLACK

$133.99

$

Usually ships in 3-10 days

0

Dixon 525554201

HARNESS, FX KAW

Note: NOT SHOWN

$37.99

$

Usually ships in 3-10 days

0

Dixon 574825801

KIT, SPARK ARRESTOR

Note: NOT SHOWN

$56.99

$

Usually ships in 3-10 days

0
