DX 260 D (966651601) - Dixon 60" Zero-Turn Mower (2012-02) WHEELS TIRES Parts Diagram

60" Zero-Turn Mower

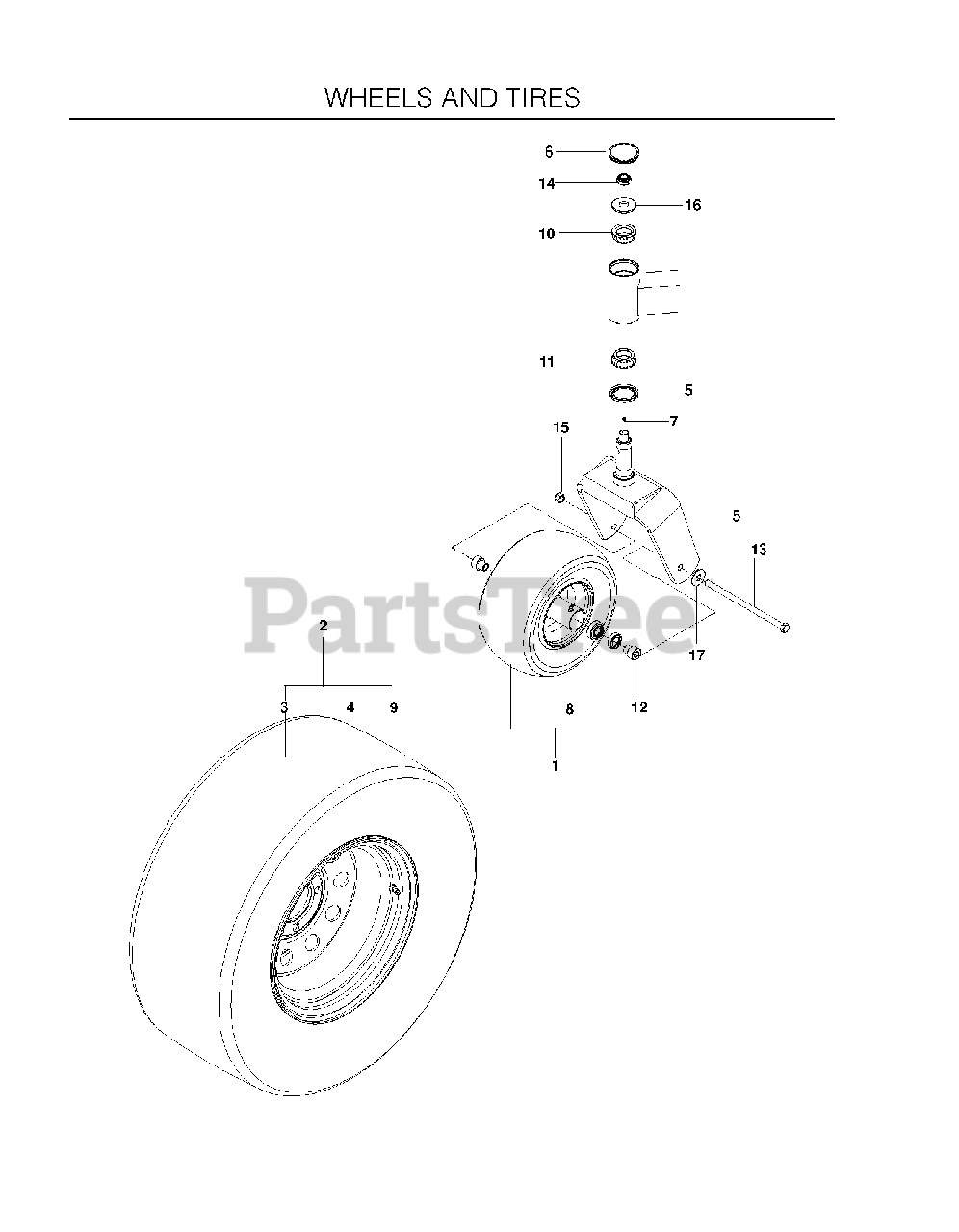

WHEELS TIRES Parts Diagram

  • Title

1

Dixon 510154601

TIRE, 13 X 6.5-6 NO FLAT

$265.99

$

In Stock, only 2 left!

0

2

Dixon 516022901

WHEEL, DRIVE, 26 X 12

$

$

Not available

3

Dixon 539107715

TIRE, 26-12 X 12

$484.99

$

Usually ships in 3-10 days

0

4

Dixon 516022902

RIM, 12 X 8.5, CENTERED

$

$

Not available

5

Dixon 525611902

No Description Available

$250.99

$

Usually ships in 3-10 days

0

6

Dixon 510034001

CAP, DUST

$

$

Not available

7

Dixon 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

8

Dixon 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

9

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

10

Dixon 510034403

CONE, LM67048

$14.99

$

Usually ships in 3-10 days

0

11

Dixon 510034301

SEAL, BEARING

$6.49

$

In Stock, only 3 left!

0

12

Dixon 539105518

AXLE SPACER

$9.49

$

In Stock, only 4 left!

0

13

Dixon 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

14

Dixon 522842601

NUT, 3/4-16 HEX THIN NYLOC ZD

$

$

Not available

15

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

16

Dixon 574824701

WASHER, 3/4 HARDENED

$

$

Not available

17

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0
