DX 260 D (966651601) - Dixon 60" Zero-Turn Mower (2012-02) PARKING BRAKE Parts Diagram

60" Zero-Turn Mower

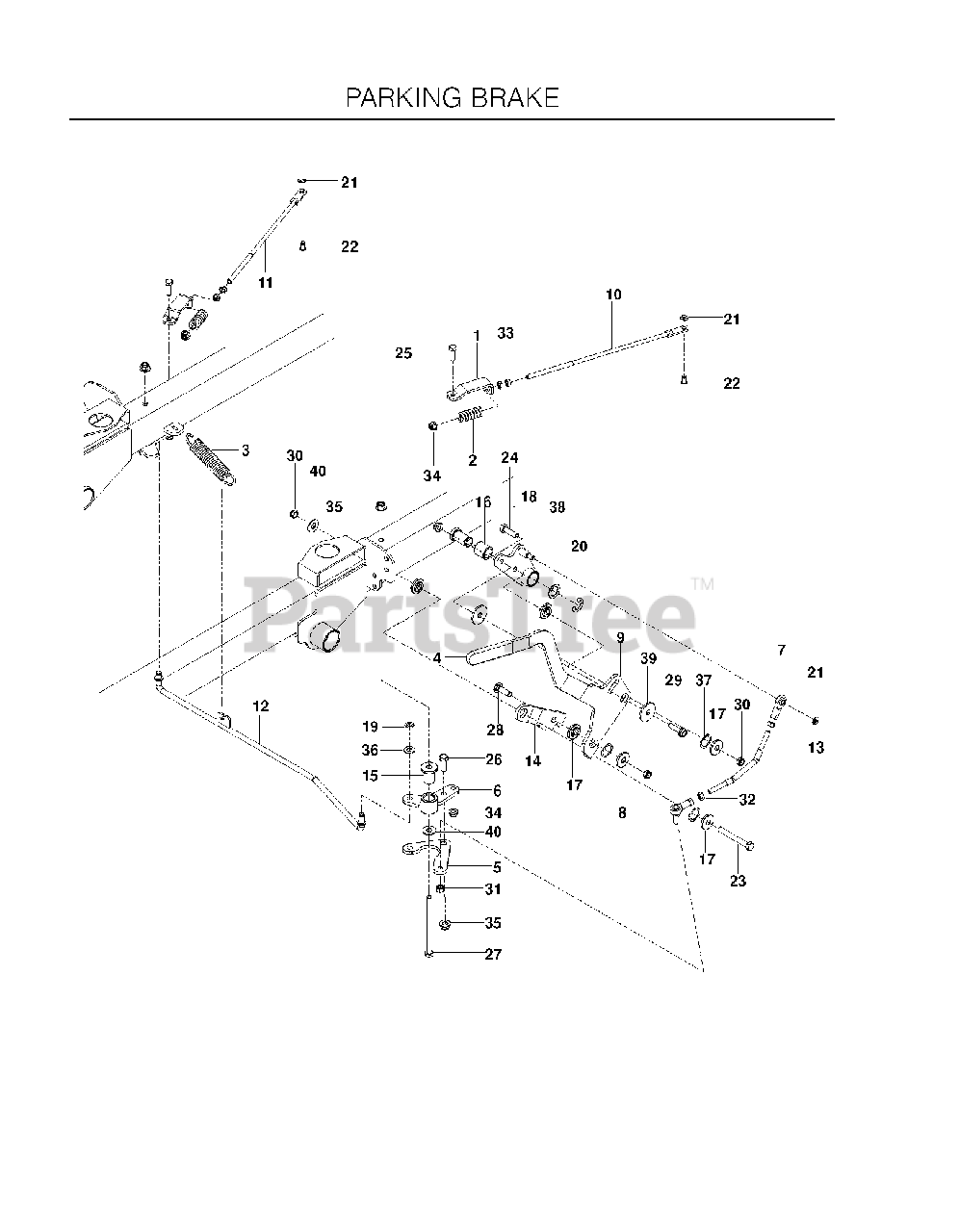

PARKING BRAKE Parts Diagram

  • Title

1

Dixon 516036301

BRACKET, BRAKE

$11.99

$

Usually ships in 3-10 days

0

2

Dixon 539113952

SPRING

$7.49

$

Usually ships in 3-10 days

0

3

Dixon 539106850

SPRING

$

$

Not available

4

Dixon 539976526

GRIP

$3.99

$

In Stock, only 3 left!

0

5

Dixon 574522502

PLATE, BRAKE, BLK

$18.99

$

Usually ships in 3-10 days

0

6

Dixon 516036604

BELLCRANK, BRAKE, WLDMT

$42.99

$

Usually ships in 3-10 days

0

7

Dixon 539102590

BALL JOINT, RIGHT HANDED

$27.99

$

In Stock, only 1 left!

0

8

Dixon 539110603

SPHERICAL ROD END, RH

$40.99

$

Usually ships in 3-10 days

0

9

Dixon 515980002

LEVER, BRAKE, BLK

$66.99

$

Usually ships in 3-10 days

0

10

Dixon 516036101

LINKAGE, BRAKE RR

$5.99

$

Usually ships in 3-10 days

0

11

Dixon 516036102

LINKAGE, BRAKE, RT-RR

$21.99

$

Usually ships in 3-10 days

0

12

Dixon 516036201

LINKAGE, BRAKE, PRIMARY

$17.99

$

Usually ships in 3-10 days

0

13

Dixon 574527501

LINKAGE, BRAKE

$

$

Not available

14

Dixon 515980301

LINK, FOLLOWER

$

$

Not available

15

Dixon 516036401

BUSHING, PIVOT

$21.99

$

Usually ships in 3-10 days

0

16

Dixon 510089201

BUSHING, SLEEVE 3/4 X 1.0

$14.99

$

In Stock, only 4 left!

0

17

Dixon 539132161

BUSHING, BRAKE

$6.49

$

In Stock, only 1 left!

0

18

Dixon 521885601

WELDMENT, ARM, BRAKE

$31.99

$

Usually ships in 3-10 days

0

19

Dixon 539990870

E RING 3/8"

$6.49

$

In Stock, only 1 left!

0

20

Dixon 539102454

E RING 3/4

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539109303

RING RETAINING EXT 5/16

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 522421201

PIN, BRAKE ARM

$

$

Not available

23

Dixon 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

24

Dixon 539976941

HCS 3/8C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

25

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

26

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

27

Dixon 539101517

SCREW, 3/8C X 5 HEX CAP

$

$

Not available

28

Dixon 539100413

RHSNB 3/8-16 X 1-1/4

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

30

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

31

Dixon 539110943

NUT 5/16F NYLOC

$3.99

$

Usually ships in 3-10 days

0

32

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

33

Dixon 539107897

NUT 5/16-18 HEX JAM ZD

$3.99

$

Usually ships in 3-10 days

0

34

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

35

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

36

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

37

Dixon 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0

38

Dixon 539910935

WASHER .787 X 1.125 X .06

$4.99

$

In Stock, only 3 left!

0

39

Dixon 525490901

WASHER, FRICTION, 1/8

$7.99

$

Usually ships in 3-10 days

0

40

Dixon 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0
