DX 260 D (966651601) - Dixon 60" Zero-Turn Mower (2012-02) FRAME Parts Diagram

60" Zero-Turn Mower

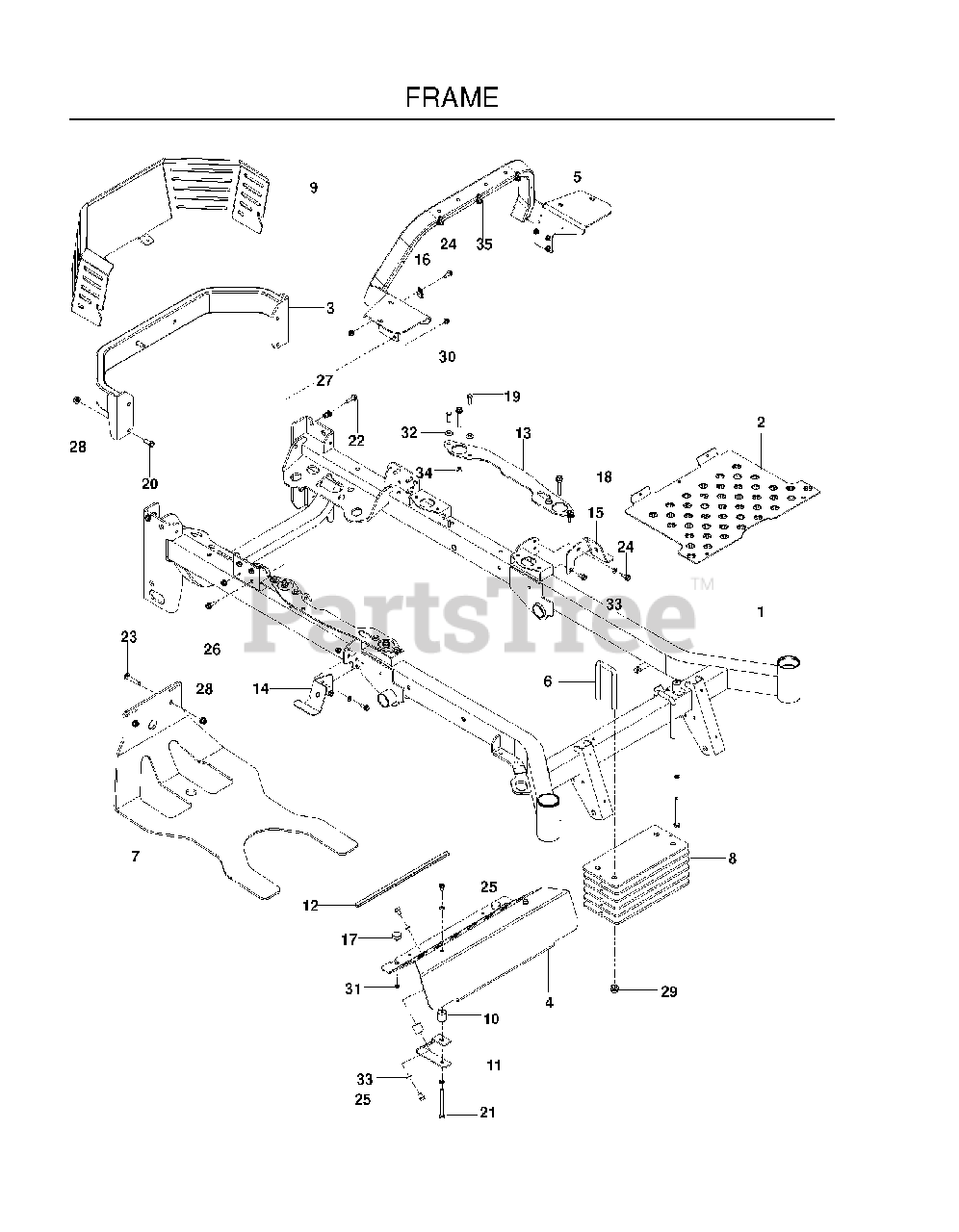

FRAME Parts Diagram

  • Title

1

Dixon 522739303

FRAME, DIESEL, BLUE

$

$

Not available

2

Dixon 574215603

PLATE, FLOOR PAN, BLUE

$

$

Not available

3

522738905

No Description Available

Note: W / DECALS

$

$

Not available

4

Dixon 574298802

PLATE, FOOTREST, BLUE

$113.99

$

Usually ships in 3-10 days

0

5

Dixon 574432604

No Description Available

$279.99

$

Usually ships in 3-10 days

0

6

Dixon 575880601

LINKAGE, U-BOLT

$36.99

$

Usually ships in 3-10 days

0

7

522739904

No Description Available

$

$

Not available

8

Dixon 575880502

PLATE, WEIGHT BLK
(Superseded to 575880501)

$40.99

$

Usually ships in 3-10 days

0

9

575545903

No Description Available

$

$

Not available

10

Dixon 510083201

MOUNT, F/F INSERT

$7.49

$

In Stock, Qty 18

0

11

Dixon 510040301

BRACKET, REST MOUNT

$10.99

$

Usually ships in 3-10 days

0

12

Dixon 539112294

FLEX TRIM, BLACK
(Superseded to 589362602)

$5.99

$

In Stock, only 4 left!

0

13

Dixon 579418502

No Description Available

$

$

Not available

14

Dixon 529279903

MOUNT, TANK, RT-BLK

$68.99

$

Usually ships in 3-10 days

0

15

Dixon 529280003

MOUNT, TANK, LT-BLK

$60.99

$

Usually ships in 3-10 days

0

16

Dixon 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

17

Dixon 575811501

BUMPER, 1/4-20 STUD, 1/4

$6.99

$

Usually ships in 3-10 days

0

18

Dixon 574496901

HHFS 3/8-16 X 2-1/4 GR 5 ZD
(Superseded to 577098301)

$6.99

$

In Stock, only 3 left!

0

19

Dixon 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

20

Dixon 539990563

HCS 3/8C X 1

$1.99

$

Usually ships in 3-10 days

0

21

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539100145

RHSNB 3/8C X 2
(Superseded to 595901401)

$3.99

$

In Stock, only 4 left!

0

24

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

25

Dixon 539990858

SCR 5/16-18 X 1/2 SELFTAP ZN

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539113226

BLT 5/16-18 X 1 THRD FORM ZD
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539111028

NUTSERT 5/16-18 THICK GRIP

$

$

Not available

28

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

29

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

30

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

31

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

32

Dixon 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

33

Dixon 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

34

Dixon 539109562

WASHER 3/8 X 3/4 X .187 TK

$4.99

$

In Stock, Qty 16

0

35

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0
