DX 260 D (966651601) - Dixon 60" Zero-Turn Mower (2010-12) STEERING Parts Diagram

60" Zero-Turn Mower

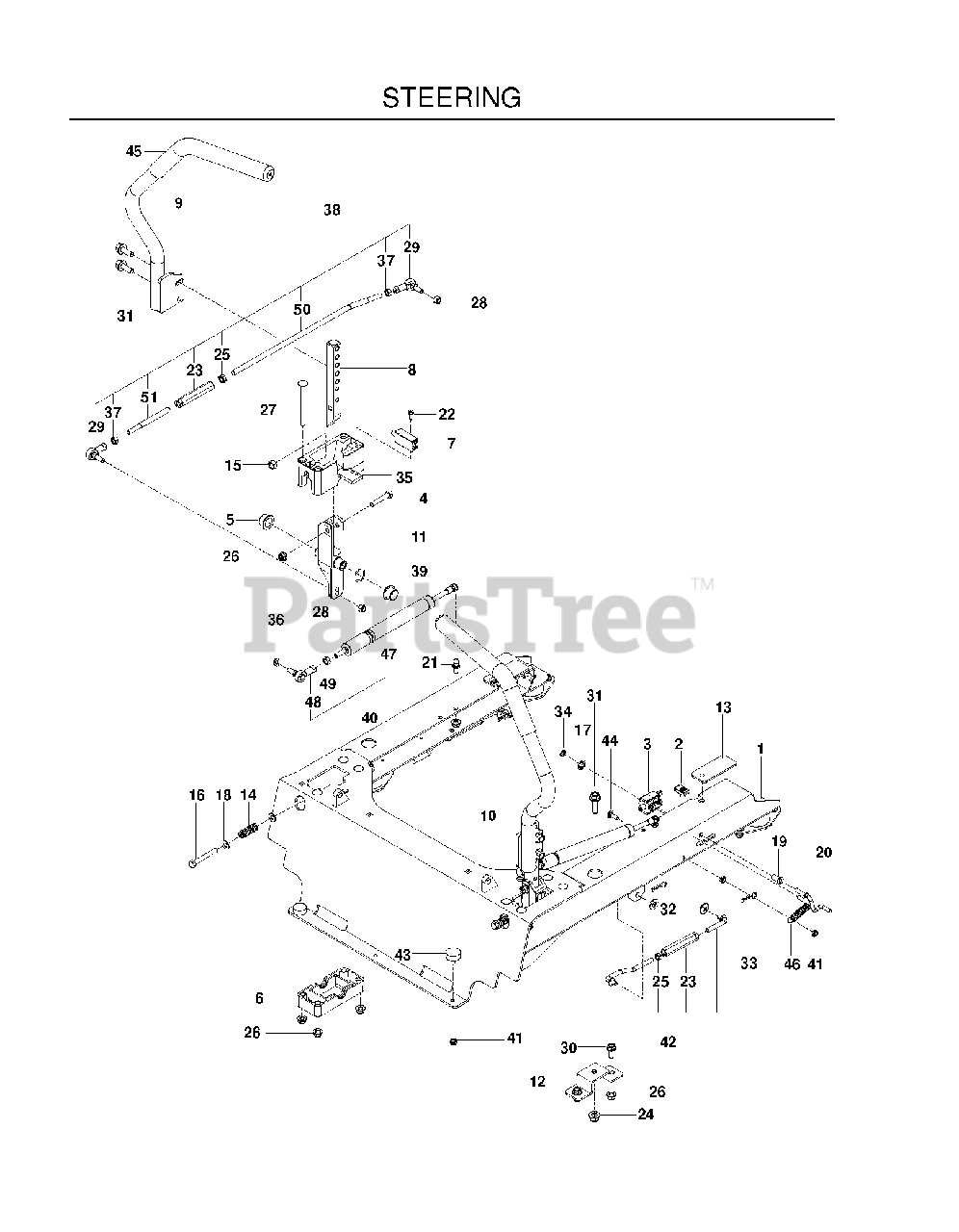

STEERING Parts Diagram

  • Title

1

Dixon 574189603

FRAME, SEAT MOUNT, BLUE

$358.99

$

Usually ships in 3-10 days

0

2

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

3

Dixon 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

4

Dixon 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

5

Dixon 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 6

0

6

Dixon 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

7

Dixon 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

8

Dixon 574269401

LEVER, MOTION

$27.99

$

Usually ships in 3-10 days

0

9

Dixon 574262701

LEVER, W/GRIP, RT

$136.99

$

Usually ships in 3-10 days

0

10

Dixon 574262702

LEVER, W/GRIP, LT

$125.99

$

Usually ships in 3-10 days

0

11

Dixon 510113203

LEVER, CONTROL

$72.99

$

In Stock, only 1 left!

0

12

Dixon 522849702

MOUNT, MID-SECTION, BLK

$24.99

$

Usually ships in 3-10 days

0

13

Dixon 576688902

No Description Available

$8.99

$

Usually ships in 3-10 days

0

14

Dixon 539101224

SPRING

$22.99

$

In Stock, only 1 left!

0

15

Dixon 539990196

NUT 5/16C HEX

$1.99

$

Usually ships in 3-10 days

0

16

Dixon 539108396

HCS 5/16-18 X 2 1/2 TPBLT

$

$

Not available

17

Dixon 539913847

BOLT RETAINER 3/8

$4.99

$

Usually ships in 3-10 days

0

18

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

19

Dixon 511594901

BUSHING, 1/4 FLANGE

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 511595001

LINK, SWITCH

$7.49

$

Usually ships in 3-10 days

0

21

Dixon 539110607

10MM BALL STUD

$4.99

$

Usually ships in 3-10 days

0

22

Dixon 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539109149

TURNBUCKLE, 3/8

$48.99

$

Usually ships in 3-10 days

0

24

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

25

Dixon 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

26

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

27

Dixon 539131665

RHSNB 5/16-18 X 3-3/4 GR 5 ZD

$

$

Not available

28

Dixon 539110943

NUT 5/16F NYLOC

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 539110603

SPHERICAL ROD END, RH

$40.99

$

Usually ships in 3-10 days

0

30

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

31

Dixon 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

32

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

33

Dixon 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

34

Dixon 539102234

NUT PUSH

$3.99

$

Usually ships in 3-10 days

0

35

Dixon 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

36

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 2 left!

0

37

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

38

Dixon 575324602

No Description Available

$

$

Not available

39

Dixon 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0

40

Dixon 522842501

ASSEMBLY, DAMPENER

$148.99

$

Usually ships in 3-10 days

0

41

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

42

Dixon 525447901

ASSEMBLY, SEAT STRUT

$27.99

$

Usually ships in 3-10 days

0

43

Dixon 578811501

No Description Available
(Superseded to 575811501)

$6.99

$

Usually ships in 3-10 days

0

44

Dixon 539990074

RHSNB 1/4C X 3/4
(Superseded to 596238401)

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539130894

GRIP - DRIVE LEVER

$9.99

$

In Stock, only 3 left!

0

46

Dixon 539020035

SPRING, EXTENSION
(Superseded to 540020035)

$14.99

$

Usually ships in 3-10 days

0

47

Dixon 522612701

DAMPENER

$

$

Not available

48

Dixon 539131749

ROD END

$10.99

$

Usually ships in 3-10 days

0

49

Dixon 539127046

NUT M8 X 1.25 STD HEX

$3.99

$

Usually ships in 3-10 days

0

50

Dixon 522559201

LINKAGE, CONTROL, FT

$

$

Not available

51

Dixon 575324601

No Description Available

$

$

Not available
