DX 260 D (966651601) - Dixon 60" Zero-Turn Mower (2010-12) HYDRAULIC PUMP MOTOR Parts Diagram

60" Zero-Turn Mower

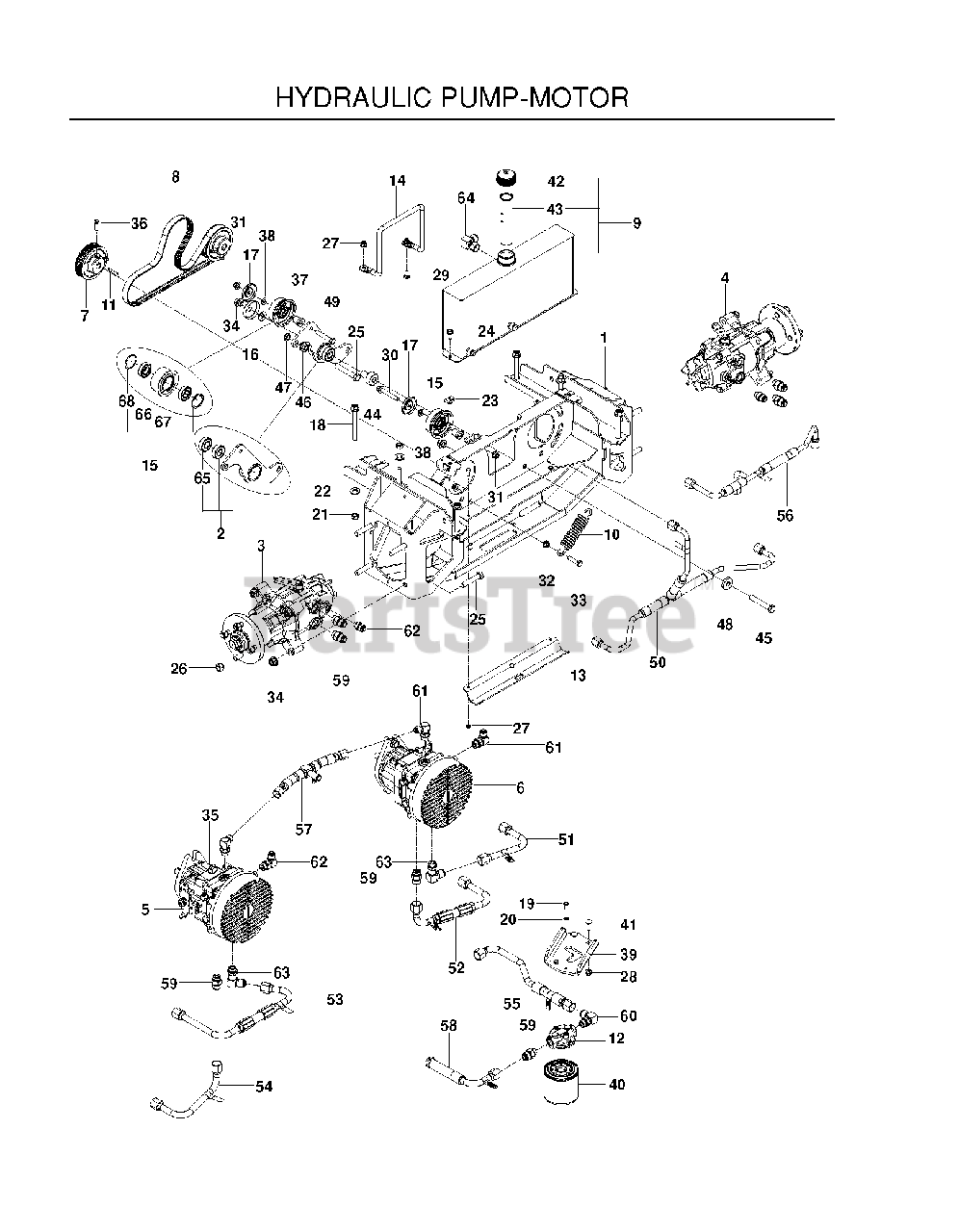

HYDRAULIC PUMP MOTOR Parts Diagram

  • Title

1

Dixon 574888702

WELDMENT, PUMP BAY, BLK

$

$

Not available

2

Dixon 574890201

ASSEMBLY, IDLER W/BEARINGS

$102.99

$

Usually ships in 3-10 days

0

3

Dixon 515999101

MOTOR, PRM, RT

$

$

Not available

4

Dixon 515999201

MOTOR, PRM, LT

$

$

Not available

5

Dixon 515998901

PUMP, 21CC, RT

$2305.99

$

Usually ships in 3-10 days

0

6

Dixon 515999001

PUMP, 21CC, LT

$

$

Not available

7

Dixon 539106334

PUMP SHEAVE

$

$

Not available

8

Dixon 574890001

BELT, PUMP

$43.99

$

Usually ships in 3-10 days

0

9

Dixon 515999302

ASSEMBLY, RESERVOIR

$188.99

$

Usually ships in 3-10 days

0

10

Dixon 539110655

SPRING

$14.99

$

Usually ships in 3-10 days

0

11

Dixon 539109178

KEY, METRIC

$7.99

$

Usually ships in 3-10 days

0

12

Dixon 575872301

FILTER HEAD

$43.99

$

Usually ships in 3-10 days

0

13

Dixon 522957201

No Description Available

$

$

Not available

14

Dixon 574507601

No Description Available

$

$

Not available

15

Dixon 576937901

No Description Available

$284.99

$

Usually ships in 3-10 days

0

16

Dixon 539114662

SHIELD, DUST

$

$

Not available

17

Dixon 510254501

DUST SHIELD

$

$

Not available

18

Dixon 521983801

BOLT 7/16 X 4 GR 8 BLK PHOS

$4.99

$

Usually ships in 3-10 days

0

19

Dixon 539990072

HCS 1/4C X 5/8

$3.99

$

In Stock, only 3 left!

0

20

Dixon 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539119124

7/16-14 HEX NUT W/NYLOC

$

$

Not available

22

Dixon 539990250

WASHER 1/2" FLAT

$1.99

$

In Stock, only 2 left!

0

23

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

24

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

25

Dixon 539108346

HEX SCREW 3/18-16 X 3.5" G5

$5.99

$

Usually ships in 3-10 days

0

26

Dixon 539101173

LUG NUT 1/2F

$

$

Not available

27

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

28

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

29

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

30

Dixon 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

31

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

32

Dixon 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

33

Dixon 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

34

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

35

Dixon 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

36

Dixon 539102716

SCREW 5/16C X 1 SQ HEAD SET

$3.99

$

In Stock, only 3 left!

0

37

Dixon 576690001

SPACER, IDLER

$6.99

$

Usually ships in 3-10 days

0

38

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

39

Dixon 576190602

MOUNT, FILTER, BLK

$37.99

$

Usually ships in 3-10 days

0

40

Dixon 522805401

FILTER 25 MICRON

$31.99

$

Usually ships in 3-10 days

0

41

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 522805301

CAP, HYDRAULIC

$31.99

$

Usually ships in 3-10 days

0

43

Dixon 522805001

TUBE, ANTI-SPLASH

$113.99

$

Usually ships in 3-10 days

0

44

Dixon 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

45

Dixon 539101572

SCREW, 1/2C X 3 HEX CAP

$5.99

$

In Stock, Qty 9

0

46

Dixon 539111187

NUT 1/2-13 HEX

$3.99

$

Usually ships in 3-10 days

0

47

Dixon 539117378

NUT, HEX 1/2-13 THIN W/NY

$

$

Not available

48

Dixon 539115636

WASHER.525X1.375X.25

$9.99

$

In Stock, only 1 left!

0

49

Dixon 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

50

Dixon 516000101

LINE, HYD, CASE-RM

$

$

Not available

51

Dixon 574888801

LINE, HYD, LT-AA

$

$

Not available

52

Dixon 574889001

LINE, HYD, LT-BB

$

$

Not available

53

Dixon 574889101

LINE, HYD, RT-AB

$

$

Not available

54

Dixon 574889201

LINE, HYD, RT-BA

$45.99

$

Usually ships in 3-10 days

0

55

Dixon 576045001

LINE, HYD, SUCTION

$70.99

$

Usually ships in 3-10 days

0

56

Dixon 574889501

LINE, HYD, PUMP

$

$

Not available

57

Dixon 576045101

LINE, HYD, CHARGE

$103.99

$

Usually ships in 3-10 days

0

58

Dixon 576045201

LINE, HYD, CHARGE

$37.99

$

Usually ships in 3-10 days

0

59

Dixon 539132889

FITTING, 10-8 STRAIGHT

$11.99

$

Usually ships in 3-10 days

0

60

Dixon 539106370

OBSOLETE - FITTING

$24.99

$

Usually ships in 3-10 days

0

61

Dixon 539101242

ELBOW, 90 DEGREE

$34.99

$

Usually ships in 3-10 days

0

62

Dixon 539131748

FITTING, HYDRO

$7.99

$

Usually ships in 3-10 days

0

63

Dixon 539132888

FITTING, 10-8 90 DEG

$27.99

$

Usually ships in 3-10 days

0

64

Dixon 576191301

FITTING, HYD, 6500-10-8

$17.99

$

Usually ships in 3-10 days

0

65

Dixon 539112050

BEARING, BALL

$7.49

$

In Stock, only 4 left!

0

66

Dixon 539130296

BEARING

$9.99

$

In Stock, only 4 left!

0

67

Dixon 576689901

IDLER, PUMP

$94.99

$

Usually ships in 3-10 days

0

68

Dixon 576816901

RING, RETAINING, 1-5/8"

$1.99

$

Usually ships in 3-10 days

0
