DX 260 BF (966651302) - Dixon 60" Zero-Turn Mower (2013-07) MOWER LIFT / DECK LIFT Parts Diagram

60" Zero-Turn Mower

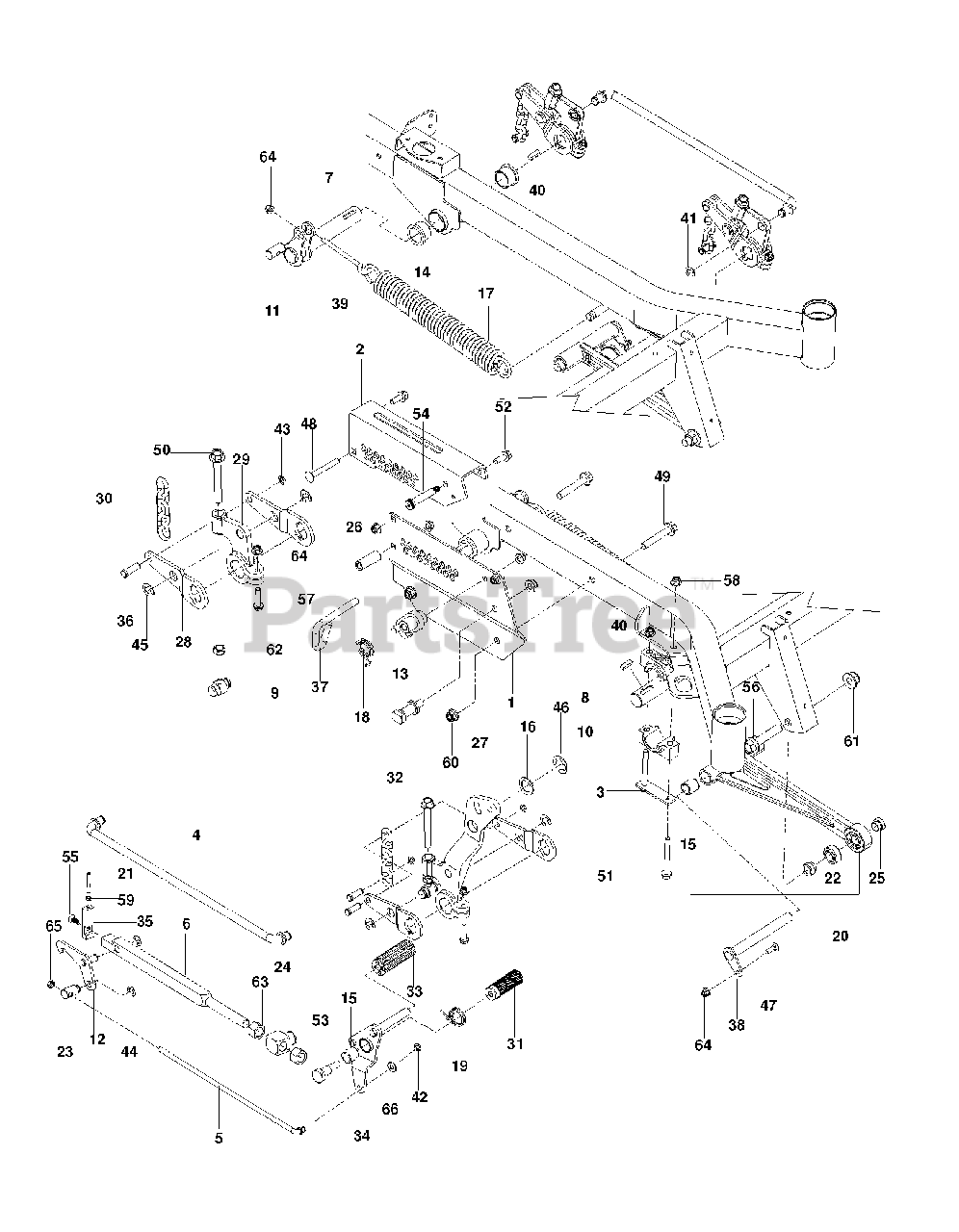

MOWER LIFT / DECK LIFT Parts Diagram

  • Title

1

Dixon 510408503

PLATE, INNER HEIGHT, BLUE

$60.99

$

Usually ships in 3-10 days

0

2

Dixon 510408603

OBSOLETE - PLATE, OUTER HEIGHT, BLUE

$35.99

$

Usually ships in 3-10 days

0

3

Dixon 525822201

PLATE, PILLOW BLACK
(Superseded to 593634102)

$3.99

$

Usually ships in 3-10 days

0

4

Dixon 510089801

ROD, LIFT

$113.99

$

Usually ships in 3-10 days

0

5

Dixon 510407601

ROD, HEIGHT LATCH

$10.99

$

Usually ships in 3-10 days

0

6

Dixon 510406301

BAR, HEIGHT

$

$

Not available

7

Dixon 510410703

SHAFT, RR LIFT

$60.99

$

Usually ships in 3-10 days

0

8

Dixon 510409602

SHAFT, LIFT, FT

$96.99

$

Usually ships in 3-10 days

0

9

Dixon 510023601

SHAFT, LIFT TRUNION

$20.99

$

Usually ships in 3-10 days

0

10

Dixon 510023902

BLOCK, PILLOW

$14.99

$

In Stock, only 1 left!

0

11

Dixon 510412301

PIVOT, SPRING

$7.49

$

Usually ships in 3-10 days

0

12

Dixon 510407201

LATCH, HEIGHT WLDMT

$

$

Not available

13

Dixon 510406801

LATCH, TRANSPORT WLDMT

$

$

Not available

14

Dixon 510089401

BUSHING, FLANGE 1.25 X 1.0

$20.99

$

Usually ships in 3-10 days

0

15

Dixon 510089201

BUSHING, SLEEVE 3/4 X 1.0

$14.99

$

In Stock, only 4 left!

0

16

Dixon 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

17

Dixon 510029201

SPRING, EXTENSION

$40.99

$

In Stock, only 1 left!

0

18

Dixon 510376601

SPRING, TORSION

$3.99

$

In Stock, only 2 left!

0

19

Dixon 510376701

SPRING, TORSION

$3.99

$

In Stock, only 1 left!

0

20

Dixon 510106501

ASSEMBLY, STRUT

$121.99

$

Usually ships in 3-10 days

0

21

Dixon 510406601

LINK, INDICATOR

$

$

Not available

22

Dixon 510083801

BALL JOINT, 3/4" SWIVEL

$51.99

$

Usually ships in 3-10 days

0

23

Dixon 510407501

SWIVEL, HEIGHT LATCH

$10.99

$

Usually ships in 3-10 days

0

24

Dixon 510406401

SWIVEL, HEIGHT BAR

$18.99

$

Usually ships in 3-10 days

0

25

Dixon 510362501

SPACER, STRUT

$7.49

$

Usually ships in 3-10 days

0

26

Dixon 510408401

SPACER, HEIGHT PLATE

$4.99

$

Usually ships in 3-10 days

0

27

Dixon 510022502

OBSOLETE - ARM, LIFT LEVER
(Superseded to 525465502)

$182.99

$

Usually ships in 3-10 days

0

28

Dixon 510410002

OBSOLETE - ARM LIFT BLK

$9.49

$

Usually ships in 3-10 days

0

29

Dixon 510022501

OBSOLETE - ARM, CAST LIFT
(Superseded to 525465501)

$121.99

$

Usually ships in 3-10 days

0

30

Dixon 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

31

Dixon 510089501

PAD, FOOT PEDAL

$6.49

$

In Stock, Qty 14

0

32

Dixon 510406701

GUIDE, HEIGHT BAR

$

$

Not available

33

Dixon 510408301

PEDAL, DECK HEIGHT

$

$

Not available

34

Dixon 510407801

PEDAL, RELEASE WLDMT

$182.99

$

Usually ships in 3-10 days

0

35

Dixon 510406501

CAP, HEIGHT BAR

$

$

Not available

36

Dixon 510090101

PIN, 7/16 CLEVIS

$

$

Not available

37

Dixon 510016501

PIN, HEIGHT

$14.99

$

Usually ships in 3-10 days

0

38

Dixon 515988201

PIN, STRUT

$24.99

$

Usually ships in 3-10 days

0

39

Dixon 539120993

EYE BOLT 4.5`

$46.99

$

Usually ships in 3-10 days

0

40

Dixon 525822501

KEY, 5/16 SQ X 1.0

$3.99

$

Usually ships in 3-10 days

0

41

Dixon 539105069

5/8 E-RING

$3.99

$

Usually ships in 3-10 days

0

42

Dixon 539990870

E RING 3/8"

$6.49

$

In Stock, only 1 left!

0

43

Dixon 522705201

RING, E, 7/16

$4.99

$

In Stock, only 1 left!

0

44

Dixon 539101949

E-RING 1/2

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539102454

E RING 3/4

$3.99

$

Usually ships in 3-10 days

0

46

Dixon 539912730

E-RING 1"
(Superseded to 812000053)

$7.49

$

Usually ships in 3-10 days

0

47

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

48

Dixon 539122728

3/8-16 X 3` CARR BOLT

$3.99

$

Usually ships in 3-10 days

0

49

Dixon 525828901

HFFS 1/2-13 X 3 GD 5 ZD

$6.49

$

Usually ships in 3-10 days

0

50

Dixon 525465701

HHFS 1/2-13 X 4 GR 5

$24.99

$

Usually ships in 3-10 days

0

51

Dixon 525822101

HHFS 3/8-16 X 3.5 GD 5 ZD

$7.49

$

Usually ships in 3-10 days

0

52

Dixon 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

53

Dixon 510408201

BOLT, SHOULDER

$

$

Not available

54

Dixon 516035501

BOLT, SHOULDER, 1/2 X 2.25

$4.99

$

Usually ships in 3-10 days

0

55

Dixon 522705601

SCREW, 5/16-18 X 3/4 FLAT HEX

$4.99

$

Usually ships in 3-10 days

0

56

Dixon 525829001

HHFS 5/8-11 X 3.0 GD 8 ZD

$31.99

$

Usually ships in 3-10 days

0

57

Dixon 525465401

HHFS 5/16-18 X 1.5 GD 5

$7.49

$

Usually ships in 3-10 days

0

58

Dixon 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available

59

Dixon 539991112

NUT 1/4-20 JAM

$3.99

$

In Stock, only 4 left!

0

60

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

61

Dixon 525829101

NUT 5/8-11 FLG NYLOC ZD

$4.99

$

In Stock, only 3 left!

0

62

Dixon 539990625

NUT 1/2 HEX JAM
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

63

Dixon 539108677

No Description Available

$

$

Not available

64

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

65

Dixon 539108732

NUT 3/8-24 JAM

$3.99

$

Usually ships in 3-10 days

0

66

Dixon 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0
