DX 260 (966721501) - Dixon 60" Zero-Turn Mower (2012-04) IGNITION SYSTEM Parts Diagram

60" Zero-Turn Mower

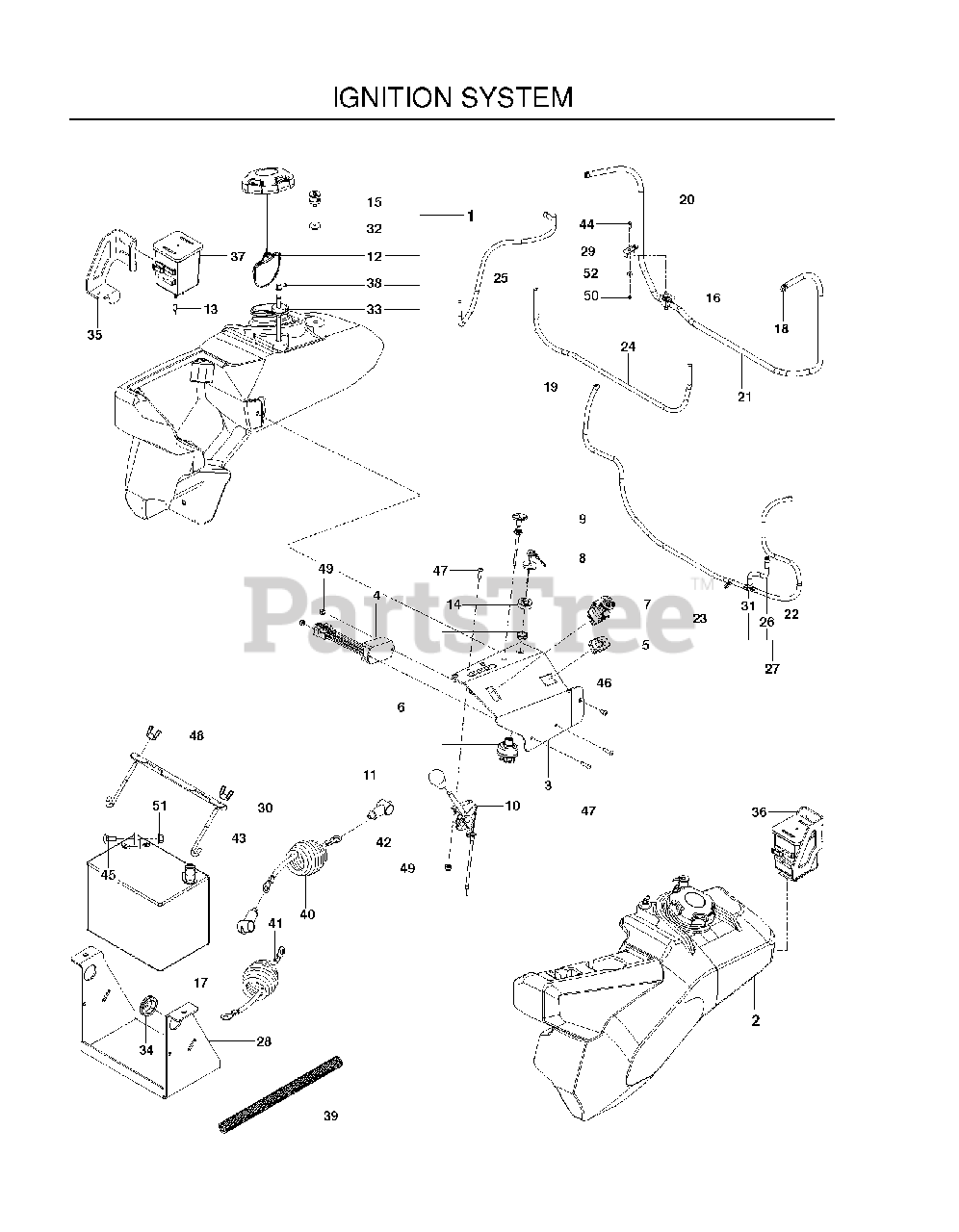

IGNITION SYSTEM Parts Diagram

  • Title

1

Dixon 576668602

No Description Available
(Superseded to 584280402)

Note: RT

$376.99

$

Usually ships in 3-10 days

0

2

Dixon 576668402

No Description Available
(Superseded to 589997302)

Note: LT

$423.99

$

Usually ships in 3-10 days

0

3

Dixon 529280202

No Description Available
(Superseded to 592979103)

$31.99

$

Usually ships in 3-10 days

0

4

Dixon 574514001

TIMER, SEAT

$120.99

$

In Stock, only 1 left!

0

5

Dixon 576179401

HOUR METER

$34.99

$

In Stock, Qty 6

0

6

Dixon 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

7

Dixon 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

8

Dixon 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

9

Dixon 574206901

CABLE, CHOKE, 48"
(Superseded to 531077202)

$31.99

$

In Stock, Qty 8

0

10

Dixon 574207001

CABLE, THROTTLE, 46"

$53.99

$

In Stock, only 3 left!

0

11

Dixon 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

12

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

$34.99

$

Usually ships in 3-10 days

0

13

Dixon 576978701

No Description Available

$3.99

$

Usually ships in 3-10 days

0

14

Dixon 539103178

COVER

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 576618101

VALVE, FUEL CHECK

$25.99

$

In Stock, Qty 13

0

16

Dixon 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

17

Dixon 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

18

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

19

Dixon 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

20

Dixon 577103901

No Description Available

$14.99

$

Usually ships in 3-10 days

0

21

Dixon 577103902

No Description Available
(Superseded to 587044838)

$6.99

$

Usually ships in 3-10 days

0

22

Dixon 576660603

HOSE, 3/16" VAPOR, 21"

$

$

Not available

23

Dixon 576660601

HOSE, VAPOR 3/16 X 39"

$

$

Not available

24

Dixon 576660604

HOSE, VAPOR 3/16 X 30"

$13.99

$

Usually ships in 3-10 days

0

25

Dixon 575437802

FUEL LINE 33"
(Superseded to 575437801)

$14.99

$

Usually ships in 3-10 days

0

26

Dixon 576660610

No Description Available

$

$

Not available

27

Dixon 576979001

No Description Available

$

$

Not available

28

Dixon 510029902

BRACKET, BATTERY, BLK

$84.99

$

Usually ships in 3-10 days

0

29

Dixon 577104002

BRACKET, VALVE, BLACK

$15.99

$

Usually ships in 3-10 days

0

30

Dixon 510030001

BRACKET, BATTERY MOUNT

$51.99

$

In Stock, only 1 left!

0

31

Dixon 574206602

No Description Available

$3.49

$

In Stock, only 1 left!

0

32

Dixon 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, Qty 5

0

33

Dixon 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

34

Dixon 539105974

RUBBER GROMMET

$

$

Not available

35

Dixon 576927001

No Description Available

Note: RT

$79.99

$

Usually ships in 3-10 days

0

36

Dixon 576926901

No Description Available

Note: LT

$56.99

$

Usually ships in 3-10 days

0

37

Dixon 532414114

CANNISTER, CARBON

$62.99

$

Usually ships in 3-10 days

0

38

Dixon 525865401

No Description Available

$34.99

$

Usually ships in 3-10 days

0

39

Dixon 574235301

LOOM, SPLIT, CONVOLUTED

$3.99

$

Usually ships in 3-10 days

0

40

Dixon 522718701

CABLE, POSITIVE, 55"

$26.99

$

In Stock, only 2 left!

0

41

Dixon 522710701

CABLE, NEG, 55"

$34.99

$

Usually ships in 3-10 days

0

42

Dixon 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

43

Dixon 510064001

HOOK, "J"

$

$

Not available

44

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

45

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

46

Dixon 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

47

Dixon 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

48

Dixon 539990997

WING NUT 1/4

$3.49

$

Usually ships in 3-10 days

0

49

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

50

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

51

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

52

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available
