DX 254 (966651201) - Dixon 54" Zero-Turn Mower (2011-01) IGNITION SYSTEM Parts Diagram

54" Zero-Turn Mower

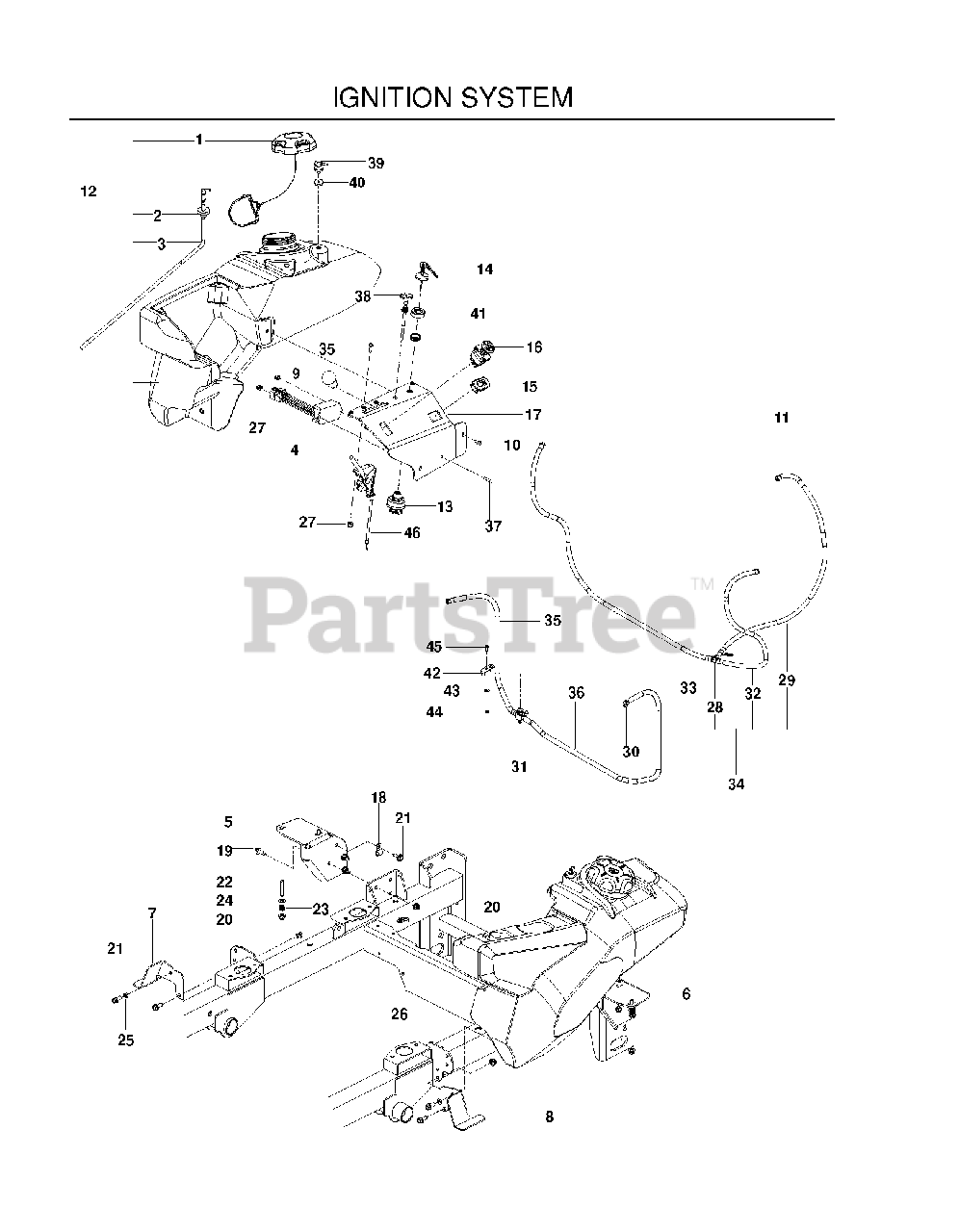

IGNITION SYSTEM Parts Diagram

  • Title
1

Dixon 575018101

CAP, FUEL
(Superseded to 575018103)

Note: w / TETHER

$34.99

$

Usually ships in 3-10 days

0

2

Dixon 539105245

RUBBER GROMMET

$4.99

$

In Stock, Qty 12

0

3

Dixon 525865401

No Description Available

$34.99

$

Usually ships in 3-10 days

0

4

Dixon 574514001

TIMER, SEAT

$120.99

$

In Stock, only 1 left!

0

5

Dixon 529279603

No Description Available

Note: RT RR

$72.99

$

Usually ships in 3-10 days

0

6

Dixon 529279703

No Description Available

Note: LT RR

$72.99

$

Usually ships in 3-10 days

0

7

Dixon 529279902

No Description Available
(Superseded to 529279903)

Note: RT FRT

$68.99

$

Usually ships in 3-10 days

0

8

Dixon 529280002

No Description Available
(Superseded to 529280003)

Note: LT FRT

$60.99

$

Usually ships in 3-10 days

0

9

Dixon 539132624

KNOB - SHIFT

$7.99

$

In Stock, Qty 6

0

10

Dixon 539114341

SCR #10-24 X 3/8 SKT HD BLK OX

$4.99

$

In Stock, only 3 left!

0

11

Dixon 575436501

CLAMP, HOSE

$6.49

$

In Stock, only 4 left!

0

12

Dixon 576668602

No Description Available
(Superseded to 584280402)

Note: RT

$376.99

$

Usually ships in 3-10 days

0

Dixon 576668402

No Description Available
(Superseded to 589997302)

Note: LT

$423.99

$

Usually ships in 3-10 days

0

13

Dixon 574455401

SWITCH, IGNITION, INDAK

$34.99

$

Usually ships in 3-10 days

0

14

Dixon 574455501

KEY, IGNITION

$6.99

$

Usually ships in 3-10 days

0

15

Dixon 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

16

Dixon 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

17

Dixon 529280202

No Description Available
(Superseded to 592979103)

$31.99

$

Usually ships in 3-10 days

0

18

Dixon 539109867

DOUBLE TUBE CLAMP

$6.99

$

Usually ships in 3-10 days

0

19

Dixon 539113226

BLT 5/16-18 X 1 THRD FORM ZD
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

21

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

22

Dixon 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

23

$4.99

$

In Stock, only 1 left!

0

24

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

25

Dixon 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available

26

Dixon 505280001

TIE WRAP, 8-3/8", W/CLIP

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539976977

NUT 10-24 NYLOC

$

$

Not available

28

Dixon 574206602

No Description Available

$3.49

$

In Stock, only 1 left!

0

29

Dixon 576660604

HOSE, VAPOR 3/16 X 30"

$13.99

$

Usually ships in 3-10 days

0

30

Dixon 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

31

Dixon 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

32

Dixon 576660603

HOSE, 3/16" VAPOR, 21"

$

$

Not available

33

Dixon 576660601

HOSE, VAPOR 3/16 X 39"

$

$

Not available

34

Dixon 576547701

No Description Available

$43.99

$

Usually ships in 3-10 days

0

35

Dixon 577103901

No Description Available

$14.99

$

Usually ships in 3-10 days

0

36

Dixon 577103902

No Description Available
(Superseded to 587044838)

$6.99

$

Usually ships in 3-10 days

0

37

Dixon 574822701

SCR #10-24 X .75 SKT HD BLK

$4.99

$

In Stock, Qty 6

0

38

Dixon 574206901

CABLE, CHOKE, 48"
(Superseded to 531077202)

$31.99

$

In Stock, Qty 8

0

39

Dixon 576618801

No Description Available

$12.99

$

Usually ships in 3-10 days

0

40

Dixon 576618201

GROMMET, CHECK VALVE
(Superseded to 584648201)

$4.99

$

In Stock, only 4 left!

0

41

$4.99

$

Usually ships in 3-10 days

0

42

Dixon 577104002

BRACKET, VALVE, BLACK

$15.99

$

Usually ships in 3-10 days

0

43

Dixon 539990598

WASHER 1/4 FLAT

$

$

Not available

44

Dixon 539108120

JAM NUT 1/4C
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

45

Dixon 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

46

Dixon 574207001

CABLE, THROTTLE, 46"

$53.99

$

In Stock, only 3 left!

0
