DX 161 BF (967003102) - Dixon 61" Zero-Turn Mower (2013-11) FRAME Parts Diagram

61" Zero-Turn Mower

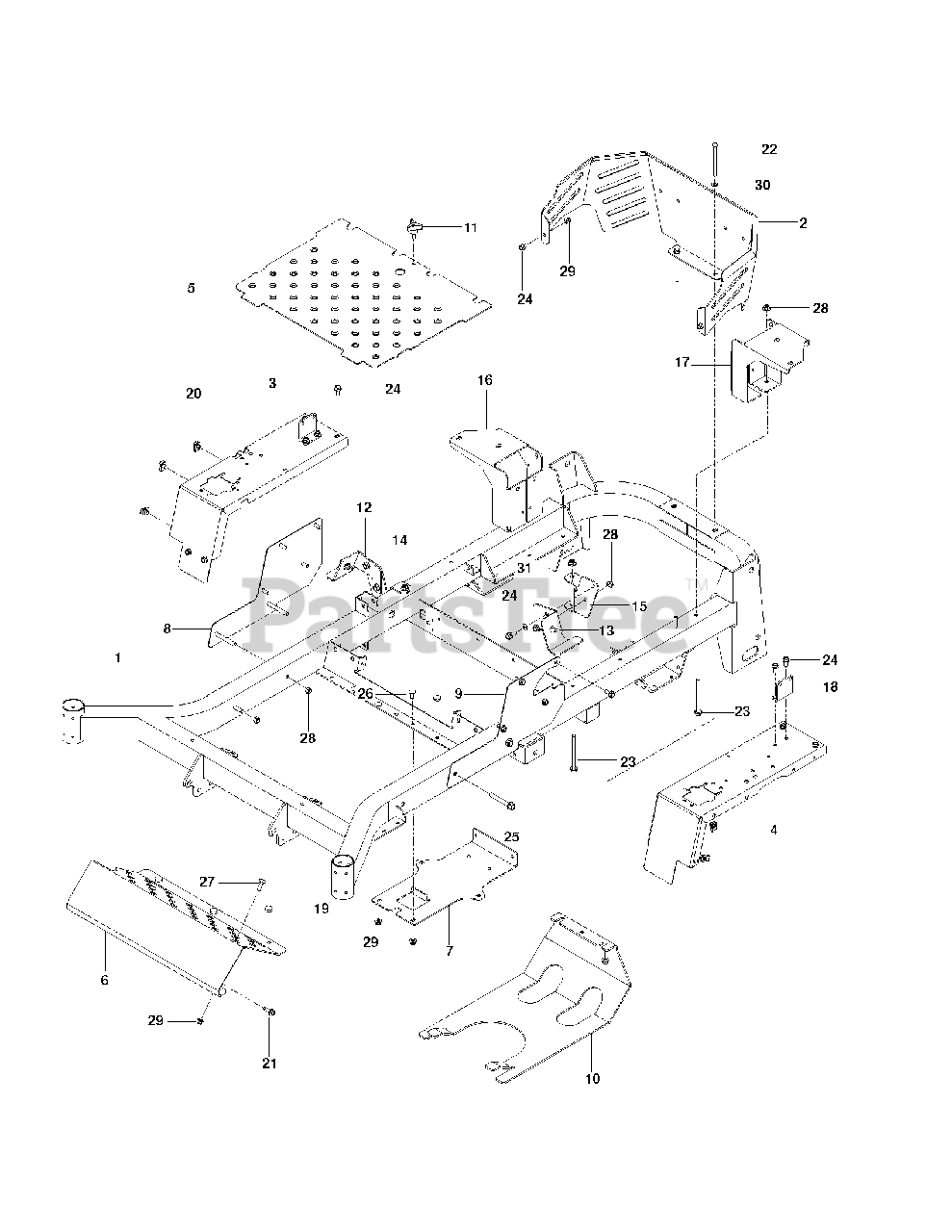

FRAME Parts Diagram

  • Title

1

Dixon 577088402

No Description Available
(Superseded to 579325202)

Note: FRAME W /SAFETY DECALS

$

$

Not available

2

Dixon 576878602

No Description Available

$218.99

$

Usually ships in 3-10 days

0

3

Dixon 577256903

No Description Available

$70.99

$

Usually ships in 3-10 days

0

4

Dixon 577256803

No Description Available

$103.99

$

Usually ships in 3-10 days

0

5

Dixon 539132845

FLOOR PAN W/DECALS

$80.99

$

Usually ships in 3-10 days

0

6

Dixon 521941302

PLATE, FOOT REST - RAM DK BLUE

$121.99

$

Usually ships in 3-10 days

0

7

Dixon 575017202

PLATE, BATTERY, BLACK

$60.99

$

Usually ships in 3-10 days

0

8

Dixon 539131687

SIDE, RT, BL

$21.99

$

Usually ships in 3-10 days

0

9

Dixon 539132179

SIDE, LT, BL

$21.99

$

Usually ships in 3-10 days

0

10

Dixon 521921802

GUARD, SKID, BLUE
(Superseded to 521921805)

$96.99

$

Usually ships in 3-10 days

0

11

Dixon 539104411

KNOB W/STUD
(Superseded to 597783101)

$4.99

$

In Stock, Qty 20+

0

12

Dixon 529279903

MOUNT, TANK, RT-BLK

$68.99

$

Usually ships in 3-10 days

0

13

Dixon 529280003

MOUNT, TANK, LT-BLK

$60.99

$

Usually ships in 3-10 days

0

14

Dixon 576939002

SUPPORT FRONT TANK R BLK

$

$

Not available

15

Dixon 576939004

SUPPORT FRONT TANK L BLK

$40.99

$

Usually ships in 3-10 days

0

16

Dixon 576938902

SUPPORT REAR TANK R BLK

$91.99

$

Usually ships in 3-10 days

0

17

Dixon 576938904

SUPPORT REAR TANK L BLK

$91.99

$

Usually ships in 3-10 days

0

18

Dixon 577265801

No Description Available

$

$

Not available

19

Dixon 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

20

Dixon 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 9

0

21

Dixon 539113226

No Description Available
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

23

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 525464701

HHFS 5/16-18 X 3/4

$3.99

$

In Stock, only 1 left!

0

25

Dixon 539131781

HHFS 3/8-16 X 2 3/4

$5.99

$

In Stock, only 2 left!

0

26

Dixon 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

27

Dixon 539990208

RHSNB 5/16C X 1

$3.99

$

Usually ships in 3-10 days

0

28

Dixon 539200282

NUT HEX 3/8-16 NYLON, THIN
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

29

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

30

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

31

Dixon 539109600

WASH 5/16 DISC SPRING ZD

$

$

Not available
