DX 152 BF (966664301) - Dixon 52" Zero-Turn Mower (2013-07) WHEELS TIRES Parts Diagram

52" Zero-Turn Mower

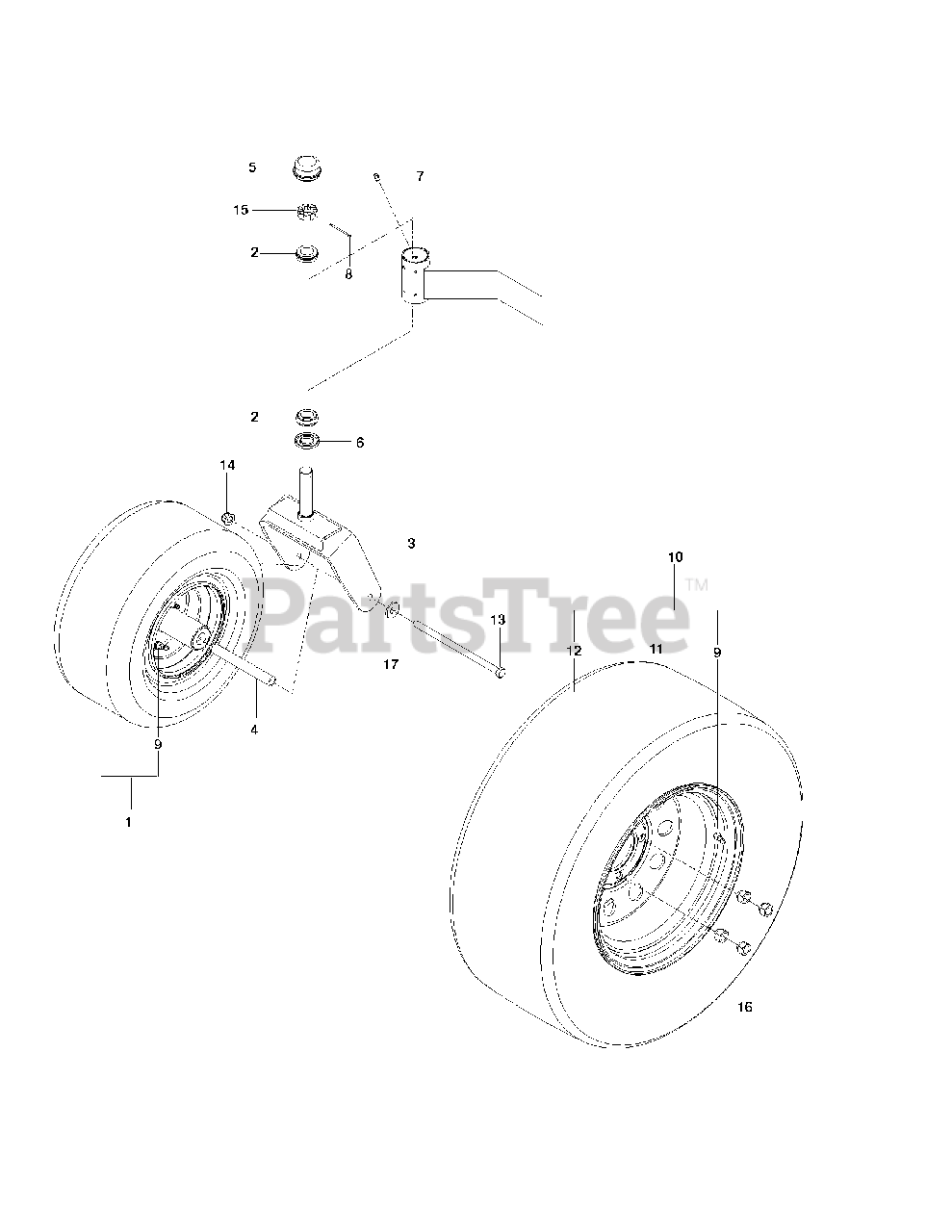

WHEELS TIRES Parts Diagram

  • Title

1

Dixon 575348701

ASM, TIRE
(Superseded to 581199501)

$194.99

$

Usually ships in 3-10 days

0

2

Dixon 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, only 1 left!

0

3

Dixon 575329203

YOKE, CASTER, BLUE
(Superseded to 586921905)

$

$

Not available

4

Dixon 575334901

SPACER, PIVOT

$24.99

$

In Stock, Qty 8

0

5

Dixon 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

6

Dixon 539102851

SEAL

$7.99

$

In Stock, only 2 left!

0

7

Dixon 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

8

Dixon 539102889

OBSOLETE - COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

9

Dixon 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

10

Dixon 521964101

ASSEMBLY, TIRE 23 X 9.20-12

$569.99

$

Usually ships in 3-10 days

0

11

Dixon 521964102

RIM 12X7, 1.5" NEG OFFSET

$218.99

$

Usually ships in 3-10 days

0

12

Dixon 539112599

TIRE, 23 X 9.50-12

$194.99

$

Usually ships in 3-10 days

0

13

Dixon 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

14

Dixon 521991101

NUT, 1/2-13 HEX FLG NYLOC ZD
(Superseded to 521991102)

$4.99

$

In Stock, Qty 7

0

15

Dixon 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

16

Dixon 539101173

LUG NUT 1/2F

$

$

Not available

17

Dixon 539109554

WASH USS FLAT 1/2

$

$

Not available
