DX 148 BF (966664101) - Dixon 48" Zero-Turn Mower (2013-07) STEERING Parts Diagram

48" Zero-Turn Mower

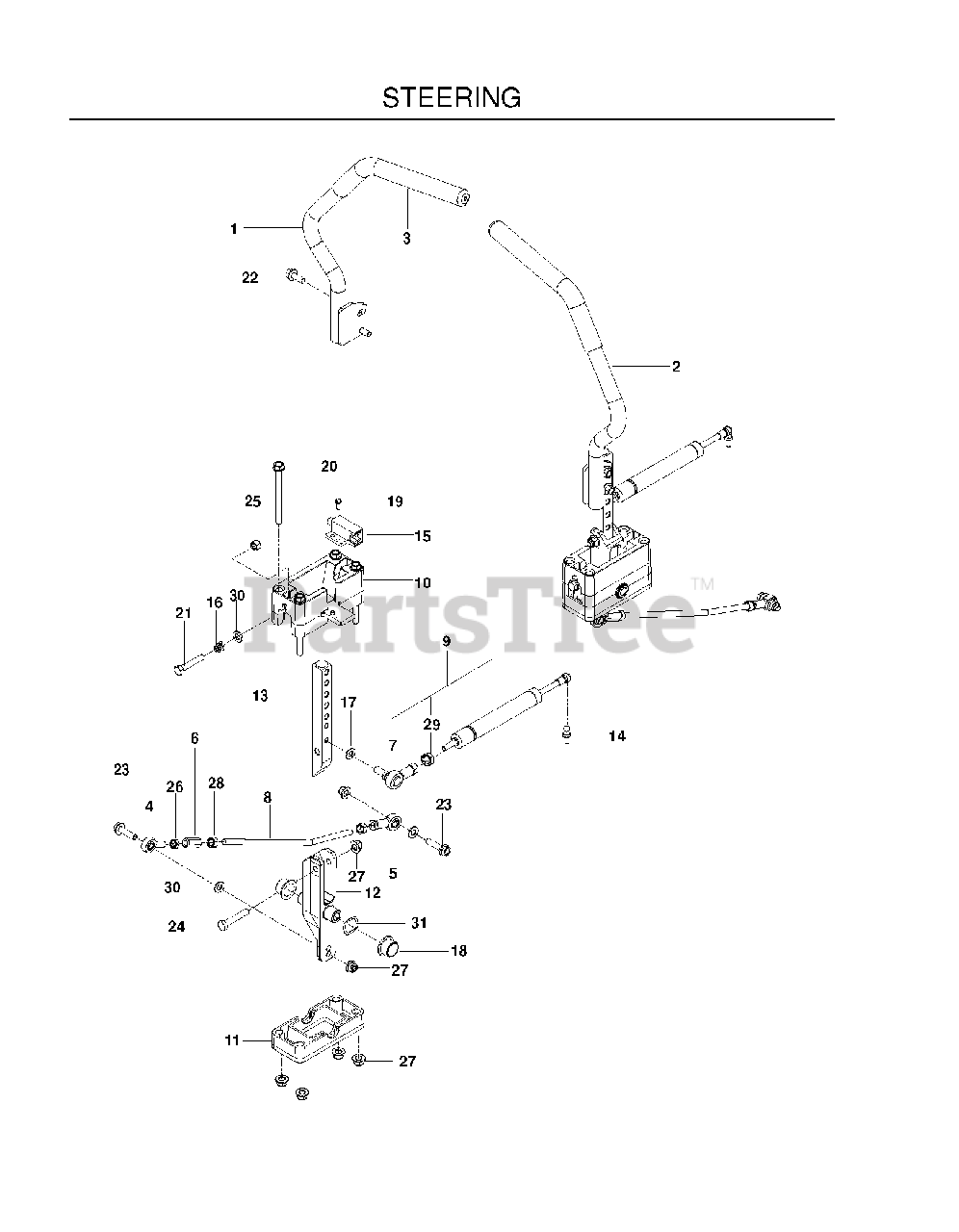

STEERING Parts Diagram

  • Title

1

Dixon 574262701

LEVER, W/GRIP, RT

Note: RT

$136.99

$

Usually ships in 3-10 days

0

2

Dixon 574262702

LEVER, W/GRIP, LT

Note: LT

$125.99

$

Usually ships in 3-10 days

0

3

Dixon 539130894

GRIP - DRIVE LEVER

$9.99

$

In Stock, only 3 left!

0

4

Dixon 539116690

ROD END LH
(Superseded to 588692502)

Note: LT

$10.99

$

Usually ships in 3-10 days

0

5

Dixon 539115729

RH ROD END
(Superseded to 579764601)

Note: RT

$9.49

$

Usually ships in 3-10 days

0

6

Dixon 539116689

ROD END COUPLER

$

$

Not available

7

Dixon 539131749

ROD END

$10.99

$

Usually ships in 3-10 days

0

8

Dixon 574811401

ROD, CONTROL

$14.99

$

Usually ships in 3-10 days

0

9

Dixon 516020301

ASSEMBLY, DAMPENER
(Superseded to 597084601)

$159.99

$

Usually ships in 3-10 days

0

10

Dixon 539131517

BLOCK, UPPER

$30.99

$

In Stock, only 1 left!

0

11

Dixon 539131519

BLOCK, LOWER

$15.99

$

Usually ships in 3-10 days

0

12

Dixon 510113203

LEVER, CONTROL

$72.99

$

In Stock, only 1 left!

0

13

Dixon 574269401

LEVER, MOTION

$27.99

$

Usually ships in 3-10 days

0

14

Dixon 539110607

10MM BALL STUD

$4.99

$

Usually ships in 3-10 days

0

15

Dixon 539101080

SWITCH, INTERLOCK

$17.99

$

Usually ships in 3-10 days

0

16

Dixon 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0

17

Dixon 539990187

WASHER 5/16 LOCK
(Superseded to 596238801)

$3.99

$

In Stock, only 3 left!

0

18

Dixon 539131518

BEARING, FLANGE

$11.99

$

In Stock, Qty 5

0

19

Dixon 539991034

SCREW #10 X 1/2 SELF TAPPING

$3.99

$

Usually ships in 3-10 days

0

20

Dixon 539131780

HHFS 5/16-18 X 3 3/4

$3.99

$

Usually ships in 3-10 days

0

21

Dixon 539108394

HCS 5/16-18X1-3/4 TPBLT

$3.99

$

Usually ships in 3-10 days

0

22

Dixon 525612801

HHFS 3/8-16 X 1 GRD 5 ZD

$

$

Not available

23

Dixon 525544001

HHFS 5/16-18 X 1.25 TPBLT GD 5

$3.99

$

Usually ships in 3-10 days

0

24

Dixon 539990669

HCS 5/16C X 1 3/4
(Superseded to 874780528)

$7.49

$

In Stock, only 2 left!

0

25

Dixon 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

26

Dixon 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

27

Dixon 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

28

Dixon 539990223

NUT 5/16F

$3.99

$

Usually ships in 3-10 days

0

29

Dixon 539127046

NUT M8 X 1.25 STD HEX

$3.99

$

Usually ships in 3-10 days

0

30

Dixon 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

31

Dixon 539133007

WASHER, .825 X 1.087, WAVE

$4.99

$

In Stock, only 3 left!

0
